MOTU HDX-SDI Thunderbolt 1U Video Interface, 16 x 16
Free Shipping

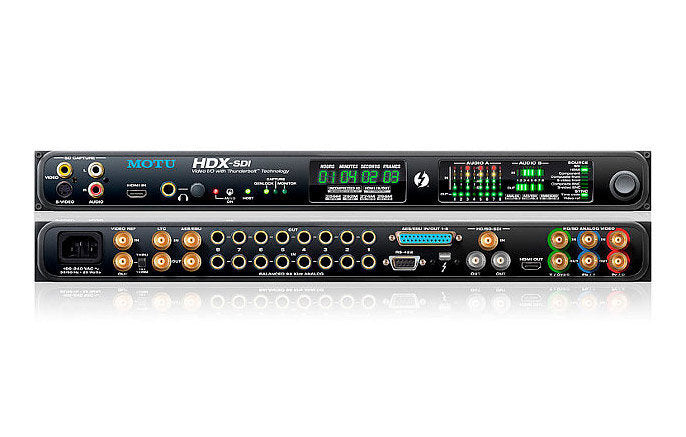

MOTU HDX-SDI Thunderbolt 1U Video Interface, 16 x 16

MOTU HDX-SDI Thunderbolt 1U Video Interface, 16 x 16

Availability: Pre-Order | On Request | Special Order Arrangement
Expected To Arrive at Music Bliss: Arrive 3-4 weeks


Product Description

MOTU HDX-SDI Thunderbolt 1U Video Interface, 16 x 16 (HDXSDI)

MOTU HDX-SDI Thunderbolt 1U Video Interface, 16 x 16

Streamline your workflow with MOTU's full-featured, diminutively sized HDX-SDI video interface. This intuitive little A/V ripper captures uncompressed 1920 x 1080 video directly from your SD camcorder or professional camera and zips it over to your video editor of choice, eliminating the need to film, render, and import clips manually. And with support for up to 16 channels of TRS or AES/EBU-sourced 96kHz audio, the HDX-SDI makes it easy to add professional scores and soundtracks to your films, commercials, music videos, and YouTube clips. Compatible with Mac and Windows environments, and with native support for Avid, Final Cut Pro, and Premiere Pro, the MOTU HDX-SDI video interface comes highly recommended by Music Bliss resident audio-visual pros for no-fuss HD video importing with audio support.

  • Capture clips directly from your camera into your compatible video editing software
  • Stunning 1920 x 1080 support
  • SD/HD capture and playback
  • HDMI in/out
  • 10-bit color depth - broadcast quality
  • Capture up to 16 channels of 96kHz audio: TRS, AES/EBU digital, or embedded
  • Thunderbolt port for blazing transfer speeds
  • Mac and PC compatible
  • 1U rackmount chassis
  • Front LEDs for live signal monitoring
  • Supports Final Cut Pro, Premiere Pro, and Avid Media Composer 6.5/Symphony 6.5/NewsCutter 10.5
  • Video formats: 1080p30, 1080PsF, 1080p, 1080i, 720p

  • Video Formats : SD (576i25, 486i29.97), HD 720 (p23-p60), HD 1080 (p23.976-p30, PsF23.976-PsF30, i25, i29.97, i30)
  • Sync : Video Reference (In, Out/Thru), LTC (In, Out), RS-422 (machine control), VITC, D-VITC
  • Video I/O: HD/SD-SDI, HDMI, HD/SD, S-Video, Composite (10-bit)
  • Audio Inputs : 8 x 1/4" TRS, 1 x Dual RCA Stereo, 1 x DB-25 (8 channel AES/EBU), 1 x BNC (AES)
  • Audio Outputs : 8 x 1/4" TRS, 1 x 1/4" (headphones), 1 x DB-25 (8 channel AES/EBU), 1 x BNC (AES)
  • Form Factor : 1U Rackmount

Dimension Packaging Weight : 4.8 kg
