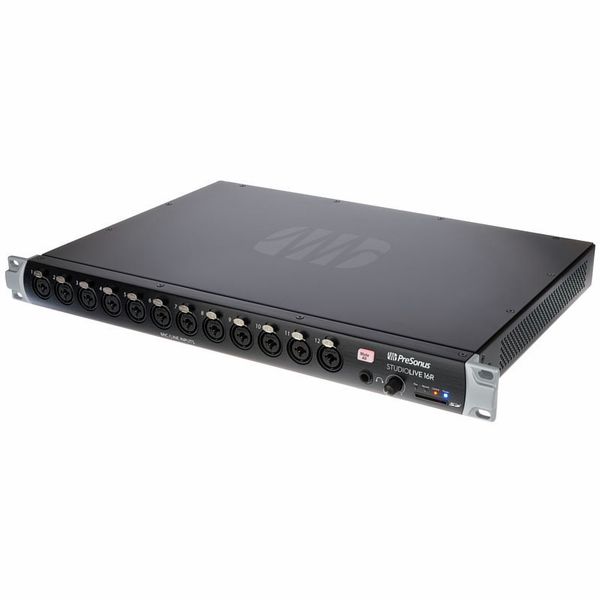

PreSonus StudioLive 16R 16-channel Rackmount Digital Mixer

The StudioLive® 16R digital mixer is four audio tools in a single rackspace. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 36-channel (18x18) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.

Inside the StudioLive 16R, the single-core PreSonus® FLEX DSP Engine powers 18 mixing channels, 10 mix buses, and 130 simultaneous processors, including 2 stereo effects and Fat Channel plug-in models on every input channel and mix bus. This is a true 16-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using Universal Control. Universal Control was designed to make mixing on a touch screen as intuitive as mixing on faders.

An integrated 36-channel (18x18) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 16R and inside Studio One®, providing the ultimate mixing and recording flexibility.

FEATURES

• Powered by the new single-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 18 input-channel digital rack mixer with 16 digitally controlled XMAX mic/line inputs, 2 FLEX FX returns, 10 mix buses, 6 FlexMixes (Aux, Subgroup, Matrix), 2 dedicated FLEX FX buses, Stereo Main bus
• 130 simultaneous processors: HPF, Gate/Expander, Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
• 31-band graphic EQ
• 2 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• 6 DCAs to control groups of channels
• 36-channel (18x18) recording over USB
• Onboard stereo SD recorder with true Virtual Soundcheck mode
• AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
• Monitor Mix and Stage Box modes for use with StudioLive® Series III console mixers
• Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
• Remote control every mix function from your computer, iPad®, or Android™ tablet with Universal Control (included)
• Put your musicians' monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
• Capture® 3.0 multitrack software included
• Advanced Studio One® integration (12 Months Studio One Pro + Included)
• Ableton® Live Lite included


Studio One Pro 7 DAW Software Included.

Your hardware registration includes a perpetual License to Studio One Pro.

Software must be registered with PreSonus by 6/30/25. Visit the PreSonus Promo Webpage
