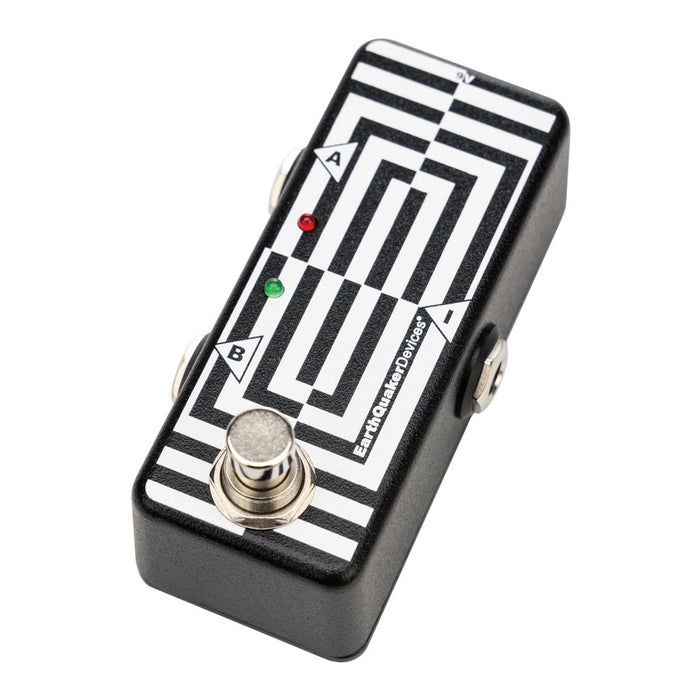

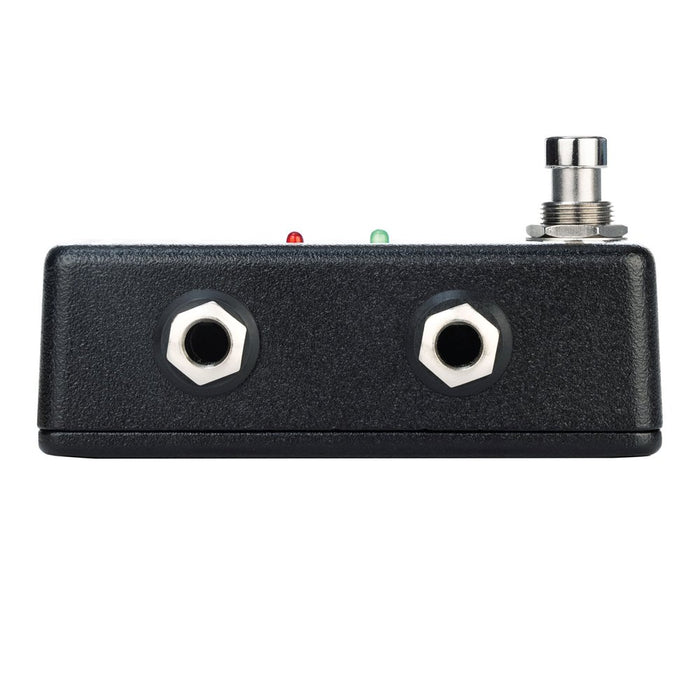

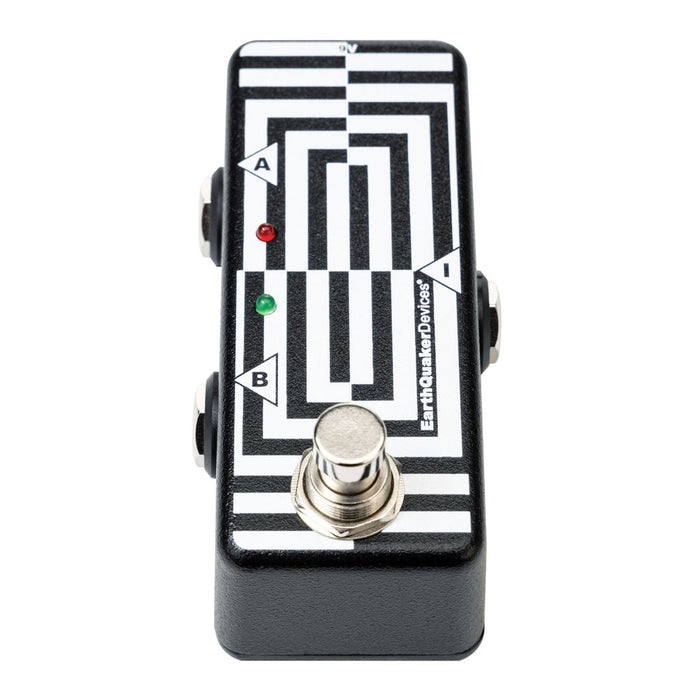

EarthQuaker Devices Buffer/Splitter Pedal

A buffer is an important tool to combat tone loss with long cable runs or in signal chains running lots of true bypass pedals. The EarthQuaker Devices Buffer/Splitter uses the same great high 1 Mohm input impedance and low 100 ohm output impedance found in our Buffer/Preamp to restore your tonal integrity! This buffer is designed to both maintain high end and give your low end a subtle, yet powerful, little kick for some added dimension. What’s better than a single output buffer? A dual output buffer, that’s what! Use the EarthQuaker Devices Buffer/Splitter to split your signal into two and send them anywhere you like! Two amps! Turn a mono signal into a stereo signal! Send one output to your effects and use the other as a dry-through! Remove your tuner from the signal path… you get the idea!

FEATURES

• Preserve amp and guitar tone across busy pedalboards and long cable setups

• Improves strength, clarity, and high/low end of your signal thanks to high 1-Mohm input impedance and low 100-ohm output impedance

• Perfect for the end of your chain, but works well in any position on your pedalboard

• Dual outputs allow you to send your signal to multiple destinations

• Small size fits perfectly into tight spaces on your pedalboard

SPECIFICATIONS

• Pedal Type:    Splitter/Dual output Buffer

• Analog/Digital:    Analog

• Inputs:    1 x 1/4"

• Outputs:    2 x 1/4"

• Power Source:    9V DC power supply (sold separately)

• Height:    1.375"

• Width:    1.625"

• Depth:    3.68"

• Weight:    0.41 lbs.
