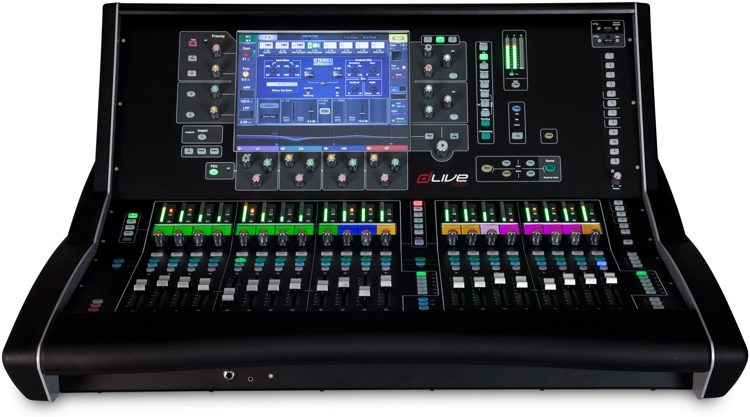

Allen & Heath dLive S3000 Control Surface for MixRack (S-3000)

Harnessing the full potential of digital mixing, the Allen & Heath dLive S3000 control surface rejects the typical faux-analog console experience in favor of intuitive pinch, swipe, drag, and drop gestures. A 12" touchscreen, 20 faders, and six assignable one-knob/one-function rotary controls provide you with at-a-glance visual feedback and immediate tactile command over your mix. Using the S3000 is a piece of cake, thanks to easily assignable inputs, clearly named virtual scribble strips, and customizable SoftKeys. Built from high-grade metal and packed with dual redundant, hot-swappable power supply capability, the Allen & Heath dLive S3000 control surface performs reliably under the most demanding of circumstances.

FEATURES

• Control surface for dLive mixing systems
• 12" touchscreen delivers intuitive control and at-a-glance visual feedback
• 20 faders and 3 pages of 6 rotary controllers provide superb tactile control
• Assignable inputs, virtual scribble strips, and 26 customizable SoftKeys for ease of use
• Dedicated multimode EQ view for easy sound shaping
• Configurable widget areas provide you with quick access to scenes, meters, effects, and more
• Dual redundant hot-swappable power supply capability offers amazing reliability
• Rugged high-grade metal construction

SPECIFICATIONS

• Type:Digital Console
• Channels:20 channel faders with 6 layers
• Inputs - Mic Preamps:8 x XLR
• Phantom Power:8
• Outputs - Direct:8 x XLR (line level)
• Outputs - Other:1 x 1/4" (headphones), 1 x 1/8" (headphones)
• Inputs - Digital:2 x XLR (AES3)
• Outputs - Digital:3 x XLR (AES3)
• Busses/Groups:64 bus internal architecture (including all groups, aux, matrix, mains, effects)
• Data I/O:2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports
• USB:3 x USB Type A
• Computer Connectivity:Ethernet, USB
• I/O Expansion Slots:2 x card slots (128x128 channels each, iLive/GLD option cards)
• Word Clock:In, Out
• Faders:20 x motorized faders
• EQ Bands:4-band parametric EQ
• Effects:16 RackFX
• Height:16.3"
• Depth:28.7"
• Width:34.3"
• Weight:62 lbs.
