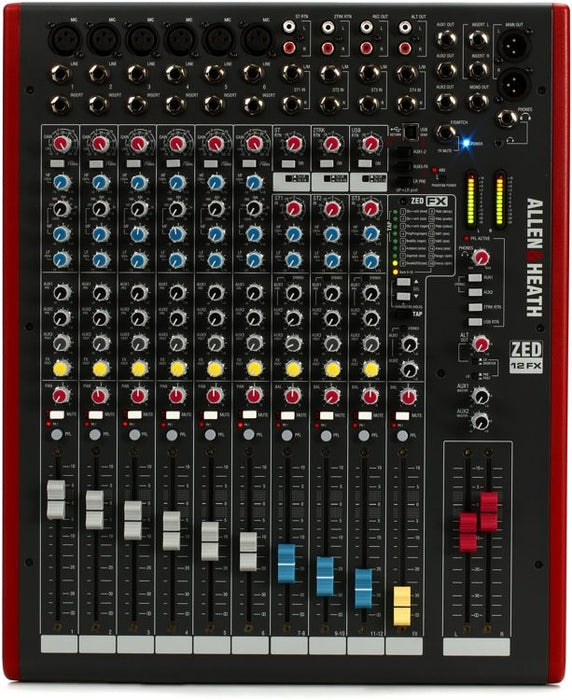

Allen & Heath ZED-12FX Mixer with USB and Effects (ZED12FX)

A solid mixer with great effects! The Allen & Heath ZED-12FX is the perfect center to your live rig — and it's also ready to rock in the studio. First of all, the ZED-12FX gives you all the connections you need to hook up a small band, a duo, or a solo performer. Thanks to the 6 mic/line channels (these preamps are awesome, by the way) you can connect all the mics and DI boxes you need. Plus you've got three dual-stereo channels available, each with a gain control and a 2-band EQ. The FX in the name, though, is what takes the cake. Here, you can get tweaky with the ZED-12FX's 16 separate effects, for nailing the perfect, polished live sound.

VIDEO

FEATURES

• 12-channel mixer with 6 mic/line inputs and 3 stereo line channels
• Inserts on all mono channels
• Configurable USB stereo audio input/output
• 100mm smooth-action faders
• Features 4 auxiliary sends: 2 pre, 1 post, and 1 post/FX
• 6 channels with DuoPre microphone preamplifiers and highpass filters
• Musical 3-band EQ on 6 main channels; 2-band EQ on the stereo channels
• 16 built-in 24-bit effects, including delays, reverbs, flange, and chorus
• 1/4" and 1/8" headphone outputs

SPECIFICATIONS

• Type:Analog
• Channels:12
• Computer Connectivity:USB (2 x 2)
• Faders:12 x 100mm
• Inputs - Mic Preamps:6 x XLR
• Phantom Power:6
• Inputs - Line:6 x 1/4" (CH 1-6), 6 x 1/4" (Ch 7-12 Stereo), 4 x RCA (Ch 7-10 Stereo)
• Outputs - Main:2 x XLR (Main), 1 x 1/4" (Mono)
• Outputs - Other:1 x 1/4" (Mono out), 2 x RCA (Alt out), 2 x RCA (Rec out)
• Aux Sends:2 x Pre, 1 x Post, 1 x FX Post
• Send/Return I/O:3 x 1/4"
• Busses/Groups:Alt
• Channel Inserts:Yes (CH 1-6)
• Inserts:2 x 1/4" (Main left, right)
• Headphones:1 x 1/4", 1 x 1/8"
• USB:1 x Type B
• EQ Bands:3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-12 Stereo)
• Effects:Yes
• Rackmountable:Yes
• Height:3.9"
• Width:15.2"
• Depth:18.3"
• Weight:23.1 lbs.
