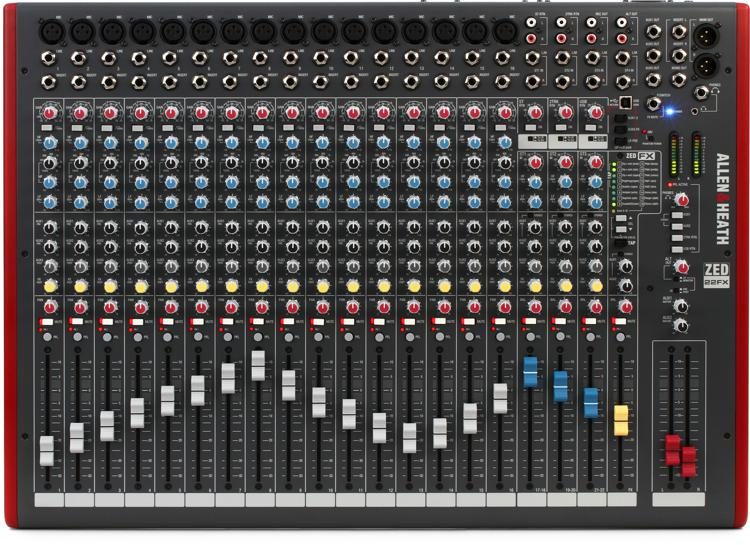

Allen & Heath ZED-22FX Mixer with USB and Effects (ZED22FX)

A solid mixer with great effects! The ZED-22 FX is the perfect center to your live rig - and it's also ready to rock in the studio. First of all, the Allen & Heath ZED-22 FX gives you all the connections you need to hook up a small band, duo, or solo performer. Thanks to the 16 mic/line channels you can connect all the mics and DI boxes you need. Plus you've got three dual stereo channels available, each with a gain and 2-band EQ control. The FX in the name, though, is what takes the cake. Here, you can get tweaky with 16 separate effects for nailing the perfect, polished live sound with the ZED-22FX.

VIDEO

FEATURES

• 22-channel mixer with 16 mic/line inputs and three dual stereo channels
• USB audio connection for immediate recording
• Includes a free copy of SONAR LE recording software for PC
• Feature four aux sends, 1 and 2 are prefade, 3 and 4 are post fade
• High-quality DuoPre microphone preamplifiers with huge 69dB gain range
• Musical 3-band EQ on 16 main channels, 2-band EQ on the stereo channels
• Three switches for varying your send/return configurations for recording
• 16 built-in effects, including delays, reverbs, flange, and chorus

SPECIFICATIONS

• Type:Analog
• Channels:22
• Computer Connectivity:USB (2 x 2)
• Faders:22 x 100mm
• Inputs - Mic Preamps:16 x XLR
• Phantom Power:16
• Inputs - Line:6 x TRS (CH 1-6), 6 x TRS (CH 17-22 Stereo)
• Outputs - Main:2 x XLR (Main), 1 x TRS (Mono)
• Outputs - Other:2 x RCA (Alt), 2 x RCA (Rec)
• Aux Sends:2 x Pre, 1 x Post, 1 x Post/FX
• Send/Return I/O:3 x TRS, 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
• Channel Inserts:Yes (CH 1-16)
• Headphones:1 x 1/4", 1 x 1/8"
• USB:1 x Type B
• EQ Bands:3-band, Sweepable Mid (CH 1-16), 2-band (CH 17-22 Stereo)
• Effects:Yes
• Height:3.9"
• Width:25.4"
• Depth:18.3"
• Weight:23.1 lbs.
