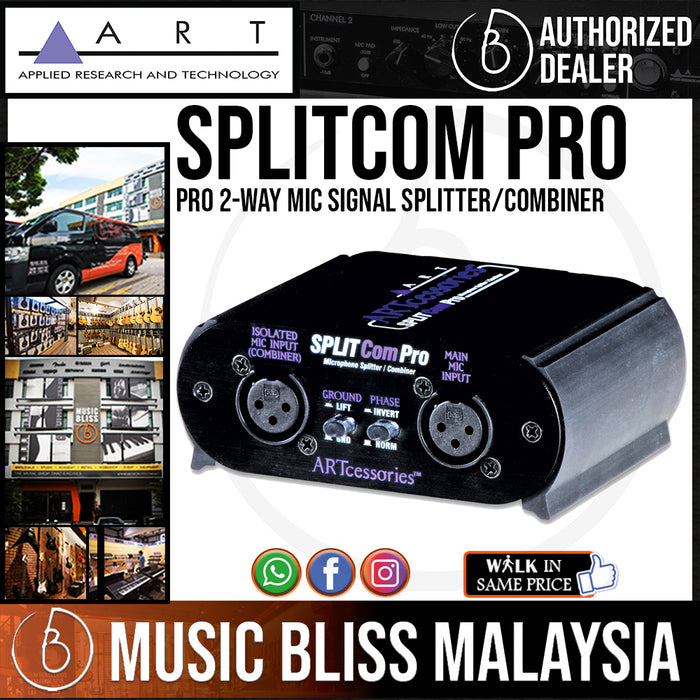

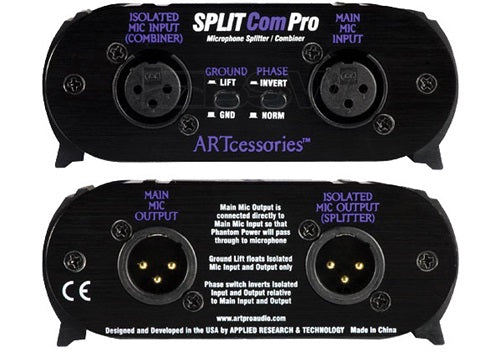

ART SPLITCom Pro 2-way Mic Signal Splitter/Combiner with Phase Invert Switch and Direct Out (SPLITComPro)
The ART SPLITCom Pro can be used to split or combine low impedance mic signals, and it's packed into a tough, compact enclosure that's easy to pack into your sound-reinforcement toolbox. Use the SPLITCom Pro's direct-coupled output and isolated transformer output to split a mic signal into two, or use it as a combiner to bring in two mics and pass one signal. It's a great way to conserve mixer inputs! This unit's rugged metal enclosure means it's built to take the rigors of day-in/day-out live use. You get two units in one with the SPLITCom Pro!
Low distortion with wide frequency response
Two functions in one box: combines and/or splits
Phase invert switch for subtractive combining
Galvanic isolation to block phantom power between channels
Ground lift switch to reduce noise due to ground loops
20Hz to 150kHz +/- 0.2 @ 0dBu
Total Harmonic Distortion
<0.0007% from 20Hz to 20kHz at 0dBu input
Typical Driving Source Dist.
<10 degrees @ 20 to 150kHz (reference 1kHz)
Typical Output Load Impedance
1.85" H x 4.6" W x 3.5" D (47mm x 117mm x 89mm
0.75 lbs (0.32 kg)
All of the measurements made from the ISOLATED MIC OUTPUT with PHASE switch out (NORM) and a 150 balanced source feeding the MAIN MIC INPUT and a 1k load connected to the ISOLATED MIC OUTPUT to simulate a typical "real world" microphone and mic preamplifier. 0dBu = 0.775VRMS
