ART SPLITMix4 4-channel Passive Mixer/Splitter with 4 Stereo 1/4" Input Channels and 1 Stereo 1/4" Output Channel (SPLITMix 4)

Item ID: MB-SplitMix4
RM260.00
RM220.00
Save 15%
Instant Savings: RM40.00 ( 0% GST)

Availability: In Stock! Ready To Ship.

Estimated Shipping Fees - calculating...


ART SPLITMix4 4-channel Passive Mixer/Splitter with 4 Stereo 1/4" Input Channels and 1 Stereo 1/4" Output Channel (SPLITMix 4)

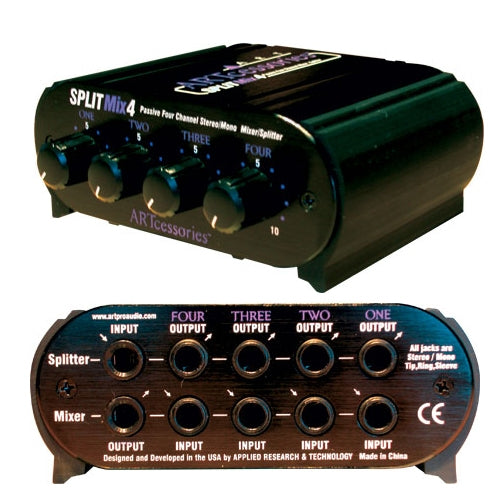

The SPLITMix4 is a 4-channel passive mixer that's equipped with four stereo input channels and one stereo output, all on 1/4" connectors. You can mix four stereo input channels down to one stereo output, split a stereo input channel to four stereo output channels, or combine these configurations to meet nearly any need. The SPLITMix4's independent stereo level controls provide over 90dB of attenuation per channel. Designed primarily as a line-level mixer for medium input/output impedances, the SPLITMix4 features a compact desktop-ready format.


FEATURES
  • 100% passive design
  • Four stereo input channels and one stereo output on 1/4" TRS
  • Independent stereo level controls on each channel
  • Offers over 90dB of attenuation
  • Frequency Response: 20Hz-20kHz, +/-1dB
  • THD: <0.005% at 1kHz (typical)
  • Phase Response: <10 degrees at 20kHz
  • Input/Output Connections: 1/4-inch TRS stereo
  • Input Impedance: 25k -100k Ohms
  • Output Impedance: 1k — 4k Ohms
  • Insertion Loss: 12dB (typical)
  • Maximum Attenuation: >90dB (typical)
  • Channel Isolation: >90dB (typical)
  • Power Requirements: None (fully passive)
  • Dimensions (HxWxD in) : 1.85 x 4.6 x 4.1
  • Dimensions (HxWxD mm) : 47 x 117 x 104
  • Weight: 0.84 lbs.

SPECIFICATIONS
  • Type:Analog
  • Channels:4
  • Inputs - Line:1 x 1/4" TRS (Splitter), 4 x 1/4" TRS (Mixer)
  • Outputs - Main:1 x 1/4" TRS (Mixer), 4 x 1/4" TRS (Splitter)
  • Height:1.85"
  • Width:4.6"
  • Depth:4.1"
  • Weight:.84 lbs.
