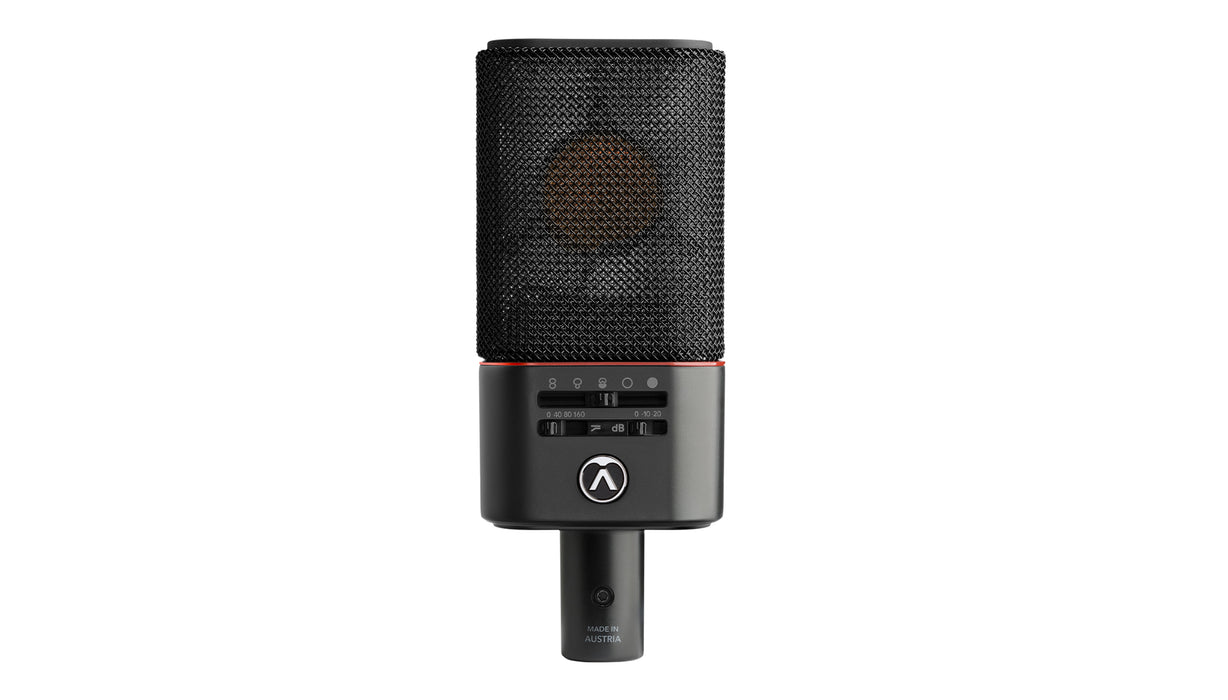

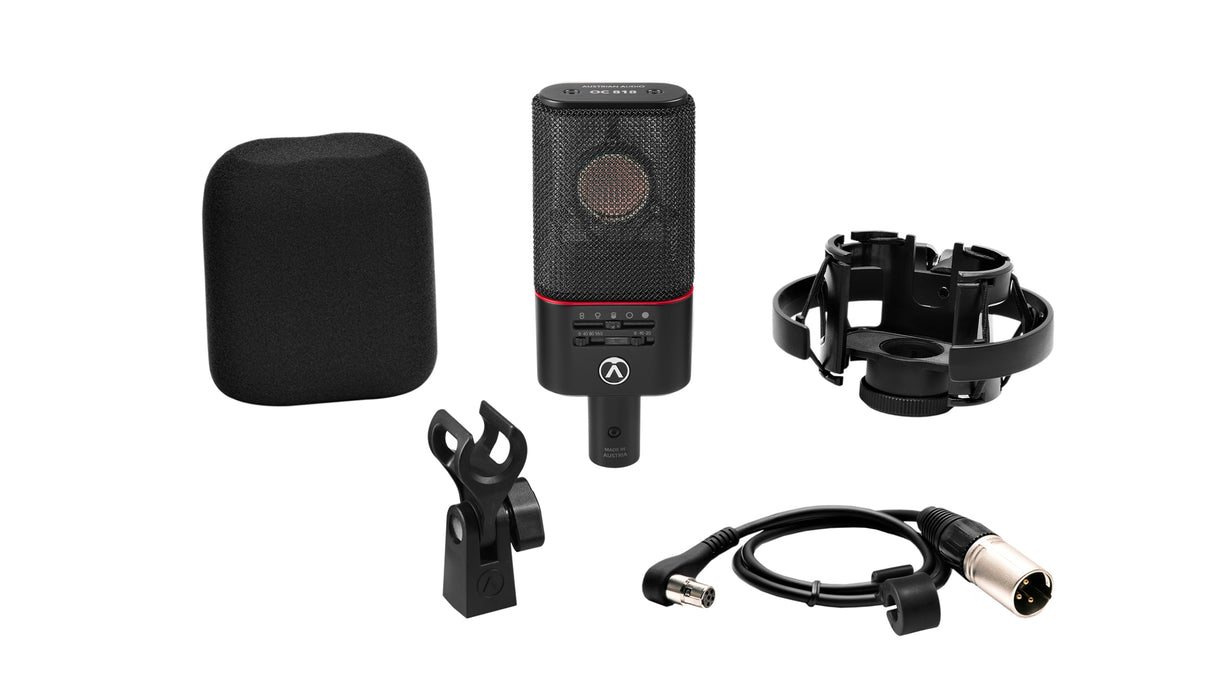

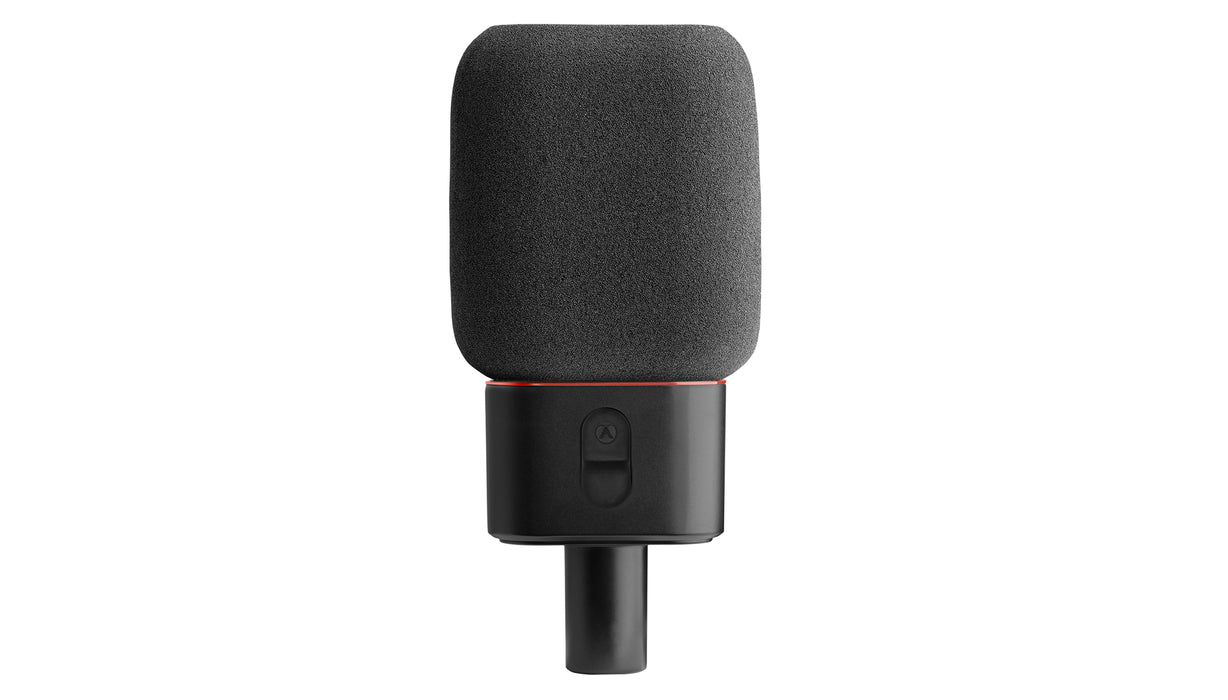

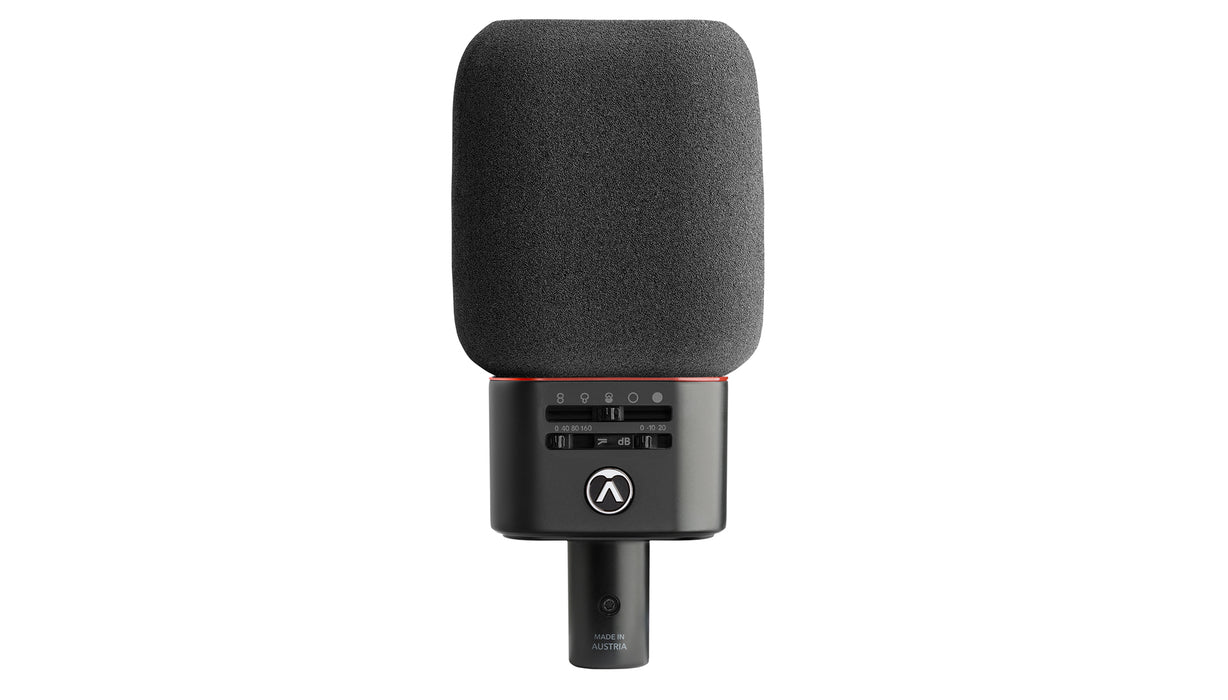

Austrian Audio OC818 Studio Set Large-Diaphragm Multipattern Condenser Microphone (1 Microphone) - Black

Engineered and manufactured in Austria, The OC818 is Austrian Audio’s premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling.

FEATURES

• Handmade CKR12 ceramic capsule
• Made to the same critical dimensions as the classic CK12 capsules
• Multiple polar patterns
• Cardioid, omnidirectional & custom programmable
• Microprocessor control of polarisation voltages
• Allows remote controlled polar pattern settings
• Two different analogue high-pass filters with three settings
• 40 Hz, 80 Hz, 160 Hz
• Two different types of analogue pads
• -10 dB, -20 dB

SPECIFICATIONS

• Directional characteristics: figure-8, supercardioid,
• cardioid, omnidirectional & custom programmable
• Frequency range: 20 Hz - 20 kHz
• Sensitivity (all directions): 13mV/Pa
• Equivalent noise level: 9 dB SPL (A)
• Max SPL: 148 dB SPL (158 dB SPL)
• Switchable pad: -10 dB, -20 dB
• Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order),
• 160 Hz (1st order down to 80Hz, 2nd order below)
• Impedance: 275 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 4mA, typical 2.1mA)
• Main Connector: XLR 3 pin
• Connector for back membrane or remote: Mini XLR 5 pin
