Behringer 110 VCO/VCF/VCA Eurorack Module

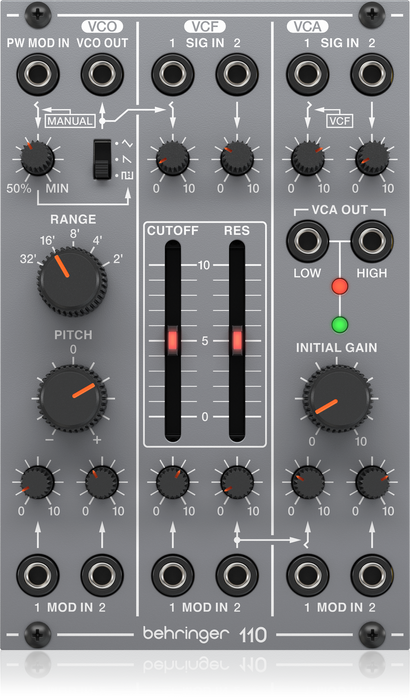

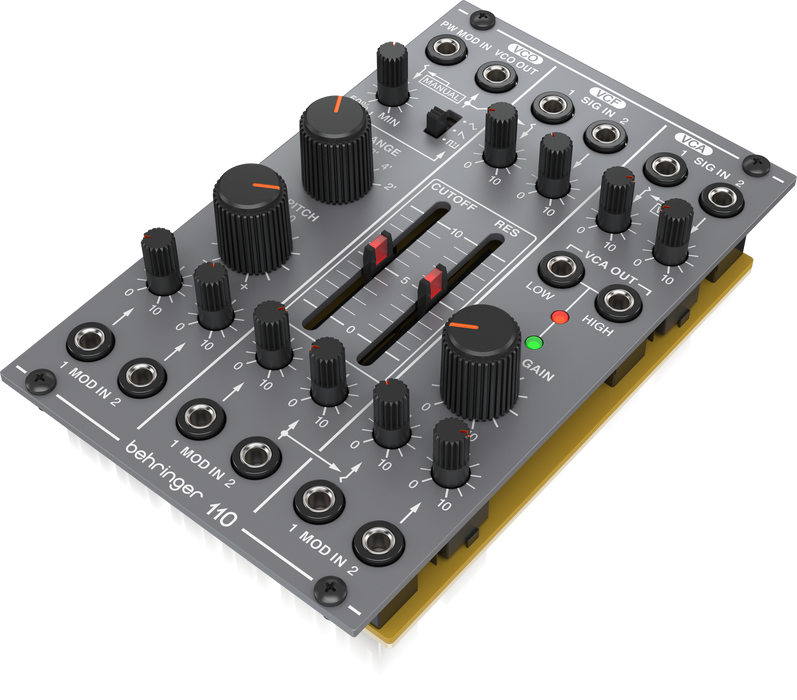

A faithful re-creation of a legendary 1980s synth module, the Behringer 110 Eurorack module supplies a full synth voice, including VCO, VCF, and VCA, in a single 16HP unit. The three components have a default signal flow running from left to right, which is indicated on the unit’s front panel. The VCO produces a lush, ultra-fat vintage tone from three selectable waveforms — triangle, ramp, and pulse with manual and CV-controlled pulse width modulation. Straightforward and full of analog flavor, the Behringer 110’s VCF features cutoff and resonance controls with responsive sliders, two CV inputs, and two signal inputs. Likewise, the VCA has two signal inputs, two CV inputs, and two outputs, including a line output and a high-impedance output for running the unit into an effects pedal or guitar amplifier — a feature synthesists at Music Bliss appreciate. The Behringer 110 is an excellent module to build your first Eurorack rig around and an affordable way to add new colors to an existing Eurorack setup. Capture the sound of the golden age of electronic music with the Behringer 110 synth voice module!

FEATURES

• Authentic reproduction of a legendary analog synth module
• Full synth voice in a single module
• Lush VCO with 3 selectable waveforms — triangle, ramp, and pulse
• Manual and CV-controllable pulse width modulation
• Vintage-flavored VCF with cutoff and resonance controls
• VCA with dual outputs — line and hi-Z
• 16HP Eurorack module

SPECIFICATIONS

• Type:Synth Voice Eurorack Module
• Analog/Digital:Analog
• Depth:1.81" (46mm)
• HP Size:16HP
• Power Usage:+12V/80mA, -12V/50mA
