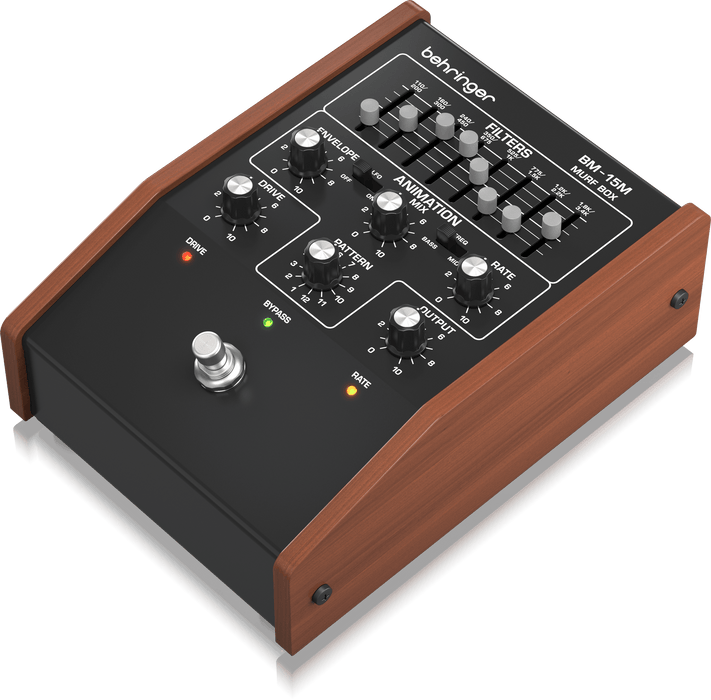

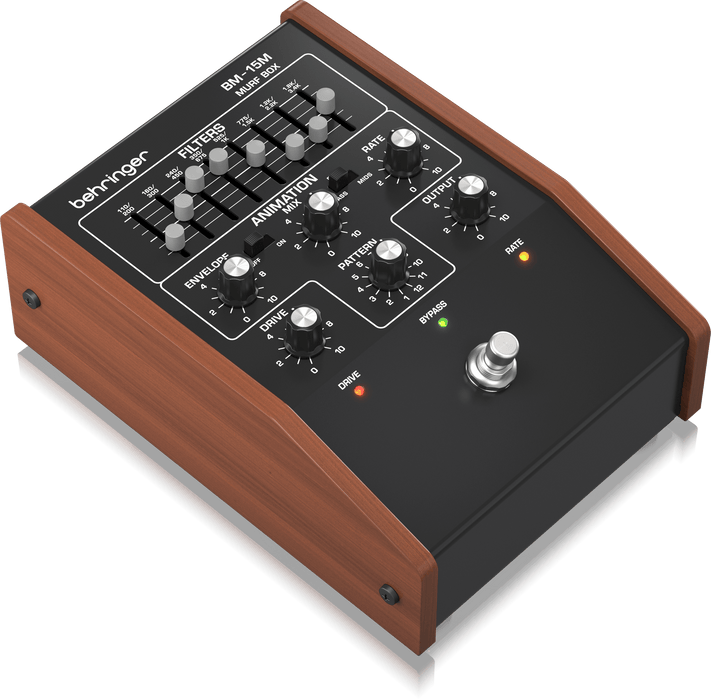

Behringer BM-15M Murf Box Multiple Resonance Filter Array Pedal

FEATURES

• 8 Filters with selectable patterns for intricate and evolving effects
• Authentic recreation of the Moog MF-105 from the ’90s
• Envelope control for dynamic and expressive modulation
• USB/MIDI control for ultimate control and flexibility
• Rate control for modulation speed
• Resonance control for enhanced filter effect
• Mix control for blending between input signal and MURF output
• Expression pedal input for real-time control
• Compact and rugged design for easy transport and onstage use
• Combine with other pedals for even more creative possibilities

SPECIFICATIONS

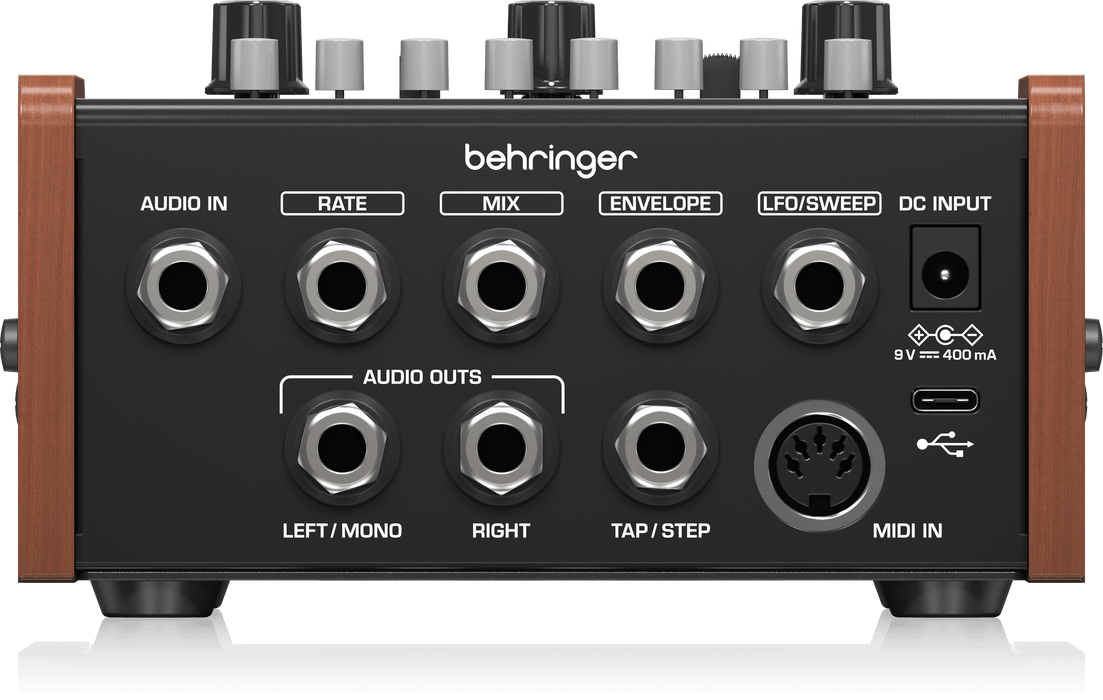

• Audio in
  Connector
  1 x 1/4" TS, unbalanced
• Impedance
  238 kΩ
• Left / mono out
  Connector
  1 x 1/4" TS, unbalanced
• Output impedance
  1 kΩ
• Right out
  Connector
  1 x 1/4" TS, unbalanced
• Output impedance
  1 kΩ
• Tap / step
  Connector
  1 x 1/4" TRS, balanced
• Input impedance
  48 kΩ
• Control Connections
  Rate
  Connector
  1 x 1/4" TRS
• Impedance
  22 kΩ, unbalanced
• CV input range
  0 V to +5 V
• Mix
  Connector
  1 x 1/4" TRS
• Impedance
  22 kΩ, unbalanced
• CV input range
  0 V to +5 V
• Envelope
  Connector
  1 x 1/4" TRS
• Impedance
  22 kΩ, unbalanced
• CV input range
  0 V to +5 V
• LFO / sweep
  Connector
  1 x 1/4" TRS
• Impedance
  22 kΩ, unbalanced
• CV input range
  0 V to +5 V
• MIDI in
  2 x 5-pin DIN, 16 channels
• USB
  1 x USB, type C

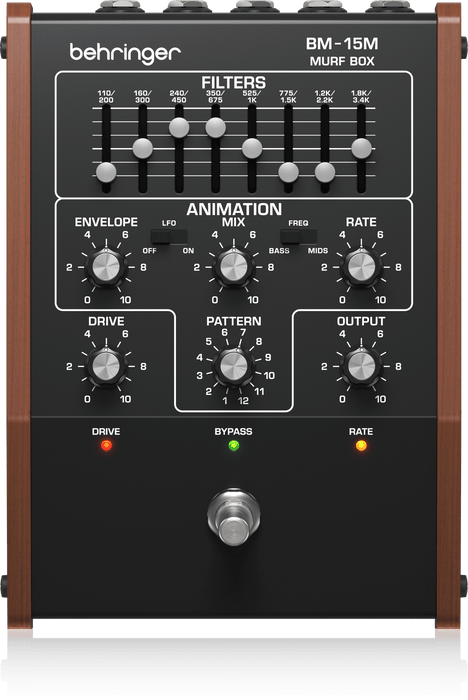

• Controls
  Filter
  8 x sliders
• Drive
  1 x rotary knob
• Output
  1 x rotary knob
• Envelope
  1 x rotary knob
• LFO (off / on)
  1 x sliding switch
• Mix
  1 x rotary knob
• Freq (bass / mids)
  1 x sliding switch
• Rate
  1 x rotary knob
• Pattern
  1 x rotary knob
• Bypass
  1 x footswitch
• System
  Frequency response
  20 Hz to 20 kHz (+0 / -2 dB)
• Dynamic range
  > 66 dB
• Signal-to-noise ratio
  > 56 dB
• Overall gain
  +16.5 dB
• Power Supply / Voltage
  Power input
  Standard 9 V DC, centre negative, > 400 mA (power supply not included)
• Power consumption
  1.8 W
• Dimensions / Weight
  Dimensions (H x W x D)
  85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
• Weight
  1,108 g (39.1 oz)
