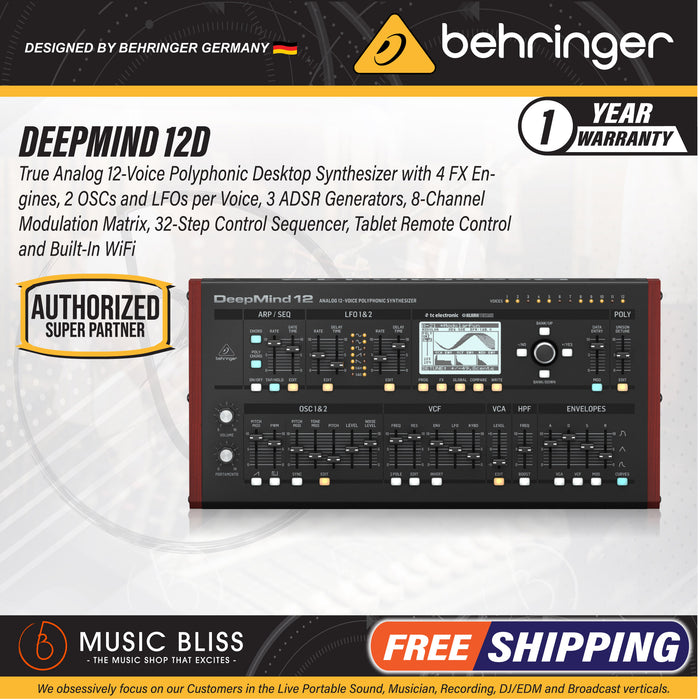

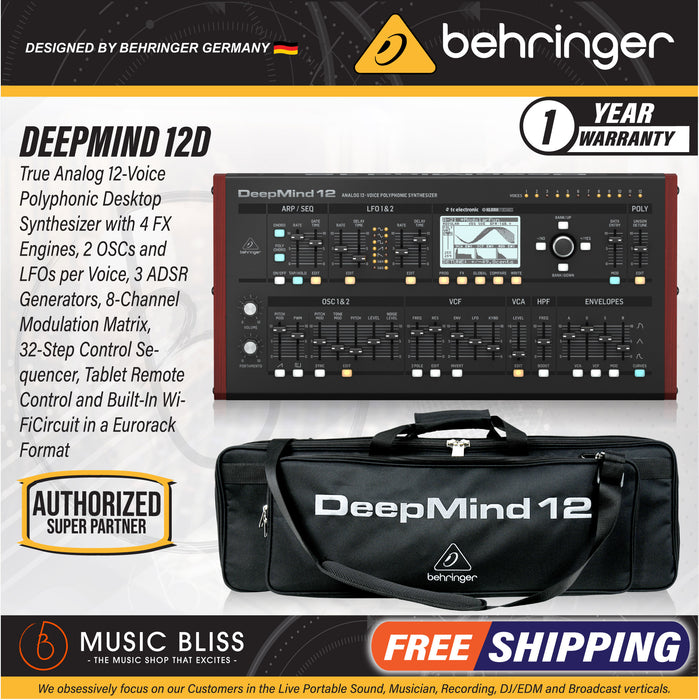

Behringer DeepMind 12D 12-voice Analog Desktop Synthesizer (DeepMind12D / DeepMind-12D)

The iconic synthesizer tracks on your favorite progressive rock, pop, and jazz fusion records from the 1970s and '80s are forever inscribed in music history. With the DeepMind 12, Behringer set out to create the ultimate analog polysynth — a 12-voice beast that can effortlessly deliver any classic synth sound you've ever heard — or imagined. You want one. Problem is, your keyboard rig is already set up around a master controller, and you don't have the space (or the inclination) for a 1970s-style keyboard extravaganza. Behringer has read your mind. The DeepMind 12D is the desktop module version of the popular 12-voice synth. Incorporating two digitally controlled analog oscillators and two LFOs per voice, three envelopes, a noise generator, unison mode with a handy Detune fader, an extensive 8-bus modulation matrix, a 32-step sequencer, four digital FX engines, built-in Wi-Fi, and more, the Behringer DeepMind 12D packs serious synthesis firepower that will make you a musical force to be reckoned with.

FEATURES

• Classic polysynth module with 12 true-analog oscillators for ferociously fat vintage-flavored sounds
• 2 DCOs per voice, noise generator
• DCO sync and voice unison detune options
• 1024 patch memory locations with compare-and-match feature to quickly match all analog controls to values stored in program
• 2/4-pole lowpass filter, additional highpass filter
• 3 envelopes: VCA, VCF, and assignable Mod
• Each voice features an independent LFO
• Unison mode with Detune fader
• Extensive 8-bus modulation matrix
• 4 integrated digital effects engines with 4 parts and over 30 types of FX
• Hard-wired effects bypass
• Arpeggiator/32-step sequencer with gate-time control
• LCD display with encoder, navigation switches, and data slider
• CV/pedal input to connect with modular systems
• All parameters controllable via Wi-Fi, editable via computer and tablet apps
• USB; MIDI in, out, and thru connections

SPECIFICATIONS

• Polyphony:12 voices
• Presets:1024 program memories - 8 banks (each with 128 programs)
• Oscillators:2 per voice
• Effects Types:Reverb, Delay, Chorus, Flanger, Rotary, Amp simulator, Phaser, EQ, Filter, Distortion, Compression, Gates
• Arpeggiator:Yes
• Sequencer:32-steps
• Analog Outputs:2 x 1/4" TRS (main out), 1 x 1/4" (headphones)
• MIDI I/O:In/Out/Thru/USB
• Other I/O:Built-in Wi-Fi (2.4 GHz), Tablet remote control
• Pedal Inputs:1 x 1/4" (sustain/trigger), 1 x 1/4" (pedal expression/CV in)
• USB:1 x Type B
• Features:Built-in Wi-Fi, 3 ADSR generators per voice, 8-channel modulation matrix, Analog VCF and VCA
• Software:DeepMind iOS app
• OS Requirements - Mac:OS X 10.6.8 or later, iOS 8 later
• OS Requirements - PC:Windows 7 or later, Android 6.0 or later
• Power Supply:Standard IEC power cable
• Height:4.6"
• Width:18"
• Depth:8.8"
• Weight:11 lbs.
