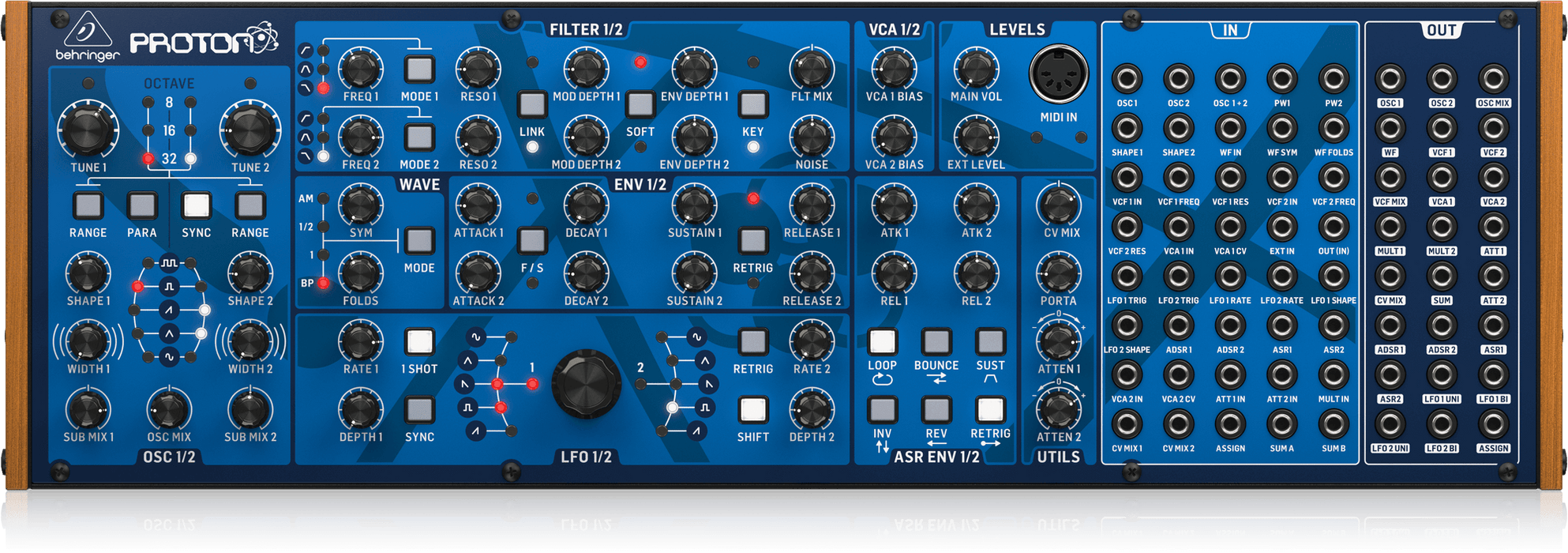

Behringer Proton Paraphonic Analog Synthesizer

Showcasing dual-oscillator harmonic functionality amplified by Behringer's user-friendly ethos, the Proton paraphonic analog synthesizer combines the versatility of modern synthesis with empowering sound generation. Packed with two waveform-selectable VCOs, coasting the outline of both monophonic leads and harmonized synthetic atmospheres remains limited only to your creative wit. Likewise, via the module's front panel, access to ASR and ADSR envelopes, two adjustable LFOs, onboard CV mixing utilities, noise generation, and more take sound sculpting opportunities to ever more versatile heights. As a semi-modular synth, rest assured the Proton is capable of providing a formidable nucleus to your pre-existing modular setup — not to mention a versatile independent instrument in it's own right. Combined with 5-pin MIDI and USB connectivity, plus 1/4-inch TR audio I/O and TRS headphone outputs, access to the Proton's atomic character is leveled to fit the needs of your studio or home production situation.

FEATURES

• Semi-modular desktop synthesizer module packed with expansive dual VCO sound potential

• Paraphonic voicing facilitates seamless oscillator independence resulting in deep, multitimbral sound creativity

• Compact, semi-modular design capable of playing both independently and as part of a larger modular setup

• 2 onboard VCOs with 5 waveform options — tone mod, pulse, sawtooth, triangle, and sine

• 2 ASR envelopes featuring reverse, inverse, loop, and bounce operation options

• Dual analog ADSR generators supply deep shaping control

• 2 adjustable LFOs with five built-in waveforms, MIDI clock sync, and phase/depth parameters

• Wave folder with multiple operation modes affords massive harmonic flexibility

• Noise generator opens an expanse of textural sound opportunities

• Onboard attenuverter, multiple, and signal/CV mixing utilities
  Comprehensive 3.5mm I/O patchbays for advanced modular control and integration with pre-existing systems

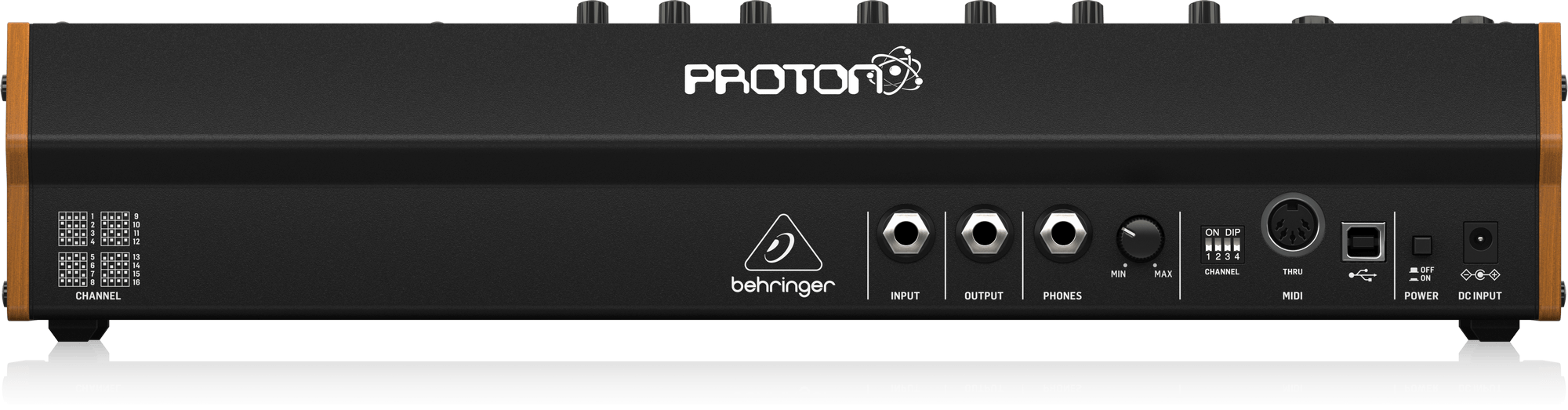

• 5-pin MIDI and USB connectivity

• 1/4-in TR audio I/O and TRS headphone output

SPECIFICATIONS

• Type: Proton Paraphonic Synthesizer

• Analog/Digital: Analog

• Polyphony: Monophonic/Paraphonic

• Oscillators: 2 x VCOs

• Envelope Generator: 2 x ADSR, 2 x ASR

• LFO: 2 x LFOs

• Filter: 2 x Lowpass/Highpass/Band Pass, Switchable

• Analog Inputs: 1 x 1/4" TS

• Analog Outputs: 1 x 1/4" TS

• Headphones: 1 x 1/4" TRS

• MIDI I/O: In/Thru/USB

• Other I/O: 64 x Patch Points (40 x In, 24 x Out)

• USB: 1 x Type B 2.0

• OS Requirements - Mac: macOS 10.10 or later

• OS Requirements - PC: Windows 7 or later

• Power Supply: DC Power Supply

• HP Size: 80HP

• Height: 3.7"

• Width: 16.69"

• Depth: 5.35"

• Weight: 4.4 lbs
