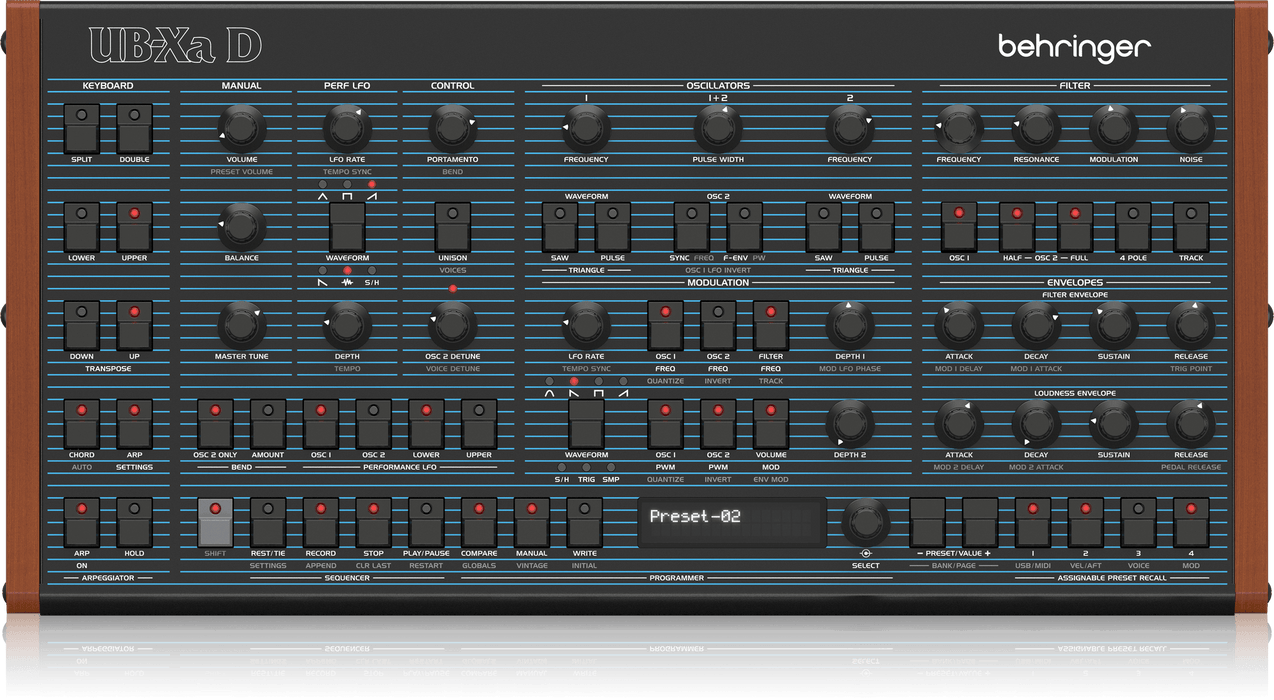

Behringer UB-Xa D 16-voice Multi-timbral Polyphonic Desktop Analog Synthesizer (UBXa / UB Xa)

Behringer’s dedication to both preserving and reimagining the iconic synths of history led to the development of the UB-Xa. Now, with the Behringer UB-Xa, the synth lauded for being equal parts musically menacing and malleable has broken its keybed shackles to expand your studio and stage palettes. Like its sized-up sibling, this pint-sized powerhouse utilizes 32 analog oscillators to power its immense sonic scope. The potentate of polyphonic possibilities delivers the full spread of iconic 1980s-style lightning leads, booming brass, and plush pads, supplemented by a detailed suite of playstyle pliability, including velocity sensitivity, MPE (MIDI Polyphonic Expression), and a slew of expressive capabilities. Music Bliss synth aficionados are supremely impressed with its dual-layer mode, allowing you to conjure two distinct patches across its 16 voices for massive, simultaneous sounds, allowing for complex tone crafting that can be painlessly saved and recalled with 512 onboard preset slots. Dual LFOs, dedicated VCA and VCF envelopes, pulse-width modulation, and flexible per-oscillator modulation controls are complemented by a switchable, versatile VCF, which boasts 2- and 4-pole filter modes.

FEATURES

• Desktop version of the Behringer UB-Xa

• 16-voice, 32-oscillator design features multitimbral architecture for massive, dual-layer sounds

• Velocity-sensitivity and onboard MPE ensure dynamic voicing opportunities with no shortage of expressivity on tap

• Versatile VCF boasts 2-pole, 12dB/octave and 4-pole, 24dB/octave options

• Dual LFOs are armed with 6 waveforms for malleable sound shaping: Sine, Inverse Sawtooth, Square, Sawtooth, Sample & Hold, Trig, and SMP

• Flexible pitch and modulation options are complemented by diverse oscillator control, including Sync, Unison, and PWM

• 512 user preset slots provide ample room for sound-crafting and storage with painless storage and management

• Face-mounted preset recall buttons let you keep 4 of your prized presets instantly available for on-the-fly switch-ups

• 8-channel modulation matrix supports unrivaled sound-crafting opportunities for maximum expressive potential

• 8 selectable vintage modes supplement your sound with a diverse array of instant-access ‘80s-style panache

• Comprehensive MIDI control includes NPRN and CC control of every parameter to guarantee explosive interoperative performance power

SPECIFICATIONS

• Type:    UB-XA Desktop Synthesizer

• Analog/Digital:    Analog

• Other Controllers:    Frequency, Resonance, Modulation, Noise

• Polyphony:    16-voice, Bi-timbral

• Oscillators:    32 x VCOs (saw, pulse)

• Waveforms:    Triangle, Square, Ramp, Sawtooth, Noise, Sample/Hold

• LFO:    2 x LFO

• Filter:    1 x Low Pass (2-pole/4-pole switchable)

• Envelope Generator:    2 x ADSR (VCA, VCF)

• Arpeggiator:    Yes

• Sequencer:    64-step

• Memory:    512 Patch Memories

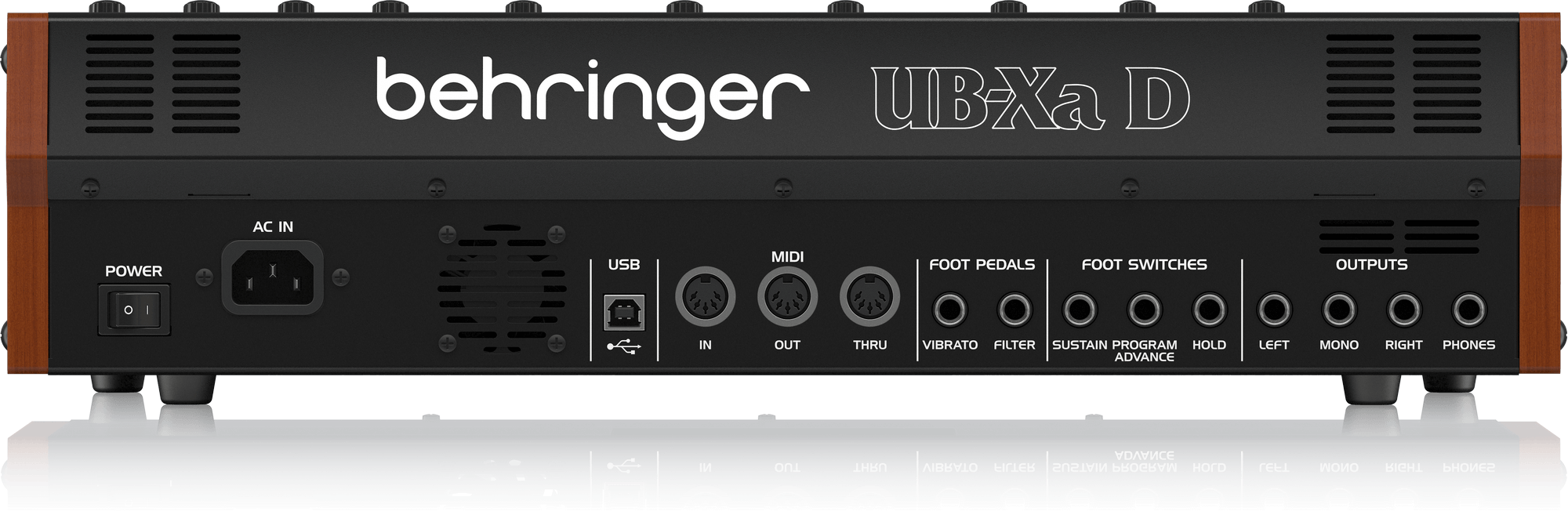

• Audio Outputs:    2 x 1/4" TRS (left, right), 1 x 1/4" (mono)

• Headphones:    1 x 1/4" TRS

• USB:    1 x Type B 2.0 (MIDI)

• MIDI I/O:    In/Out/Thru/USB

• Pedal Inputs:    2 x 1/4" TRS (vibrato, filter), 3 x 1/4" TS (sustain, program advance, hold)

• OS Requirements - Mac:    macOS X 10.10 or later

• OS Requirements - PC:    Windows 7 or later

• Power Source:    Standard IEC AC Input

• Height:    4.68"

• Width:    18.14"

• Depth:    8.83"

• Weight:    10.67 lbs
