Behringer WING COMPACT 48-channel Digital Mixer

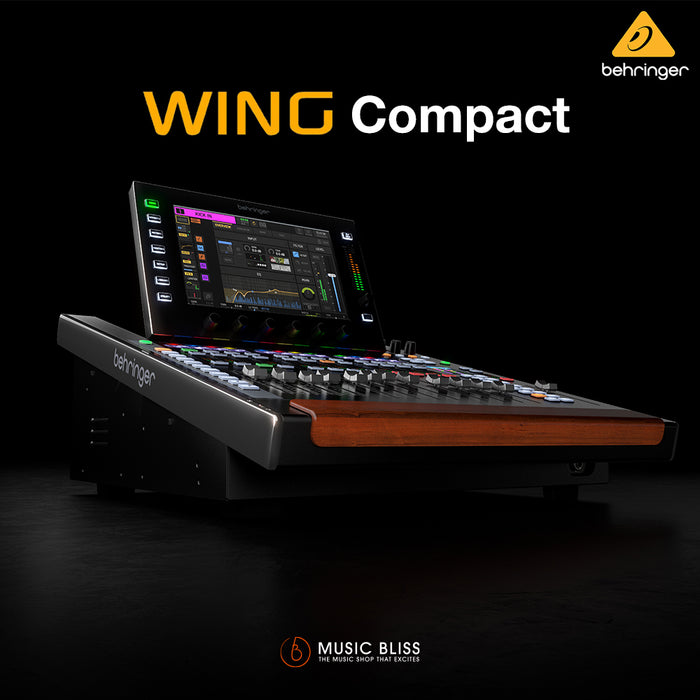

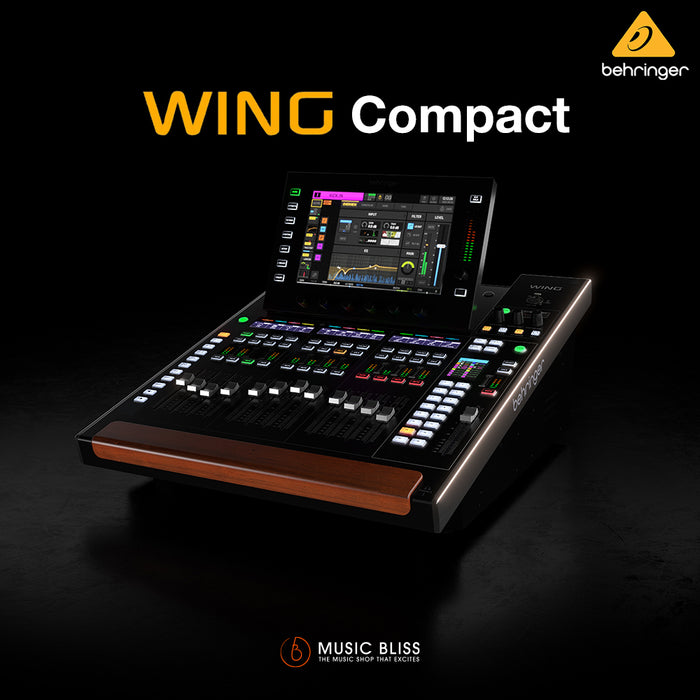

The Behringer WING Compact packs the processing power, channel count, effects, expansion slots, and digital I/O of the full-size WING into a lightweight, 13-fader control surface. That said, the WING Compact supplements its near-limitless digital connectivity with 24 award-winning Midas Pro preamps, making it an ideal all-in-one solution, even without a separate stage box. A 10.1-inch capacitive touchscreen and intuitive Sources paradigm provide streamlined navigation, enabling you to focus on your source audio rather than the nuts and bolts of your mix. You’ll also appreciate the enhanced customization afforded by the WING Compact’s eight user-assignable buttons, plus you get a dedicated Bus/Main/DCA section for fader usage and effect and DCA spill. You can record up to 64 channels directly to dual SD cards, use optional expansion cards to attain Dante support, or deploy the WING Compact’s built-in 48-in/48-out USB audio interface to record straight to your DAW. Complete with 16 true-stereo processors with Standard and Classic modeled effects, the WING Compact is a top-shelf digital console that will elevate the capabilities of any small-scale live sound setup.

FEATURES

• Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING
• 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains

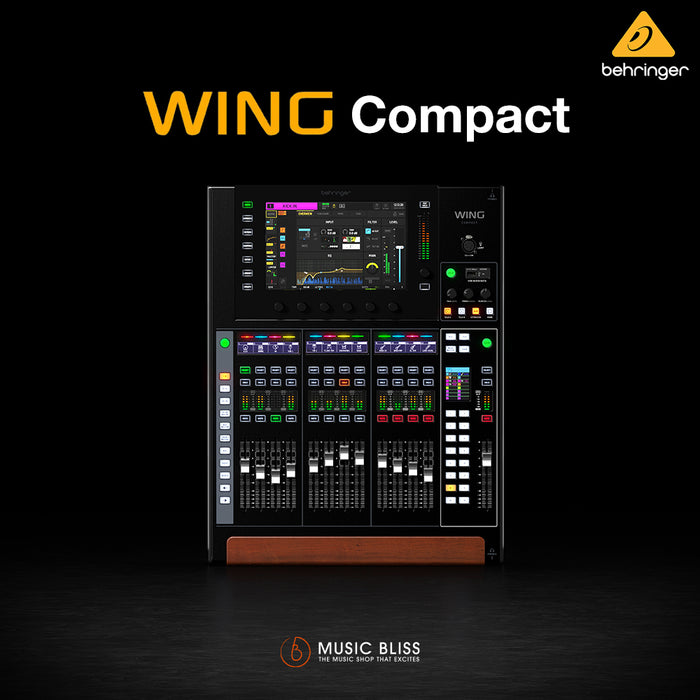

• 13 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
• 10.1-in. capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
• Enhanced customization using 8 front buttons to do whatever your workflow needs
• Bus/Main/DCA section for fader usage and effect and DCA spill
• 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with Midas M32 and Behringer X32 mixers
• 32-channel StageConnect interface for personal monitoring or analog I/O boxes
• Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and a GPIO port
• Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante support
• Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
• Sources put the emphasis on your source audio rather than on your inputs and channels
• Apply names, icons, and colors to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
• 19-in. rackmountable in 3 positions

SPECIFICATONS

• Type:Digital Mixer
• Channels:48 Stereo

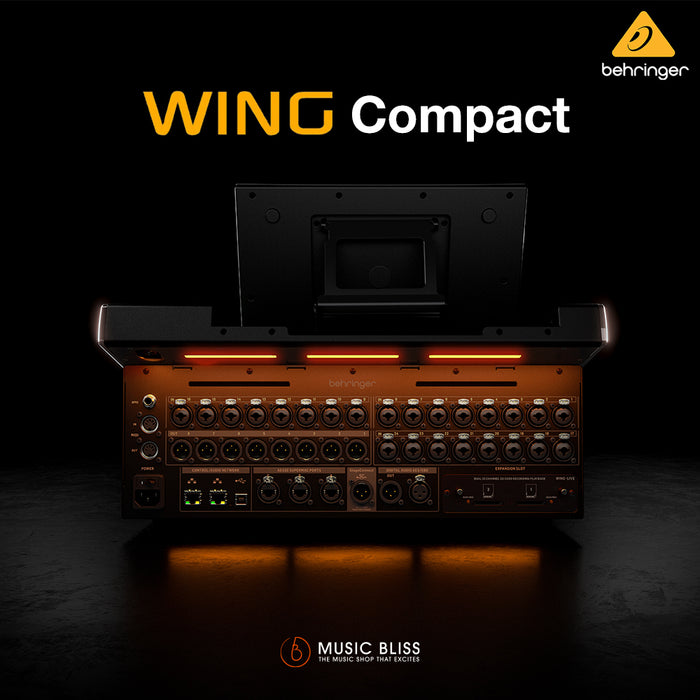

• Inputs - Mic Preamps:24 x XLR-1/4" combo (mic/line)
• Phantom Power:Yes
• Outputs - Main:8 x XLR
• Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts:Dual Inserts per Bus, FX Insert Slot
• MIDI I/O:In/Out
• Data I/O:2 x Ethernet (control/audio network)
• Headphones:2 x 1/4"
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
• Remote:1 x 1/4" (GPIO)
• I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
• Faders:12 x 100mm Motorized
• A/D Resolution:Up to 24-bit/192kHz
• EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing:Full Dynamics Processing
• DAW Control:Yes (HUI, Mackie)
• Screen:10" Capacitive Touchscreen, Adjustable Swivel
• Storage:2 x SD Card Slot (dual 32 track max)
• Power Source:Standard IEC AC cable
