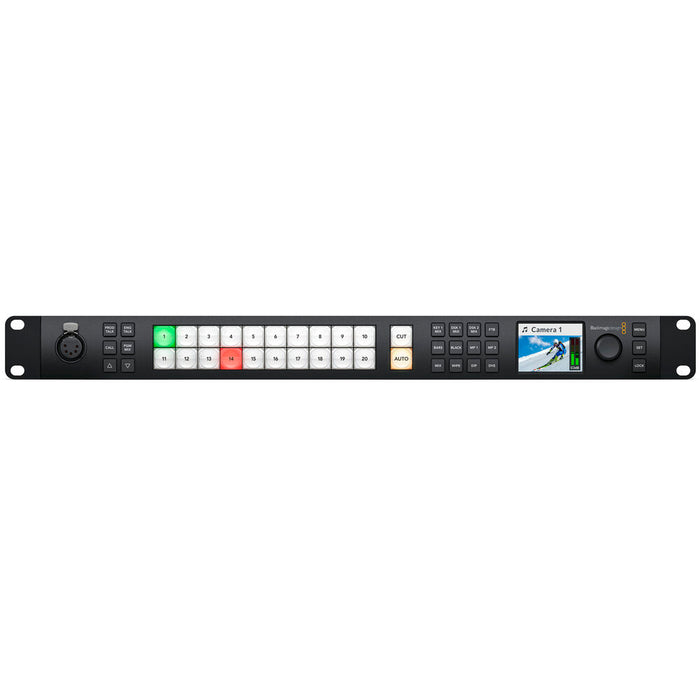

Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher

Powerful live event HD switching, supporting up to 20 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the Blackmagic Design ATEM 2 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 12 3G-SDI BNC outputs or a webcam output via USB-C. In addition, the switcher has two multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 48 channels of audio.

FEATURES

• Supports 3G/HD-SDI at 10-Bit

• 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs

• Up to 16-Multiview Monitoring Windows

• Webcam Output via USB-C

• Frame Rate/Format Converter per Input

• 48-Channel Audio Mixer

• 8 x Upstream, 2 x Downstream Keyer

• Chroma/Luma Keyers

• Color/Pattern Generators

• Hardware or Software Mac/Windows Control

SPECIFICATIONS

• Available M/E Layers : 2 M/E

• Effect Types : 8x Chroma Key | 11x Luma Key | 2x Stinger
  6x DVE

• Downstream Keys : 2x Chroma, Luma, DVE

• Generators : 2x Color | 11x Pattern

• Audio Mixing : 48-Channel Mixing
• Processing

• Switching Type : Pushbutton, Software

• Latency : 10 Lines

• Color Processing : 10-Bit 4:2:2

• Input
  - Number of Video Input Sources : 20

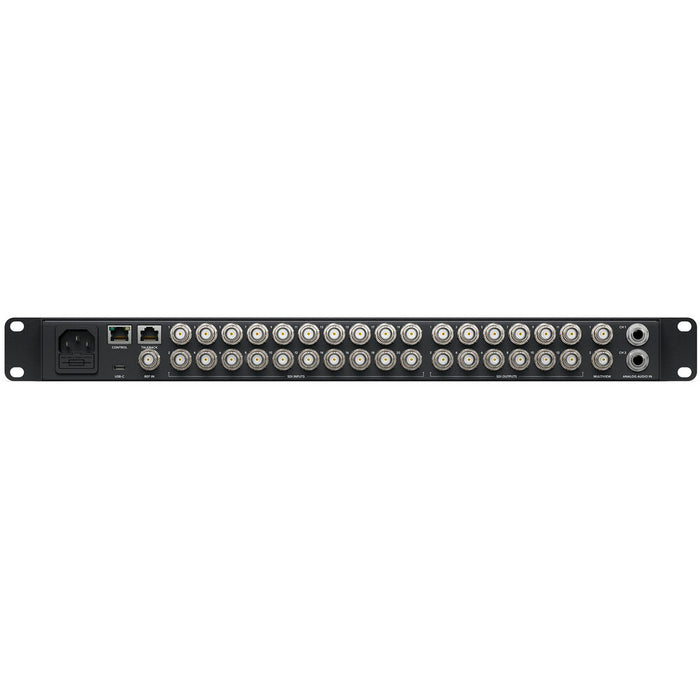

  - Video Inputs : 20x BNC (3G-SDI)
  - Input Video Format : SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080i at 50/59.94/60 fps | 720p at 50/59.94/60 fps
  - Audio Inputs : 2x 1/4" TRS Stereo Analog Female
  - Input Audio Format : Analog
  - Embedded Audio Input : SDI: 2-Channel (per Input)

• Output
  - Video Output Channels : 12
  - Video Outputs : 12x BNC (3G-SDI) | 1x USB-C (USB Video) (Program)
  - Output Video Format : SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps | 1080i 50/59.94/60 fps | 720p 50/59.94/60 fps
  - Embedded Audio Output : SDI | USB-C
  - Multiview Output : 16-Way Multiview via SDI
• Connectivity
  - Other I/O : 1x BNC Blackburst, Reference, Tri-Level Sync Input | 1x RJ45 Control | 1x RJ45 Talkback Input/Output | 1x XLR 5-Pin Talkback Input/Output
  - Video Standard Compliance : SMPTE 292M/296M/424M/425M-A/425M-B
  - HDCP Support : No
  - IP Video : 1280 x 720 to 1920 x 1080 Encoding
• Hardware
  - Operating System : macOS, Windows 10 Home, Windows 11 Home
  - OS Compatibility : macOS 11.1 or Later / Windows 10 or Later
  - OS Compatibility : macOS 11.1 | macOS 12.0 or Later | Windows 10 | Windows 11
  - Wi-Fi : No
  - Bluetooth : No
  - Power I/O : 1x IEC C14 Input
  - Power Consumption : Device: 52 W
