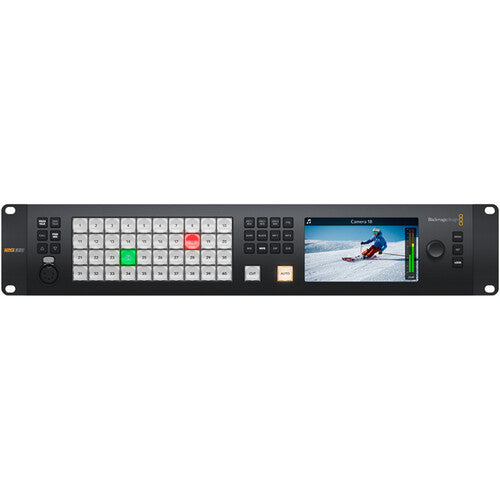

Blackmagic Design ATEM 4 M/E Constellation 4K Ultra HD Video Switcher

ATEM 4 M/E Constellation 4K is a massive 4 M/E Ultra HD live production switcher. It features 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!

FEATURES

• Supports 12G-SDI at 10-Bit

• 40 x 12G-SDI Inputs

• 24 x 12G-SDI Outputs

• Webcam Output via USB-C

• Frame Rate/Format Converter per Input

• 156-Channel Audio Mixer

• 16 x Upstream, 4 x Downstream Keyer

• Chroma/Luma Keyers

SPECIFICATIONS

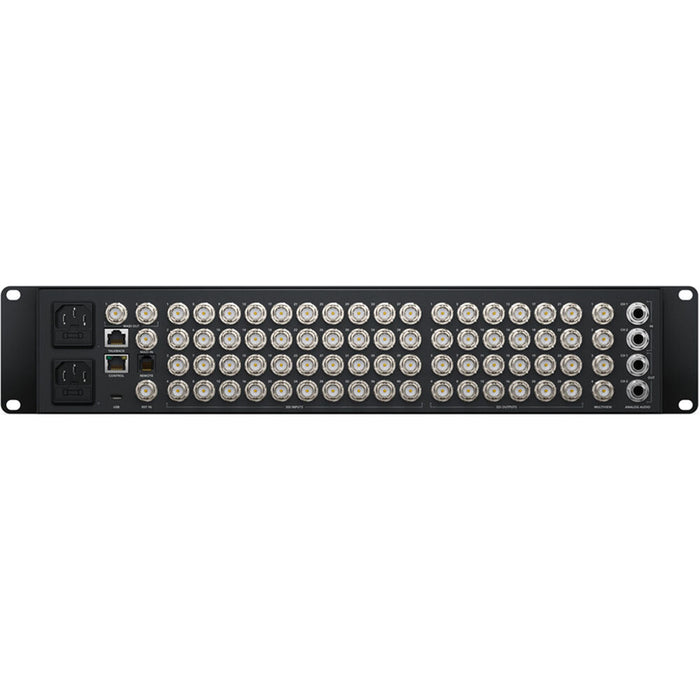

• Total Video Inputs : 40
• Total Video Outputs : 28
• Total Aux Outputs : 24
• SDI Rates : 1.5G, 3G, 6G, 12G.
• Total Audio Inputs : 2 x balanced 1/4 inch Jack,
• 1 x 32 stereo channel BNC MADI in,
• 1 x 5 pin XLR Talkback.
• Total Audio Outputs : 2 x balanced 1/4 inch Jack,
• 2 x 32 stereo channel BNC MADI out,
• 1 x 5 pin XLR Talkback.
• Timecode Connections : None
• Reference Input : Tri-Sync or Black Burst.
• Video Input Re-Sync : On all 40 inputs.
• Frame Rate and Format Converters : On all 40 inputs.
• SDI Video Inputs : 40 x 10-bit 720p, 1080i, 1080p, 2160p.
• SDI Audio Inputs : 8 Ch embedded audio on all SDI inputs.
• Extra Audio Inputs : 1 x 5 pin XLR Talkback.
• SDI Video Outputs : 28 x 10-bit 720p, 1080i, 1080p, 2160p.
• SDI Audio Outputs : 16 Ch embedded into SDI output on all outputs.
  SDI Multi View Outputs
• SDI Program Outputs : Any of the 24 SDI outputs.
• Down Converted SDI Program Output : 1
• Any of the 24 SDI outputs.
• SDI Preview Outputs
• Any of the 24 SDI outputs.
• Extra Audio Outputs : 1 x 5 pin XLR Talkback.
