Blackmagic Design ATEM 4 M/E Constellation IP Plus Live Production Video Switcher

The extraordinarily powerful, SMPTE-2110-native ATEM 4 M/E Constellation IP Plus live production switcher expands upon the creative switching power of Blackmagic Design’s ATEM Constellation series — with twice the I/O potential of the standard ATEM 4 M/E Constellation IP for large broadcast productions! Tame the complexities of modern live production with this switcher’s flawless quality, IP connection redundancy, precision synchronization, and Constellation-grade creative control, as well as its ability to accommodate a 12G-SDI and SMPTE-2110 IP video converter into the mix. The ATEM 4 M/E Constellation IP Plus provides 64 video inputs and 52 video outputs, thanks to eight pairs of expansive high-speed dual 100G Ethernet ports. Under the hood, it's outfitted with 16 ATEM Advanced Keyers, a quartet of multi-views, and a pair of SuperSource processors, putting a dozen DVEs at your disposal.

FEATURES

• High-performance live production video switcher with native SMPTE-2110 for mixing 12G-SDI and SMPTE-2110 IP video signals with ease

• 64 in/52 out, doubling the I/O potential of the standard version

• Designed for integration with other Blackmagic Design units like SDI Expander 8x12G, StudioBridge 10G PWR, and Ethernet Switch 820

• 8 dual 100G Ethernet connections with 8 video channel inputs and outputs each, plus SMPTE-2110 redundancy for glitch-free quality

• Handling for multiple video standards at once, up to 4K/60 fps, with per-channel standards converters

• Quiet 4-fan front-to-back cooling provides optimal operational conditions at all times

• 4 customizable multi-views, routed to all SMPTE-2110 connections with 16 views each, create 64 total views over 4 monitors with tally

• Unique transitions, picture-in-pictures, DVEs, ATEM Advanced Keyers, and internal media allow for superior customization

• SuperSource processing for multi-view compositions and versatile talkback capabilities accommodate productions of all types

• ATEM Software Control Panel for Mac/Windows delivers television-grade switching over Ethernet or USB
• Software unveils camera control, switching, media uploading, audio leveling, macro programming, and HyperDeck disk recording control

• Free Fairlight Live software enables broadcast-grade surround sound mixing and audio routing directly to the switcher

SPECIFICATIONS

• Type : ATEM 4 M/E Contellation IP Plus Advanced Live Production Switcher

• Channels : 64 x Video Inputs, 52 x Video Outputs, 132-channel Audio Mixer

• Video Format : Up to 4K/60fps

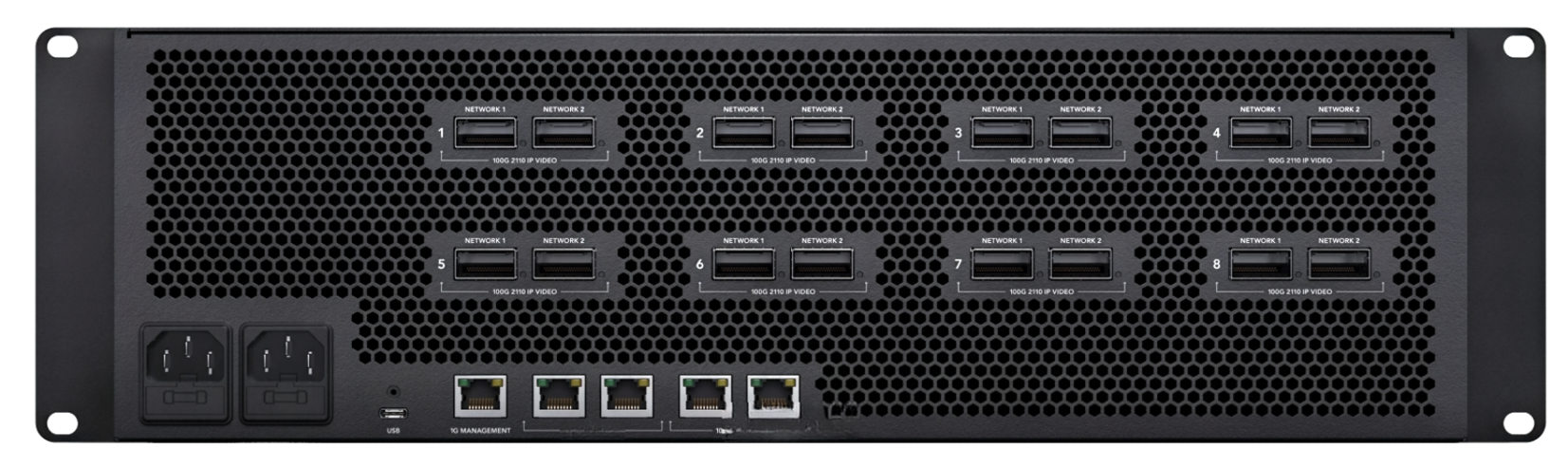

• Video Inputs : 16 x QSFP28 (100G 2110 IP video)

• Headphones : 1 x 1/4" TRS (front)

• USB : 1 x USB-C (front), 1 x USB-C (rear, webcam output)

• Other I/O : 1 x RJ45 (1G management), 2 x RJ45 (2110 PTP clock), 2 x RJ45 (10G control)

• Software : Blackmagic Design ATEM Software Control Panel (macOS/windows)

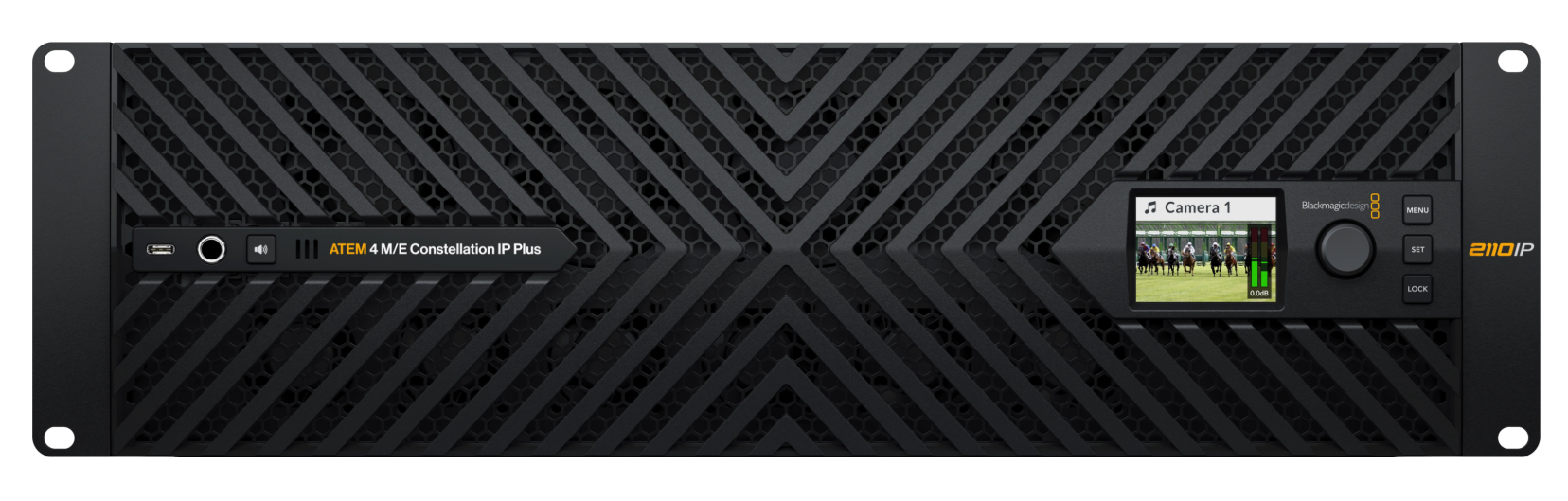

• Features : Built-in LCD Monitor & 4 x Media Players

• Power Source : 2 x Standard IEC (C14) AC Inputs (cable sold separately)

• Height : 5.22" (3U)

• Width : 19"

• Depth : 8.66"
