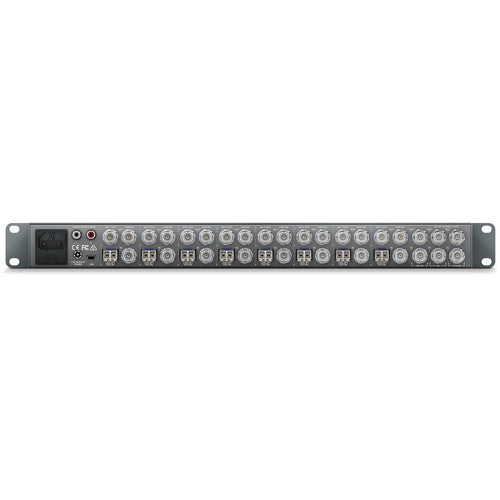

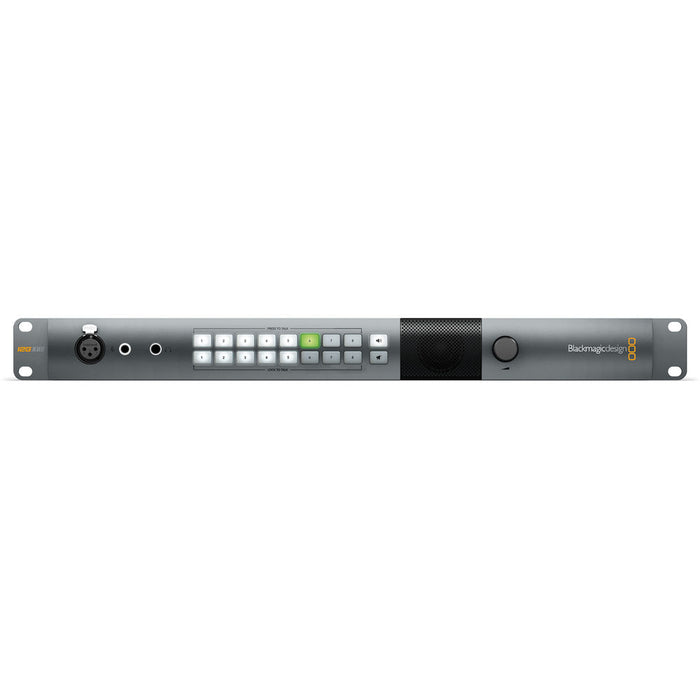

Blackmagic Design ATEM Talkback Converter 4K

With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel. This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry-standard rack-mount equipment and furniture.

FEATURES

• Communicate with up to 8 Cameras

• 8 SDI I/O

• Camera Talkback via XLR, Mini

• Fits in 1 Standard Rack Unit

• Supports SDI Tally Output

• Camera Talkback

• Upgradeable to Accept 8 Fiber I/O


SPECIFICATIONS

• Computer Interface : 1 x USB Mini-B Connector (for Firmware Updates)

• SD Format Support : 525/29.97 NTSC | 625/25 PAL

• SDI Compliance     : SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M

• Audio Sampling : 24-Bit, 48 kHz A/D Conversion

• Certifications : EMC, UL, FCC, CE, C-Tick, KCC

• Power Supply : 110 to 240 VAC Input with Redundant 12 to 31 VDC Input

• Power Usage : 60 W

• Compatible Operating Systems : Mac OS X 10.9 and Newer | Windows 7 and 8
