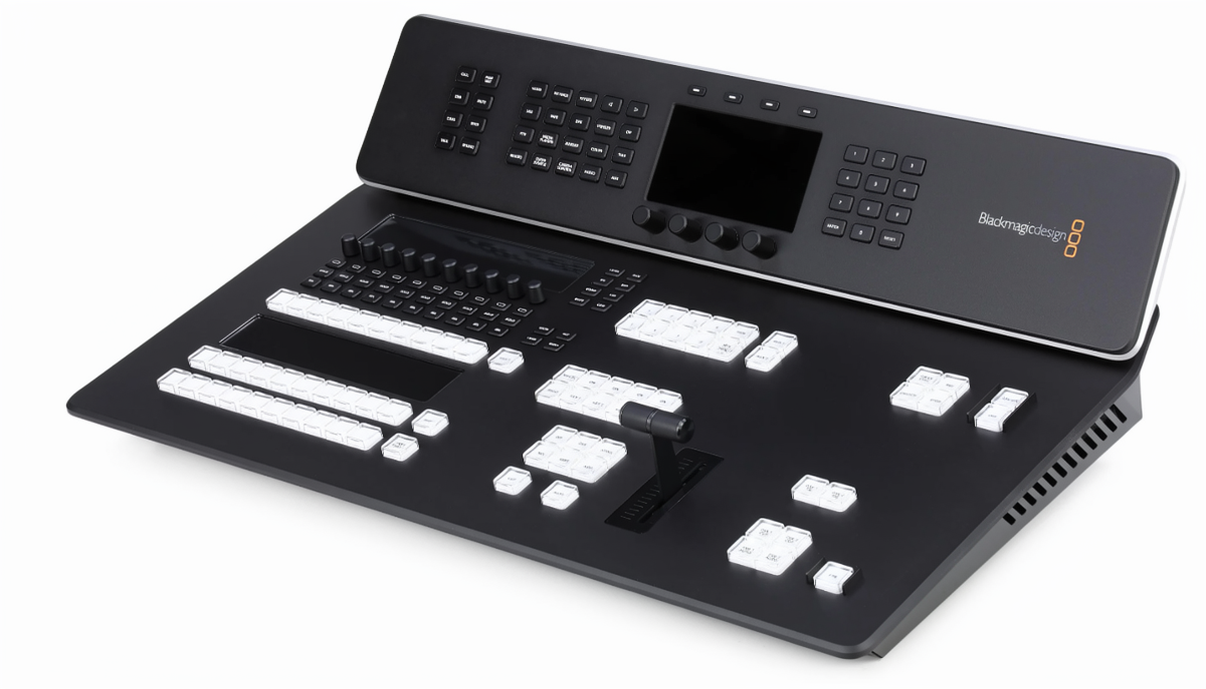

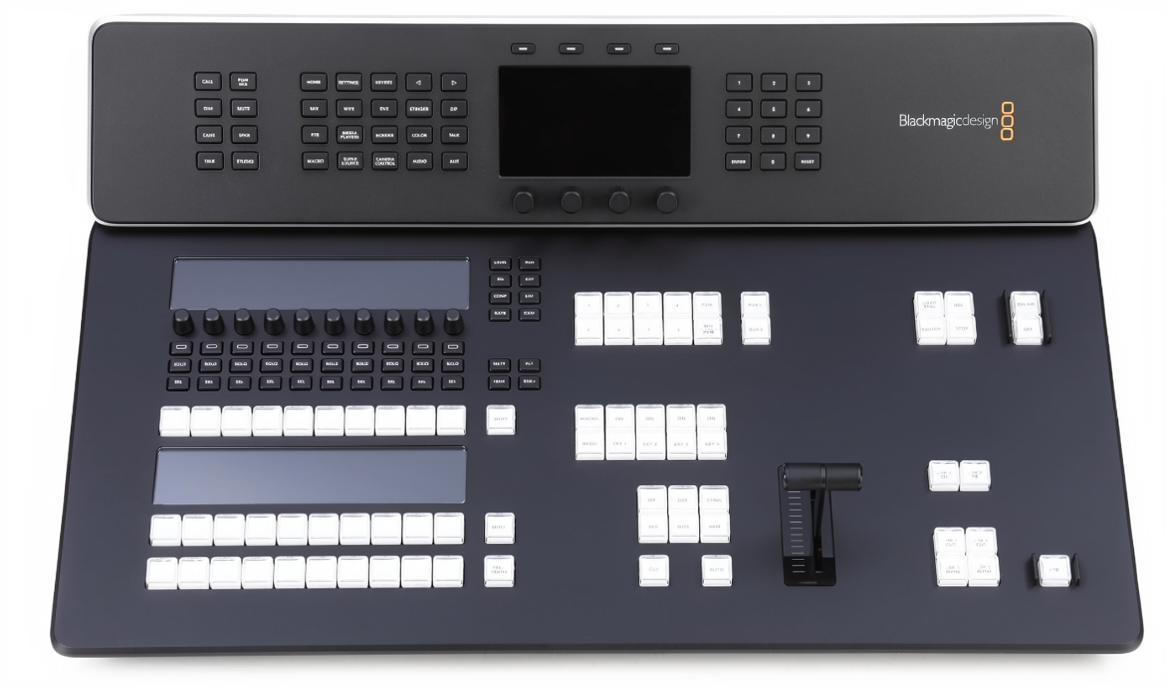

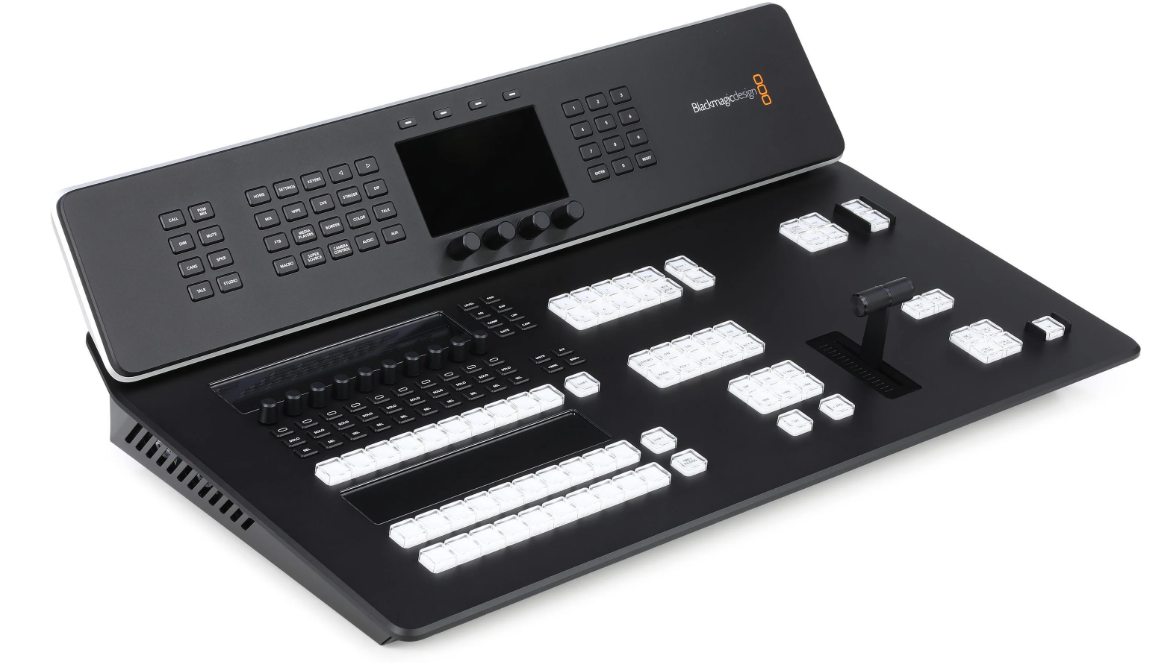

Blackmagic Design ATEM Television Studio HD8 ISO 2TB 8-channel Video Switcher

Live production video switching in locations of all sizes is made simpler with the all-in-one Blackmagic Design ATEM Television Studio HD8 ISO 2TB compact switcher and control panel. A total of eight standards-converted 3G-SDI inputs and outputs with embedded audio capture deliver stunning camera quality, while four chroma keyers, SuperSourcing, media players, and more back up your footage with a professional-grade visual sheen. This more advanced ISO (isolated) model supports recording input to individual files and remote/local Ethernet/internet connections for all eight cameras, and adds 2TB of M.2 internal flash storage. Its intuitive array of buttons enables comprehensive previewing, transitioning, audio processing, and beyond, keeping all of your controls at hand. Endless effects and organizational features make the HD8 ISO 2TB a Music Bliss favorite, especially for its real-time DVE scaling and ability to resize multiple feeds. And the included ATEM Software Control unlocks remote access to the onboard Fairlight audio mixer, providing additional equalization and compression capabilities to balance the right audio signal every time. Compact and capable, the Blackmagic Design HD8 ISO 2TB is sure to take your TV studio-scale production to the next level.

FEATURES

• Live production compact video switcher and control panel with 2TB of internal storage

• 8 embedded audio 3G-SDI I/O for up to 8 video cameras

• 2 x 3G-SDI aux outputs connect projectors and presenting monitors

• SDI and HDMI/SDI Multiview connections allow for multi-source monitoring

• Main SDI Program Outfit simplifies the recording and transmission of video feeds

• Audio connections include control room and studio speaker I/O, talkback/headset, hi-fi stereo, and balanced XLR analog audio

• Talkback expansion port is compatible with Clear-Com and RTS systems

• 4-port Ethernet bank for computer-/internet-based connections

• Microphone expansion availability with MADI audio ports

• Easily time-code with dedicated I/O

• 2 USB-C jacks allow for flash disk recording and mobile phone streaming

• Broadcast system sync-ability with classic 4-pin 12V DC power and standard IEC 100-240V AC power connections

• Large status display screen with nearby master settings controls

• Numeric keypad allows for parameter entering for transition duration adjustments, etc.

• Audio control module powered by onboard Fairlight mixer with EQ, compression, limiting, expanding, noise gating, panning, and AFV

• Bus selections set inputs to processing for keyers and DVEs

• Preview/Program buttons let you view feeds and transitions before airing them

• Transition controls with large T-bar fader to automatically and manually manipulate transition speed, respectively

• Dedicated grid controls for green screen keys and graphic cueing

• Fade-to-black switch ends program feeds with a classic fade

• Transitions include fade, dip, wipe, DVE push/squeeze, graphic wipe, and more, with customizable parameters

SPECIFICATIONS

• Model : ATEM Television Studio HD8 ISO 2TB

• Type : HD Live Production Video Switcher with ISO Recording

• Channels : 8 x Video Inputs, 12 x Video Outputs

• Video Format : Up to 1080/60fps

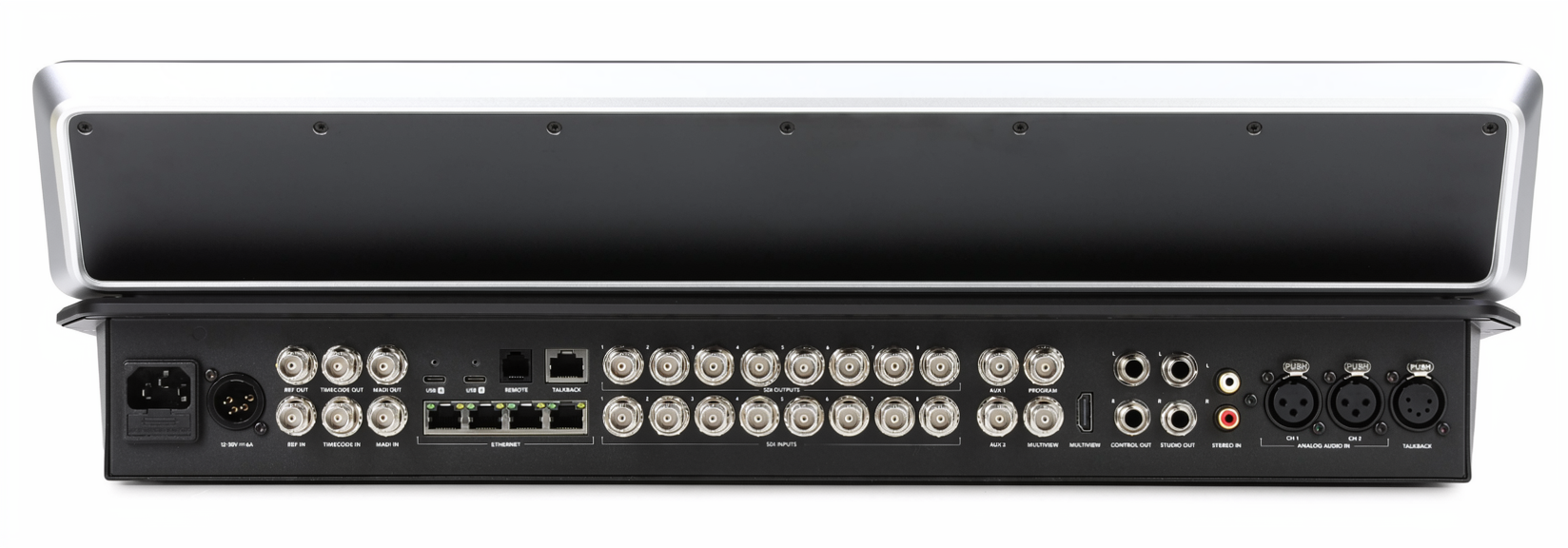

• Video Inputs : 8 x BNC (3G-SDI)

• Video Outputs : 8 x BNC (3G-SDI aux), 3 x BNC (3G-SDI aux/program), 1 x HDMI (multi-view), 1 x BNC (SDI multi-view)

• Audio Inputs : 2 x XLR, 1 x Dual RCA Stereo

• Audio Outputs : 4 x 1/4"

• Sync : 2 x BNC (ref in, out), 2 x BNC (timecode in, out), 2 x BNC (MADI in, out)

• Headphones : 1 x 5-pin XLR (rear, talkback)

• USB : 2 x USB-C

• Other I/O : 4 x RJ-45 (10G ethernet), 1 x RJ-45 (external talkback), 1 x RJ-12 (RS-422)

• Software : ATEM Software Control Panel (mac/windows)

• Features : Built-in 2TB Internal Storage, Transition Lever, LCD Display, & 2 x Media Players

• Power Source : Standard IEC AC Input, 4-pin XLR DC Input

• Height : 6.38"

• Width : 23"

• Depth : 14.8"

• Weight : 14.9 lbs
