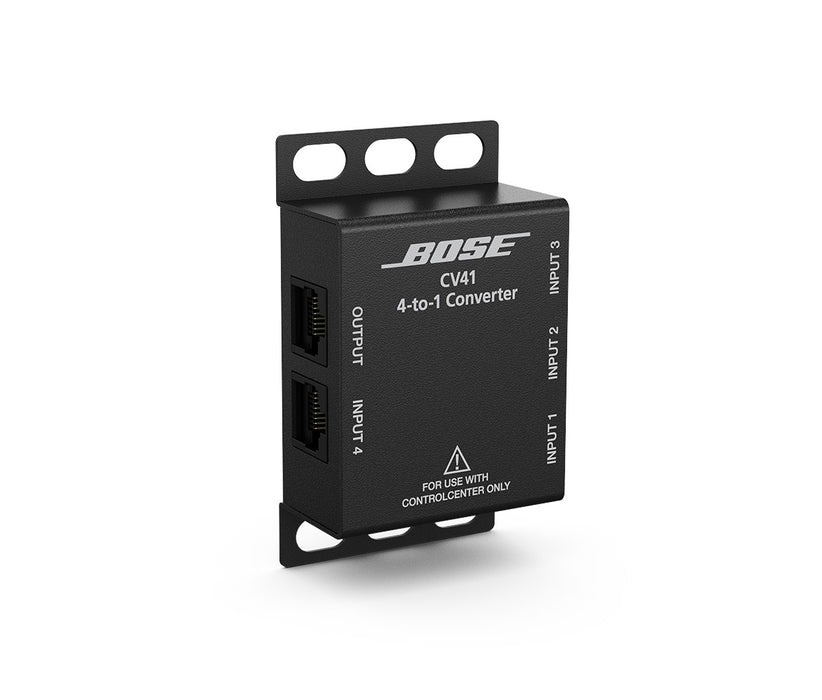

Bose ControlCenter CV41 4-to-1 Converter for PowerShare Systems

The Bose ControlCenter CV41 converter simplifies wiring when using multiple ControlCenter CC-1 zone controllers with a PS602 or PS604 PowerShare adaptable power amplifier. The CV41 converter supports up to four CC-1 controllers allowing each CC-1 to homerun to the amplifier.

FEATURES

• Homerun to PowerShare amplifiers – Allows up to two CC-1 controllers (PS602) or up to four CC-1 controllers (PS604) to be homerun
• directly to PowerShare amplifiers.
• Supports upstream Daisy-Chaining – CC-1 zone controllers can
• first be daisy-chained prior to connecting to the CV41. Any combination of daisy-chaining and homeruns is supported.

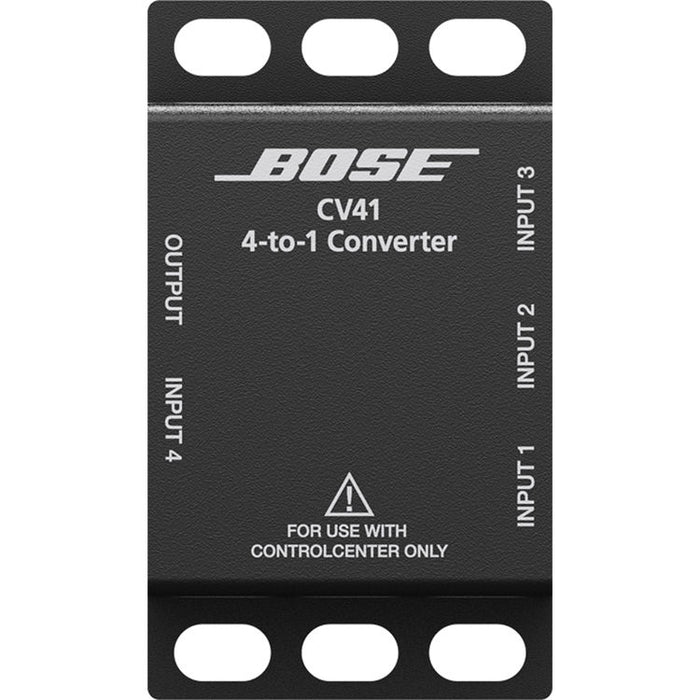

• Cat 5 wiring – Five RJ-45 ports (TIA/EIA 568B) accomodate four
• CC-1 inputs and one master output back to the PS602 or PS604
• PowerMatch amplifier.
• Rack-Mountable – The CV41 stands 2U tall and can be attached to
• standard rack rails for secure mounting

SPECIFICATIONS

• Electrical
• Connectors Five (5) RJ-45, TIA/EIA 568B wiring standard
• Settings None
• Type Passive device
• Cable Requirement Cat 5
• Maximum Cable Length 609 m (2000 ft) from farthest CC-1 to amplifier
• Phsyical
• Color Black
• General
• Product Code 768928-0010 ControlCenter CV41 4-to-1 converter
• Compatible Witth PowerShare PS604 adaptable power amplifier
• PowerShare PS602 adaptable power amplifier
