dbx 223xs 2-Way, Mono 3-Way Crossover
Free Shipping

dbx 223xs 2-Way, Mono 3-Way Crossover

Stereo 2-Way, Mono 3-Way Crossover

dbx 223xs 2-Way, Mono 3-Way Crossover

Availability: Available! Requires 24 hours for Stock Arrangement.

FREE SHIPPING WHOLE MALAYSIA

Product Description

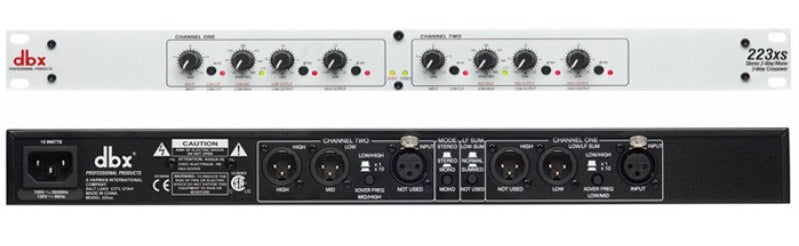

dbx 223xs 2-Way, Mono 3-Way Crossover (223xs)

dbx 223xs 2-Way, Mono 3-Way Crossover


The dbx 223xs is a fully versatile crossover that's perfect for any professional live sound rig. The 223xs is capable of either 2-way stereo or 3-way mono operation. Equipped with 24dB/octave Linkwitz-Riley filters, the 223xs gives you the steep crossover bands you demand. Each output features an independent level control and phase inversion switch, as well as a 40Hz low-cut filter. For use with a subwoofer, the 223xs also includes a low-frequency output summing option.


FEATURES
  • 2-way stereo, 3-way mono operation
  • 24dB/octave Linkwitz-Riley filters
  • XLR inputs and outputs
  • Low-frequency summing for subwoofer output
  • x10 range switch on both channels
  • 40Hz highpass (low-cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • Stereo/Mono status LEDs indicate the selected mode

SPECIFICATIONS
  • Number of Channels:2
  • Modes:2-way (Stereo), 3-way (Mono)
  • Filter Types:Linkwitz-Riley
  • Filters:24dB/octave
  • Crossover Frequencies - Stereo:45Hz-960Hz/450Hz-9.6 kHz
  • Crossover Frequencies - Mono:45Hz-960Hz/450Hz-9.6 kHz
  • Inputs:2 x XLR
  • Outputs:4 x XLR
  • Rack Spaces:1U
  • Height:1.75"
  • Depth:6.9"
  • Width:19"
  • Weight:3.7 lbs.

Dimension Packaging Weight : 3.0 kg
