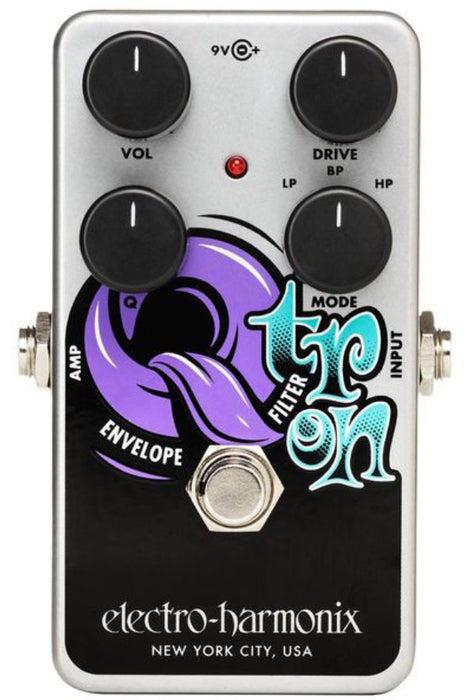

Electro Harmonix Nano Q-Tron Envelope Filter Pedal (Electro-Harmonix / EHX)

If you’re chasing Garcia-style auto-wah sounds but are overwhelmed by the full-sized Q-Tron+ pedal’s complex control layout, the Electro-Harmonix Nano Q-Tron offers the perfect compromise. Like its pedalboard-hogging predecessor, the Nano is an envelope follower that produces dynamic-controlled wah-wah sounds. The harder you pick, the wider the frequency sweep; the softer you pick, the more subtle the effect will be. Dialing in your sound is easy with the Nano Q-Tron — a few twists of its four knobs is all you need to unleash an avalanche of funk-infused, jam-band-ready quack. You also get true-bypass switching and a rugged die-cast chassis that’s compact enough for the smallest of pedalboards. EXH is a pioneer of envelope-controlled filter effects, and the Nano springboards off that deep legacy. Players searching for a top-shelf dynamic wah effect — in a pedalboard-friendly package — will find everything they need in the Nano Q-Tron.

FEATURES

• Smooth envelope filter pedal for classic auto-wah sounds
• Internal envelope follower analyzes your playing dynamics to determine the intensity of the wah effect
• Volume knob controls your output — great for level matching between dry and effected signals
• Drive control sets your sensitivity and filter sweep range
• Q control sets the filter’s bandwidth from smooth to all-out funky
• Selectable lowpass, band-pass, or highpass filters
• True-bypass switching doesn’t color your tone when the pedal isn’t in use
• Rugged Nano-sized chassis is compact enough for the smallest of pedalboards

SPECIFICATIONS

• Pedal Type:Envelope Controlled Filter
• Analog/Digital:Analog
• Inputs:1 x 1/4" (instrument)
• Outputs:1 x 1/4"
• Switches:Filter Mode Rotary Switch (LP/BP/HP)
• Controls:Drive
• Adjustable Q:Yes
• True Bypass:Yes
• Power Source:9V DC power supply (sold separately)
• Power Usage:10mA
• Batteries:1 x 9V (included)
• Height:2.1"
• Width:2.75"
• Depth:4.5"
