Flock Audio Patch XT 192-point Digitally Controlled Analog Patchbay

The Flock Audio Patch XT is a digitally controlled analog patchbay with hardware and software components that allow you to control equipment chain routings throughout your studio with flexibility and recall capabilities never before possible — no patch cables required! The hardware consists of a 192-point analog patchbay in a rugged 3U chassis with I/O arranged on rear-panel DB-25 connectors. Control over patchbay assignments and routings is carried out from either the Patch App or the Patch App DX, easy-to-use Mac/Windows/iOS software that communicates with the patchbay via USB or Cat 6 Ethernet. In Patch XT, no audio is ever converted to digital — all channels running through it remain in the analog domain and only the patchbay routings are altered digitally. Patch XT gives you the advantages of both worlds — pure analog audio with full digital, computer-based control. This allows Patch App and Patch App DX routings to be instantly stored and recalled.

FEATURES

• No patch cables required

• 32 channels of onboard 48V phantom power

• Create, store, and recall routings

• Advanced multing capabilities

• User warning notifications

• MacOS and Windows software compatible

• iOS software compatible (Patch App DX only)

• Achieve complex routings in seconds

• Front-panel I/O with combi jacks

• 192-point rear-panel I/O DB-25 connectors

• Multiple unit expansion

• Software and firmware updates

• USB/Ethernet host control

SPECIFICATIONS

• Number of Points : 192

• Format : Rackmount

• Connector Types - Front : 2 x XLR-1/4" combo (inputs 1-2), 2 x XLR (outputs)

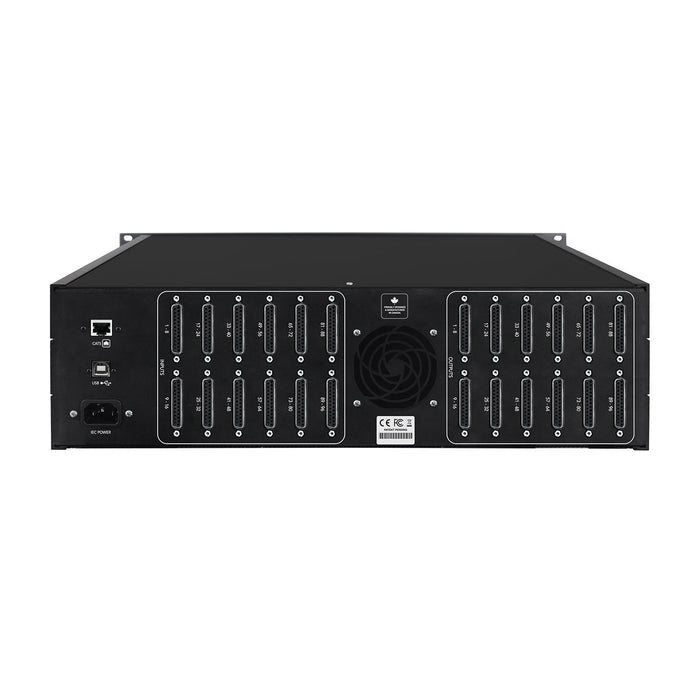

• Connector Types - Back : 12 x DB-25 (inputs), 12 x DB-25 (outputs), 1 x RJ45

• Analog/Digital : Analog

• USB : 1 x Type USB-B

• Height : 5.25"

• Width : 19"

• Depth : 12.75"

• Weight : 25 lbs.
