Product Description

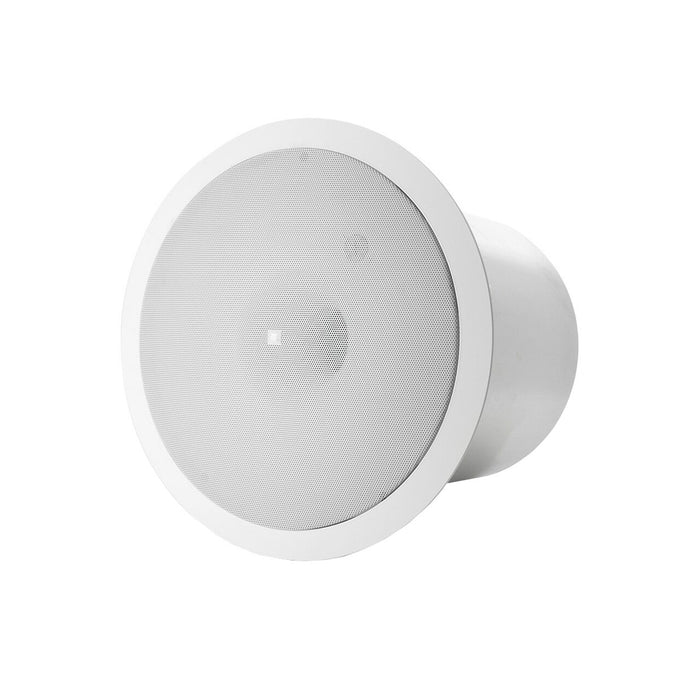

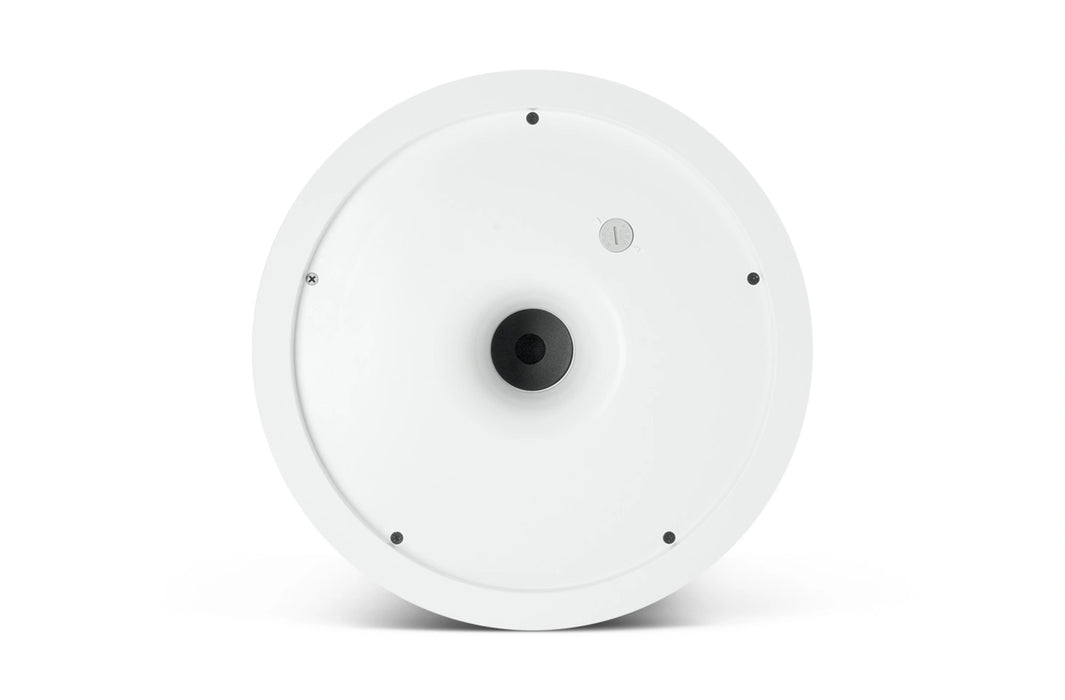

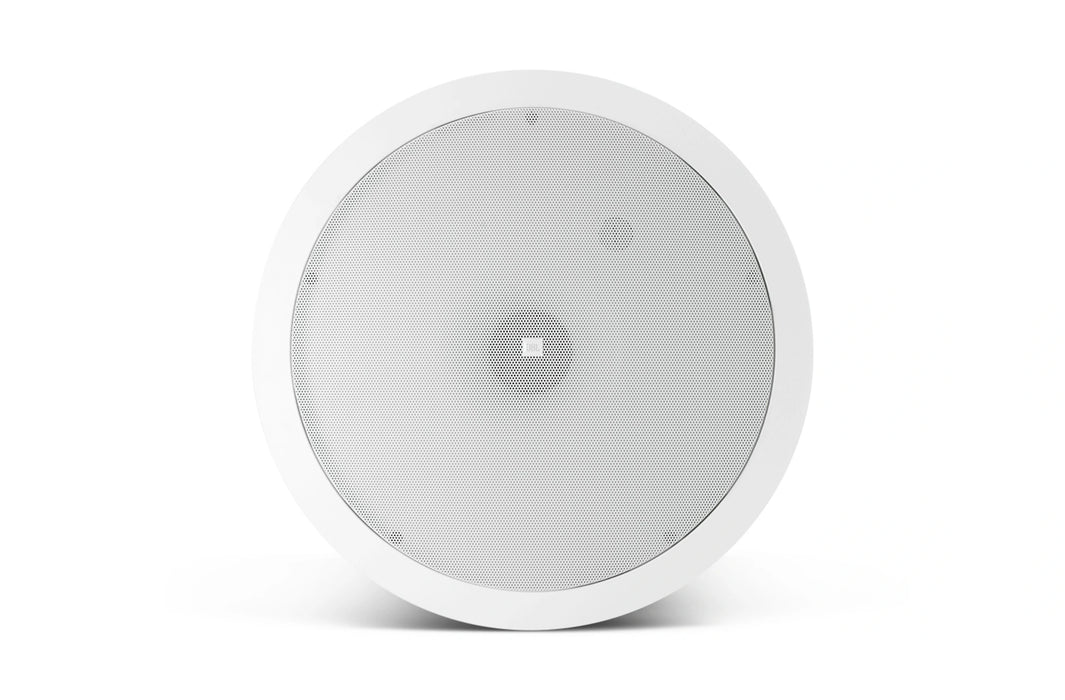

JBL Control 19CS 8" 200W 8-Ohm In-Ceiling Subwoofers - White (Control19CS-WH)
JBL Control 19CS 8" 200W 8-Ohm In-Ceiling Subwoofers - White (Control19CS)
The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
FEATURES
- Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
SPECIFICATIONS
- Frequency Range
- 42 Hz - 200 Hz
- Power Rating
- IEC System Long-Term Ratings (low-Z direct):
- 200 Watts Continuous Program Power
- 100 Watts Continuous Pink Noise (400W peak), 100 hrs
- Sensitivity
- 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
- Coverage Angle
- 180° conical
- Maximum SPL (1m)
- 109 dB (low-impedance, 115 dB peak, center of ceiling)
- 115 dB (low-impedance, 121 dB peak near corner)
- Impedance
- 8 ohms
- Input Connectors
- Removable locking connector with screw-down terminals.
- Drivers
- 200 mm (8.0 in) subwoofer
- Color
- White
- Safety Agency
- Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan
- formed steel (included "blind-mount")
- Baffle/Rim
- Medium impact polystyrene, fire rated UL94V-0
- Ceiling Cutout Size
- 305 mm (12.0 in) diameter (cardboard cutout template included)
- Included Accessories
- C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
- Plenum Usage
- Yes, backcan included
- Enclosure Material
- Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
- Overload Protection
- Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
- Outside Dimensions (H x Dia)
- 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Product Dimension Shipping Weight: 12.0 kg
