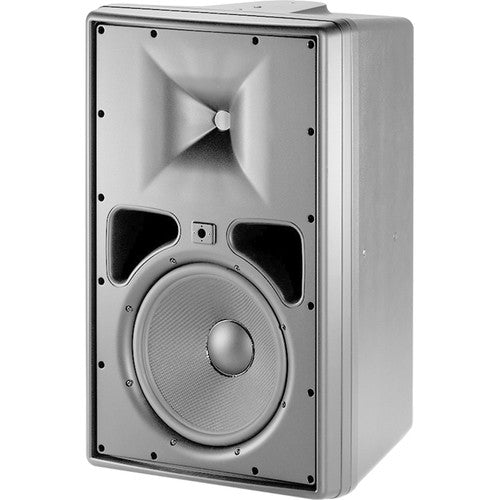

JBL Control 31 10" 2-Way High-Output Indoor-Outdoor Monitor Speaker - White (Control31)

The white Control 31 Speaker from JBL utilizes high-power components, computer optimized horn, and a complex network to achieve a smooth, powerful high-fidelity performance, extended bandwidth, and a well-controlled and defined coverage from a compact loudspeaker. The Control 31 features a 10" low-frequency driver with a pure butyl rubber surround, 2" high-temperature fiberglass voice coil for high sensitivity, high-output capability, and stability. The high-output, high-frequency compression driver has a unique patented design, high-temperature polymer diaphragm, and fluid-cooling for high-output levels with low distortion. This passive speaker has a 250W capability plus a 150W transformer for 70V or 100V distributed lines with 8 Ohms thru bypass. With a WeatherMax multi-layer grille, it can be installed both indoors and outdoors, and a InvisiBall mounting system allows for quick and easy installation.

FEATURES

• Components:
  - 250 mm (10 in) woven fiberglass cone LF driver with 52 mm (2 in) voicecoil.
  - High-output 2414H-C compression driver with 25 mm (1 in) exit, unique (patented) design and high-temperature polymer diaphragm.
• 250 Watt capability (in 8Ω thru setting), plus 150 Watt transformer for 70V or 100V distributed lines,
• with 8Ω thru bypass.
• Extended bandwidth, extremely smooth frequency response
• Highly outdoor-capable design with included WeatherMax™ multi-layer grille and optional marine-kit grille for salt-air environments.
• 110° x 110° symmetrical coverage.
• Includes InvisiBall® mounting hardware plus ten 6 mm attachment points for suspension and optional U-bracket.
• Included sealed input panel cover and screw-down input terminals for secure connection.

SPECIFICATIONS

• Frequency Range (-10dB) : 33Hz – 19kHz
• Frequency Response (±3 dB) : 42Hz – 14kHz
• Power Ratings : 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs.
• Maximum SPL (1m) : 116 dB continuous (123 dB peak)
• Sensitivity : 92 dB
• Coverage Angle : 110° x 110°
• Directivity Factor (Q) : 5.7, averaged 500 Hz to 10 kHz
• Directivity Index (DI) : 7.3 dB, averaged 500 Hz to 10 kHz
• Impedance : 8 ohms
• Crossover Type : 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry.
• Transformer Taps : 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal
• Recommended High-Pass : Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation
• Drivers : LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece. | HF: JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled.
• Enclosure : High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density.
• Grille : Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier.
• Mounting hardware : InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel.
• Outdoor Capability : IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments.
• Input Connectors : Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
• Safety Agency : Transformer is listed per UL1876
• Colors : Black (RAL9004) or white (-WH, RAL9003)
• Dimensions (H x W x D) : 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
• Net Weight (each) : 18.8 kg (41.5lb)
