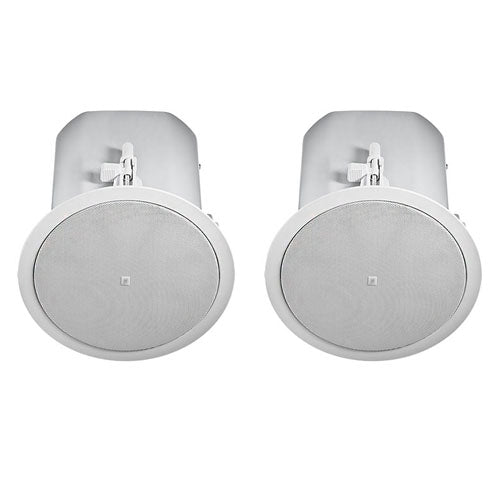

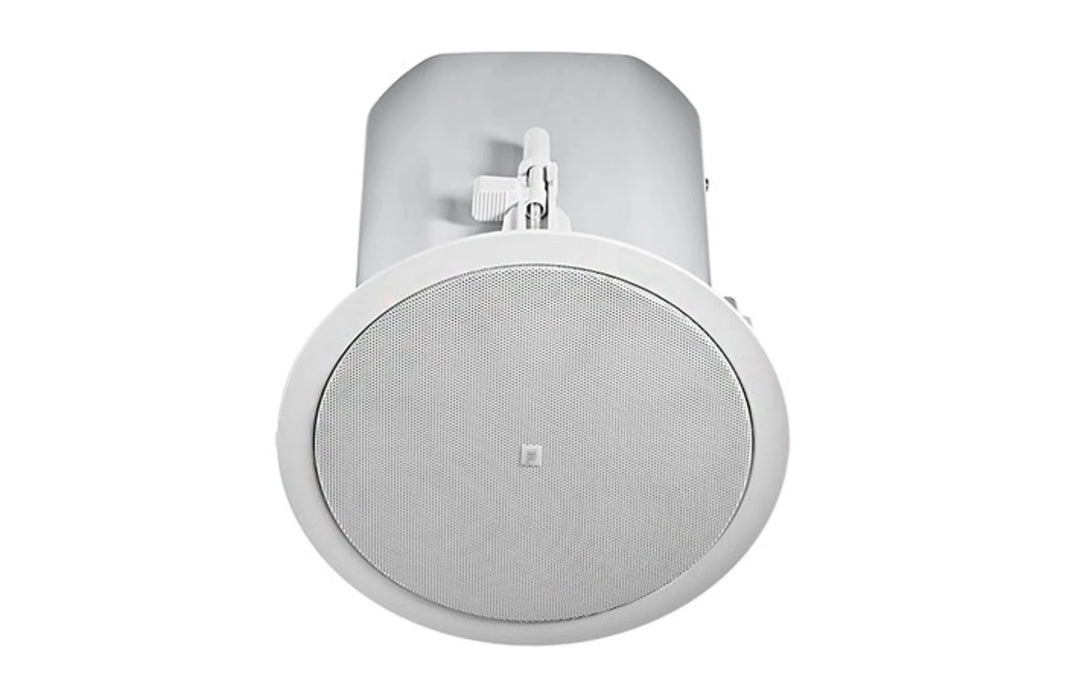

JBL Control 45C/T 5.25" 2-Way Coaxial Ceiling Loudspeaker - Pair (Control45C/T)

The Control 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

FEATURES

• Extremely consistent 120° broadband pattern control featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology.
  - Very consistent, full-range coverage of listening area while providing a small ceiling footprint.
  - Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without
• sacrificing performance.
• Coaxial design featuring:
  - 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.
  - 20 mm (.75 in) soft-dome tweeter on 210 mm (8.25 in) diameter wave guide.
• Bass extension down to 55 Hz.
• 8 ohm and 70V/100V operation.

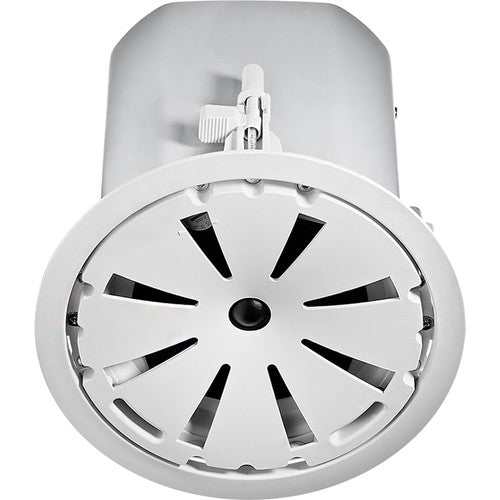

• Integrated backcan for easy “blind-mount” install. Packaged with grille and tile rails for easy installation.

SPECIFICATIONS

• Frequency Range (-10dB) : 55 Hz – 20 kHz
• Frequency Response (±3 dB) : 80 Hz – 17 kHz
• Power Rating : IEC System Long-Term Ratings (low-Z direct): | 150 Watts Continuous Program Power | 75 Watts Continuous Pink Noise (300W peak), 100 hrs
• Sensitivity : 88 dB (1kHz - 16 kHz)
• Coverage Angle : 120° conical, constant directivity
• Directivity Factor (Q) : 5.6
• Directivity Index (DI) : 7.3 dB
• Maximum SPL (1m) : 107 dB (low-impedance, 113 dB peak) | 106 dB (top 70V/100V tap)
• Impedance : 8 ohms (in bypass mode)
• Transformer Taps : 60W, 30W, 15W, (& 7.5 W @ 70V), plus transformer bypass
• Transformer Insertion Loss : 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
• Drivers : LF Driver: 130 mm (5.25 in) | HF Driver: 20 mm (0.75 in)
• Input Connectors : Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm). Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
• Knockouts : Two (top, and side)
• Safety Agency : Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.
• Dimensions : 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth
• Ceiling Cutout Size : 220 mm (8.75 in)
• Ceiling Thickness Range : Accommodates tiles / drywall up to 70 mm (2.75 in) thick
• Net Weight : 3.9 kg (8.6 lb)
• Shipping Weight : 8.6 kg (19.0 lb), pair pack
• Included Accessories : C-ring support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), press-in grille, knockout strain relief, cutout template, paint shield, 2 removable locking multi-pin connectors.
• Optional Accessories : MTC-26NC New Construction Bracket MTC-26MR Mud Ring Construction Bracket
• Color : White

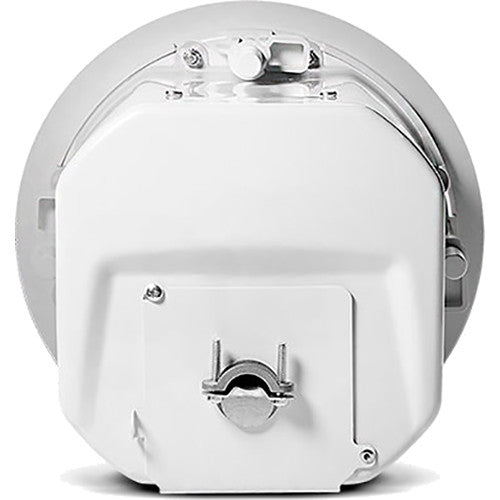

• Backcan : formed steel (included "blind-mount")
• Baffle/Rim : ABS baffle with UL94-V0 flame class fire rating.
