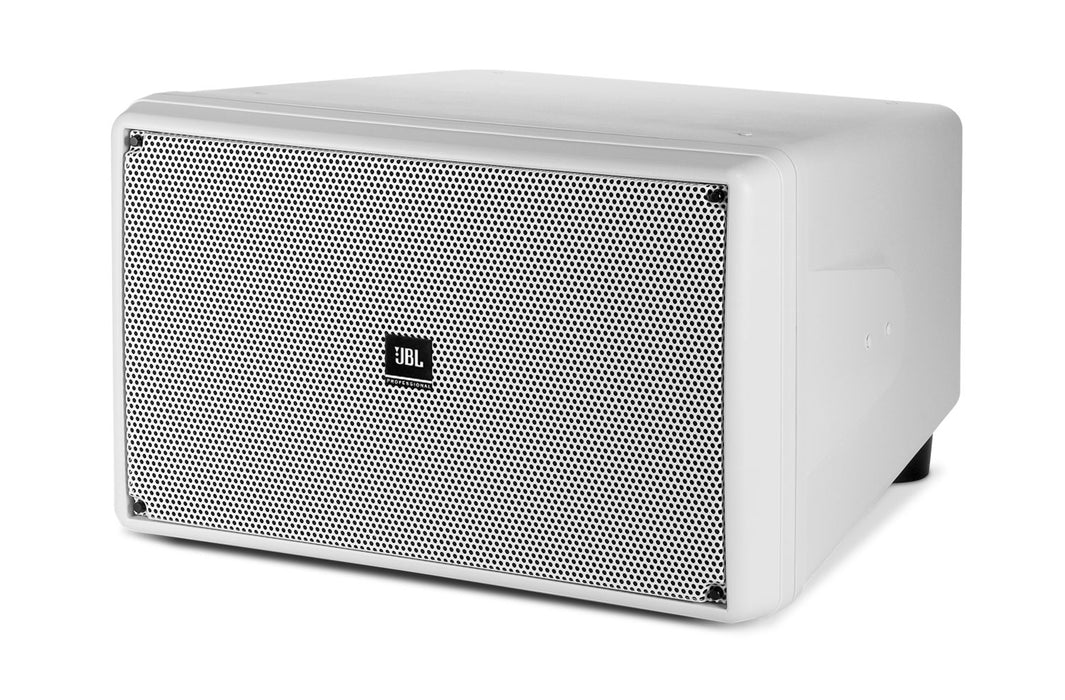

JBL Control SB2210 Dual 10” Compact Subwoofer - White

The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

FEATURES

• 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
• 500 Watts Power handling
• Frequency Response Down to 38 Hz
• 13 x M6 Insert Points Including Inserts for Optional U-Bracket
• Compact, Low Profile Design

SPECIFICATIONS

• Frequency Range (-10dB) : 38 Hz - 500 Hz
• Frequency Response (-3 dB) : 48 Hz - 95 Hz
• Power Rating : 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage : 60.0VRMS (2 hrs), 120V peak
• Sensitivity : 95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
• Maximum SPL (1m) : 122 dB in half-space (2π loading)
• Impedance : 8Ω
• Minimum Impedance : 7.2Ω at 160 Hz
• Recommended Filter : 45 Hz, 24 dB/oct high-pass filter
• Drivers : Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
• Enclosure : High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance. Grille Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
• Outdoor Capability : IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.

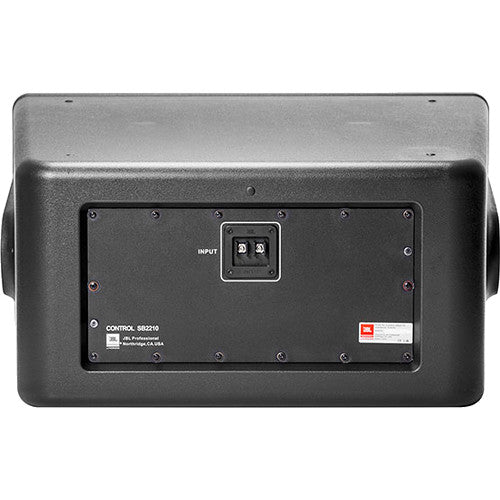

• Input Connectors : Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
• Safety Agency : ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
• Colors : Black or white (-WH)
• Dimensions (H x W x D) : 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
• Net Weight (each) : 23.31 kg (51.4 lb)
