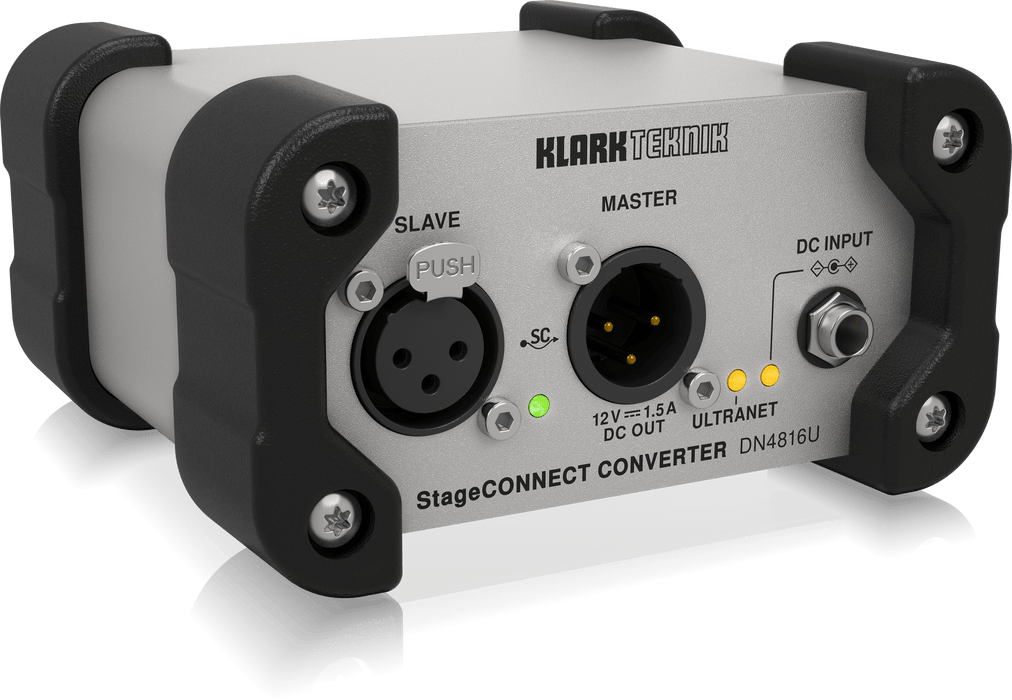

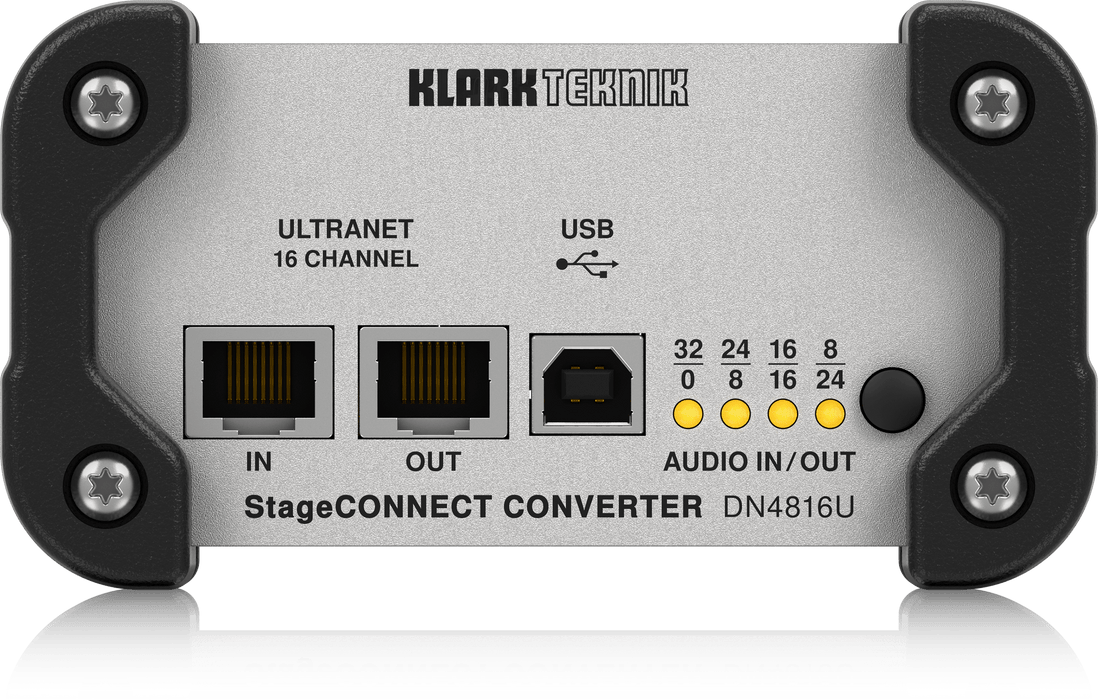

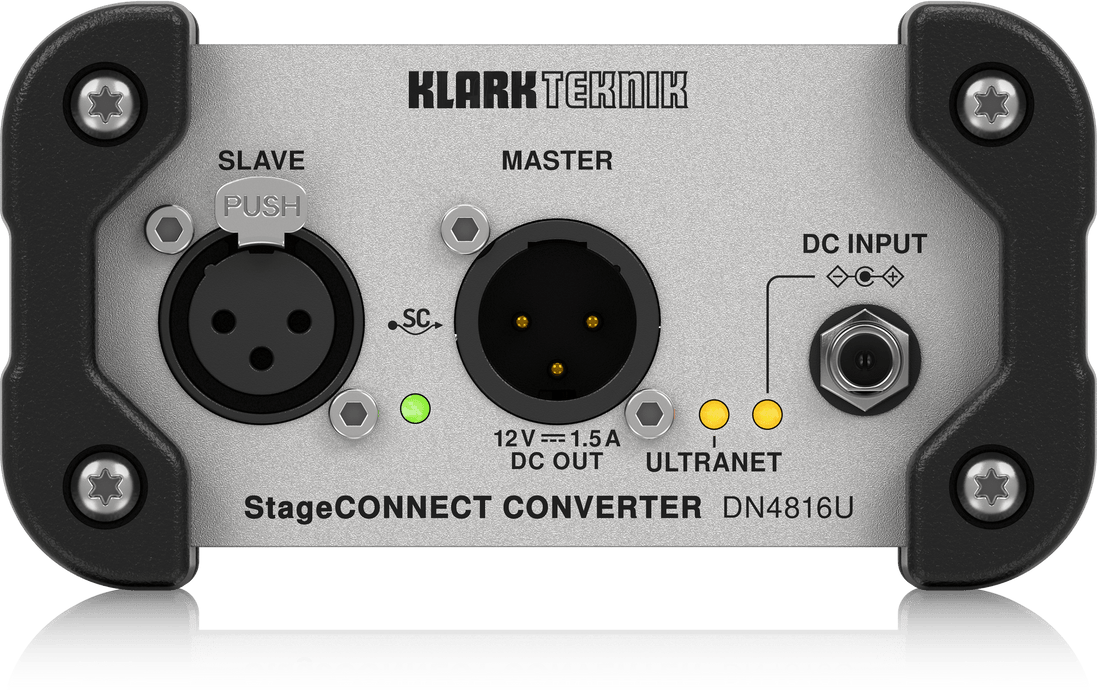

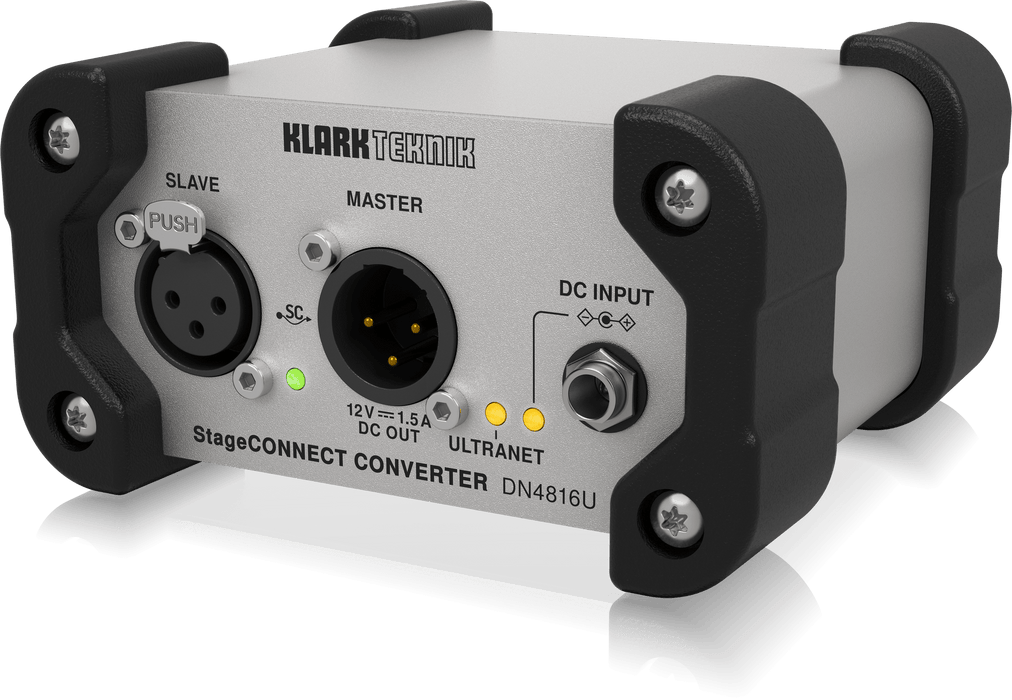

Klark Teknik DN4816U StageCONNECT Interface Bridge

Klark Teknik’s DN4816U StageCONNECT DI box interface is an incredibly low-latency converter that makes interfacing your StageCONNECT devices, Behringer Ultranet systems, and multi-channel USB audio a breeze! The DN4816U transmits StageCONNECT audio with a lightning-speed sub-millisecond latency, all in crystal-clear 24-bit uncompressed PCM 44.1/48kHz. If you’re looking to hook up different clock domains, this converter allows asynchronous 32-channel sample rate conversion with a wide 140dB dynamic range and a quick 0.4ms latency. Add in the bidirectional audio configurations, Master and Slave ports, and StageCONNECT mixing console/stagebox/hub capabilities, and the DN4816U is an impressively powerful StageCONNECT converter that Music Bliss audio engineers find is more than up to the challenge of handling all of your StageCONNECT and Behringer Ultranet devices!

FEATURES

• Compact interface for hooking up StageCONNECT to Behringer’s Ultranet and multi-channel USB audio
• Transmits StageCONNECT 32-channnel audio at lightning-fast sub-millisecond latencies
• 32-channel sample rate conversion for connecting to different clock domains/sample rates with a wide 140dB dynamic range and 0.4ms latency
• Bidirectional audio configurations for enhanced versatility
• Master and Slave ports make it easy to exchange multi-channel audio with other StageCONNECT devices or sending StageCONNECT/USB signals to P16 mixers and Turbosound iQ speakers
• Slave mode enables use with StageCONNECT mixing consoles, stageboxes, and hubs
• Ultranet-to-StageCONNECT/USB stream compatibility

SPECIFICATIONS

• Channels:Interface Bridge
• Digital Inputs:1 x RJ45, 1 x XLR
• Digital Outputs:1 x RJ45, 1 x XLR
• Other I/O:USB-Type B
• Height:2.5"
• Depth:4.7"
• Width:5.6"
