MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB
Free Shipping Special Store Promotion

MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB

112-channel Hybrid Thunderbolt/USB 2.0/iOS Audio Interface with Routing, Format Conversion, Mixing, and Networking Functionality - Mac/PC

MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB

Availability: Pre-Order | On Request | Special Order Arrangement
Pre-Order: Arrive 3-4 weeks

FREE SHIPPING WHOLE MALAYSIA

Product Description

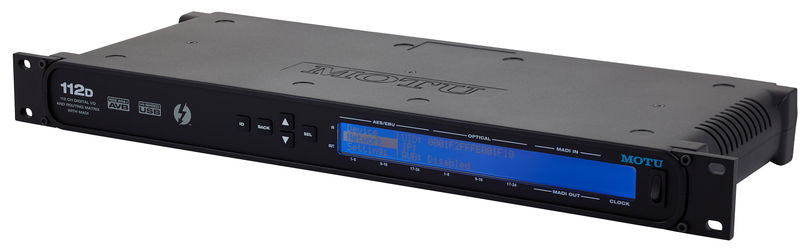

MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB (MB-9345)

MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB


The MOTU 112D is an incredibly flexible device. A digital audio interface, router, format converter, and stand-alone mixer — all in a roadworthy, rackmount 1U chassis, the 112D connects to your host computer through ultra-fast Thunderbolt technology, AVB Ethernet, or class compliant, high-speed USB 2.0 (with USB 3.0 and iOS compatibility). The 112D rocks 24 channels of AES/EBU digital I/O, 24 channels of ADAT optical digital I/O and 64 channels of MADI — that's a whopping total of 112 simultaneous digital I/O channels! Freely route anything, anywhere — all with near-zero latency. At Music Bliss, we've seen our share of feature-packed interfaces, but the 112D may just take the cake. Whether you work your audio magic in the studio or onstage, you owe it to yourself to check out the MOTU 112D.


VIDEO

FEATURES
112 simultaneous digital audio channels:
  • 24 channels of AES/EBU I/O
  • 24 channels of ADAT optical I/O
  • 64 channels of MADI I/O
Universal computer connectivity:
  • Thunderbolt
  • AVB Ethernet
  • Audio-class-compliant high-speed USB 2.0 (USB 3.0/iOS compatible)
  • iPad/iOS (w/ Camera Connection Kit)
  • On-board 32-bit floating point DSP with big-console-style mixing and effects
  • Flexible 48-input digital mixer with 12 stereo busses and DSP effects
  • Web app control of DSP, mixing, device settings, and network audio routing
  • Discovery app and web app software works alongside your host audio software
  • Web app control from laptop, tablet, or smartphone connected to your LAN by wire or Wi-Fi
  • Flexible system expansion and audio networking with ultra-low network latency
  • Compatible with iPad/iOS (w/ Camera Connection Kit) and other USB 2.0 audio class-compliant hosts

SPECIFICATIONS
  • Computer Connectivity:1 x Thunderbolt, 1 x USB 2.0 Type B
  • Form Factor:Rackmount
  • Simultaneous I/O:112 x 112
  • Built In DSP/FX:Yes
  • Digital Inputs:6 x Optical (24 ch ADAT, 24 ch SMUX), 3 x DB-25 (AES/EBU In), 1 x BNC (MADI)
  • Digital Outputs:6 x Optical (24 ch ADAT, 24 ch SMUX), 3 x DB-25 (AES/EBU Out), 1 x BNC (MADI)
  • Data I/O:Ethernet
  • Clock I/O:In, Out/Thru
  • OS Requirements - Mac:1GHz Intel CPU or higher, 4GB RAM or more recommended, OS X 10.8 or later, iOS/iPad compatible (with camera connection kit)
  • OS Requirements - PC:1GHz Intel compatible processor or higher, 4GB RAM or more recommended, Windows 7 or later, USB 2.0 audio class compliant hosts
  • Rack Spaces:1U
  • Height:1.75"
  • Width:19"

Dimension Packaging Weight : 4.8 kg
