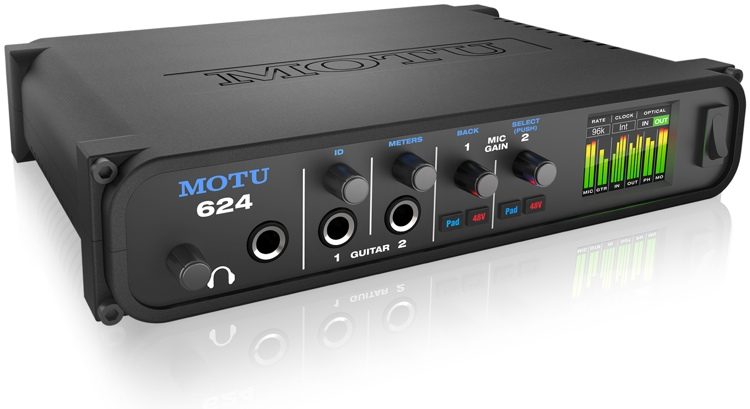

MOTU 624 16x16 Thunderbolt / USB 3.0 Audio Interface with AVB

The MOTU 624 hybrid audio interface packs high-end sound, ultra-low latency, and generous I/O into a portable half-rack unit. ESS Sabre32 DAC technology delivers an impressive 123dB of dynamic range on balanced, DC-coupled analog outputs. Experience round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB. 32 total channels of audio I/O make connecting your instruments, microphones, and outboard gear easy. An onboard DSP mixer provides latency-free routing, along with an array of powerful digital effects. Use the 624 as a standalone mixer, or control it wirelessly from your tablet, smartphone, and laptop. Both onstage and in the studio, the MOTU 624 delivers.

FEATURES

• 16-in/16-out hybrid audio interface for studio and live sound
• ESS Sabre32 DAC technology delivers 123dB of dynamic range and superb audio quality
• Optimized drivers yield round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB
• 2 pristine microphone preamps offer clear and transparent sound
• 8 channels of ADAT optical digital I/O expands your system with additional gear
• Onboard 32-bit floating point DSP-driven digital mixer with EQ, dynamics, and effects provides latency-free routing
• Hook up a wireless router and take complete control of the onboard mixer from your laptop, tablet, or smartphone
• MOTU's AVB audio networking expands your system with additional AVB-equipped audio interfaces
• Create an AVB network via optional AVB Switches with support for up to 5 compatible interfaces

SPECIFICATIONS

• Computer Connectivity:Thunderbolt, USB 3, AVB Ethernet
• Form Factor:Half Rack / Desktop
• Simultaneous I/O:16 x 16
• A/D Resolution:24-bit/192kHz
• Number of Preamps:2 x mic, 2 x instrument
• Phantom Power:2 channels
• Analog Inputs:2 x 1/4" (Hi-Z instrument), 4 x 1/4" (line in), 2 x XLR
• Analog Outputs:4 x 1/4" (line out), 2 x 1/4" (main out)
• Digital Inputs:1 x Optical Toslink (ADAT, SMUX, S/PDIF)
• Digital Outputs:1 x Optical Toslink (ADAT, SMUX, S/PDIF)
• Headphones:1 x 1/4"
• USB:1 x Type B 3.0
• Data I/O:Thunderbolt 2, AVB Ethernet
• Software:MOTU Discovery App (included), AudioDesk 4.0 (download)
• OS Requirements - Mac:OS X 10.8 or later, iOS
• OS Requirements - PC:Windows 7 or later, Android
• Rack Spaces:0.5U Half Rack
• Power Supply:12-18V DC power supply
• Height:1.75"
• Width:8.6"
• Depth:7"
• Weight:2.2 lbs.
