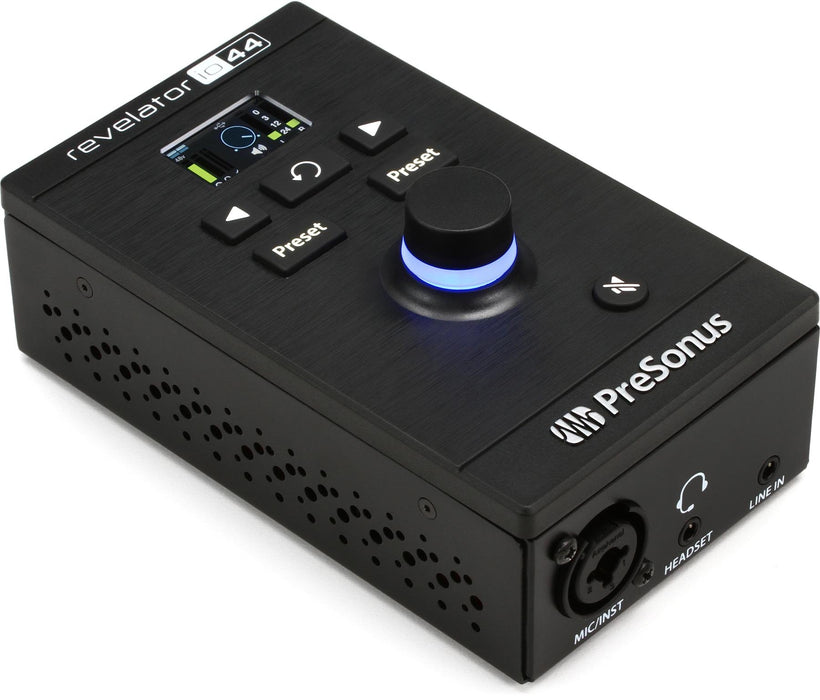

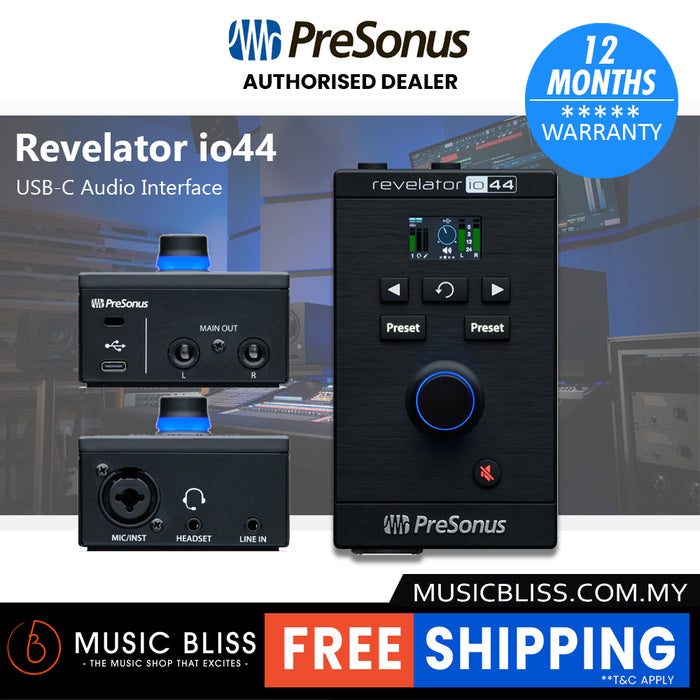

PreSonus Revelator io44 USB-C Audio Interface

Create a high-end recording studio right at home — or anywhere else — with Revelator io44. Whether you want to connect a professional XLR microphone, a guitar, a DJ mixer, or your gaming headset, Revelator io44 has all the inputs and outputs you need to record… even a built-in mixer that lets you blend audio from multiple applications. Processing is available on every analog input, so you’ll sound smooth and polished in your performances and recordings.

Guitarists, singers, DJs, and everyone else: you’ll sound great, regardless of if you’re tracking a record or performing live online.

FEATURES

• Ultra-compact, mobile bus-powered USB-C® compatible audio interface for recording, streaming, podcasting and more
• Stand-alone functionality lets you take your sound with you
• Integrated mixer lets you blend audio from up to three applications at once
• Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX — all without taxing your CPU
• Connect nearly anything: mics, guitars, headsets, and stereo sources like DJ mixers
• Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
• Studio One Artist recording software and Studio Magic software bundle included
• 96 kHz / 24-bit operation for pristine audio recording
• Inputs and Outputs
• 1 digitally controlled, high-headroom, low noise XMAX-L mic preamp for professional results
• 1 Instrument input (via combo) for guitars and basses
• 1 TRS ⅛” Stereo Line input for DJ mixers and more
• Built-in Fat Channel with EQ, Compression, Gate, and Limiter plus Voice Effects and Reverb with 8 easy-to-use factory presets and 6 user presets
• Access up to 2 presets from Revelator io44 for each input via the top-panel button, additional presets are available in Universal Control
• Custom presets for vocals, broadcast, guitar, and more
• ​​Share presets with your team
• ​Balanced Main Left / Right with independent level control and mute
• 1 TRRS 1/4" stereo Headset connection (mic in, stereo out)
• Digital
• Integrated software mixer for low-latency montioring, streaming and more
• 4 dedicated input streams for the Revelator™ io44 hardware inputs
• 2 dedicated stereo output streams for monitoring. One dedicated mix for your main outputs and a separate headphone mix sourceable from all available mixes.
• Two stereo I/O virtual streams for application-to-application recording and playback with loopback options for macOS and Windows
• macOS, Windows, iOS, and Android compatible

SPECIFICATIONS

• Microphone Preamp
• Type
• XLR female, balanced
• Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
• 20 Hz - 20 kHz
• Input Impedance (Balanced)
• 1.4kΩ
• THD+N (1 kHz, -1 dBFS, min gain)
• 0.005% (1 kHz, -1 dBFS, min gain)
• EIN (A-wtd, 150Ω, max gain)
• -128 dBu
• Gain Control Range (± 1 dB)
• 60 dB
• Max Input Level (±0.5 dBu, min gain)
• +10 dBu
• Phantom Power (10 mA total)
• +48 VDC
• Instrument Input
• Type
• ¼" TS female, unbalanced
• Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
• 20 Hz - 20 kHz
• Input Impedance
• 750kΩ
• Gain Range
• 50 dB
• Maximum Level
• +10 dBu (min. gain)
• Line Input (Stereo
• Type
• 1/8" TRS female
• Maximum Level (1 kHz, unity gain, z-balanced)
• +10 dBu
• Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
• 20 Hz - 20kHz
• Gain Range
• 40 dB
• Main Outputs
• Type
• 1/4" TRS, Female
• Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd)
• 20 Hz - 20 kHz
• THD+N (1 kHz, 0 dBFS, loaded)
• 0.003%
• Maximum Level
• +10 dBu
• Headphone Output
• Type
• 1/8" TRRS female
• Maximum Power
• 30mW/Channel @56Ω
• Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd)
• 20 Hz - 20kHz
• Impedance Working Range
• 32 Ω to 300 Ω
• Audio Interface
• Type
• USB-C® Compatible USB 2.0
• Sample Rates
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Bit Depth
• 24 bit
• ADC Converter Range
• 96 dB
• DAC Converter Range
• 96 dB
• Controls
• Hardware
• Direct Monitor, Mic Gain, Line Input Trim, Headphone Level, Mute, Preset Select, HPF
• Software
• Mic Gain, Monitor Mix, Preset Management, Loopback Mixes,
• Onboard DSP Options
• PreSonus StudioLive Fat Channel Processing High Pass Filter, Noise Gate / Expander, 3 Compressor models, 3 EQ models, and Limiter, Reverb
• Loopback Mixer
• 7 input digital mixer, 3 stereo loopback mixes, stereo monitor mix
• Voice Effects
• Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay
• Physical
• Height
• 2.3” (58.4 mm)
• Depth
• 3" (77 mm)
• Width
• 5.35” (135.9 mm)
• Weight
• 0.78 lbs (0.35 kg)
