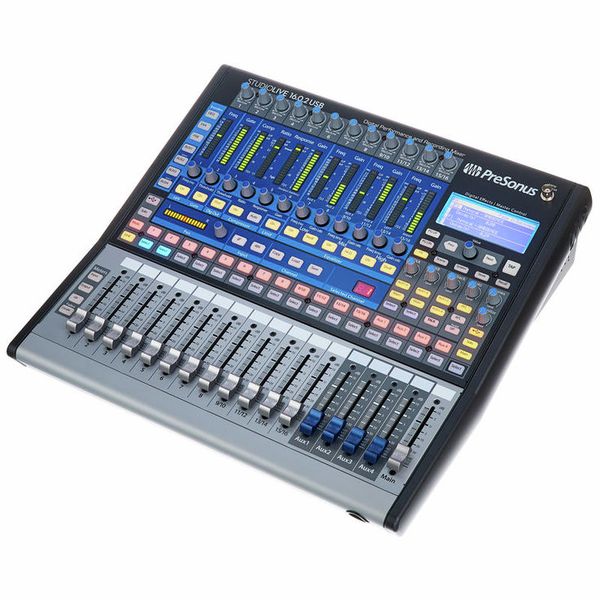

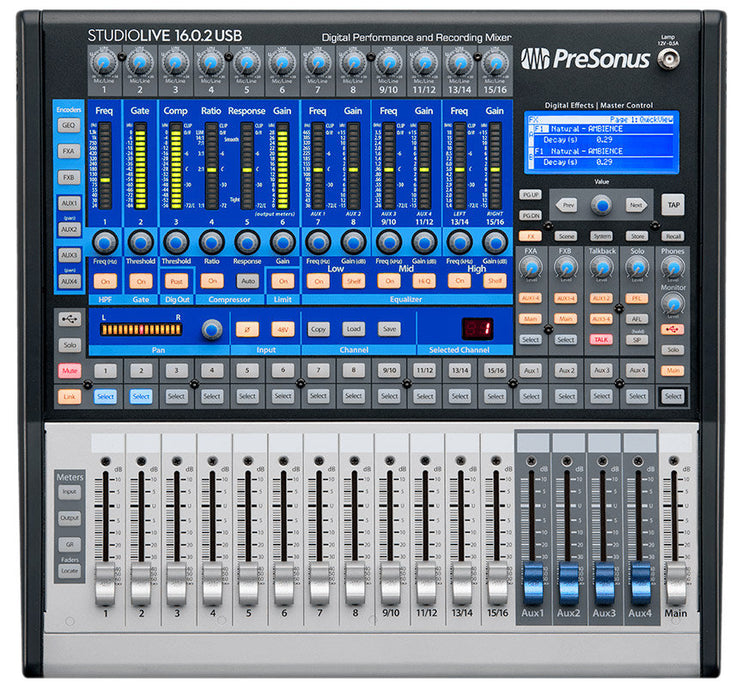

PreSonus StudioLive 16.0.2 USB Digital Mixer

The PreSonus StudioLive 16.0.2 USB is an excellent-sounding compact digital mixer with a flair for connectivity and extensibility. You'll have unprecedented freedom to work the way that works best for you. StudioLive technology certainly lives up to its name: a powerhouse in the studio — with stunning live capabilities that give us more than a glimpse into the future of live mixing. The PreSonus StudioLive 16.0.2 USB even offers QMix wireless aux mix control software for your iPhone, iPod Touch, and Android for onstage convenience.

VIDEO

FEATURES

• 16 channel inputs (8 mono input channels and 4 stereo channels) with 60mm faders
• 13 Class A XMAX solid-state mic preamplifiers (12 channels + talkback)
• 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
• 2 stereo 32-bit digital effects processors
• QMix wireless aux mix control software for your iPhone and iPod Touch
• Fat Channel signal processing on all channels and buses
• 3-band semi-parametric EQ for each channel
• Dynamics: gating, compressor, downward expander, and limiter for each channel
• Stereo, 31-band graphic EQ on the main bus
• 16-in/16-out USB 2.0 recording interface (24-bit/44.1kHz and 48kHz)
• Scene and individual settings store and recall
• Includes Studio One Artist DAW software

SPECIFICATIONS

• Type:Digital Mixer
• Channels:16 x 16
• Inputs - Mic Preamps:12 x XLR
• Phantom Power:12 channels
• Inputs - Line:8 x 1/4", 8 x 1/4" (4 x stereo channels), 2 x Stereo RCA pair
• Outputs - Main:2 x XLR (L/R), 1 x XLR (Mono), 2 x 1/4" TRS (L/R), 2 x 1/4" TRS (monitor)
• Aux Sends:4 x 1/4" TRS
• Busses/Groups:4 x Aux, 2 x FX buses
• Talkback:1 x XLR
• USB:1 x Type B
• Computer Connectivity:USB (16 x 16)
• Headphones:1 x 1/4" (TRS)
• Faders:12 x 60mm
• EQ Bands:3-band semi-parametric EQ, 31-band Graphic
• Effects:2 x stereo 32-bit digital effects processors
• Signal Processing:Fat Channel processing
• Software:Studio One Artist, Capture, UC Surface control, QMix-UC
• Rackmountable:Yes
• Height:5.15"
• Depth:15.75"
• Width:16"
• Weight:20 lbs.
