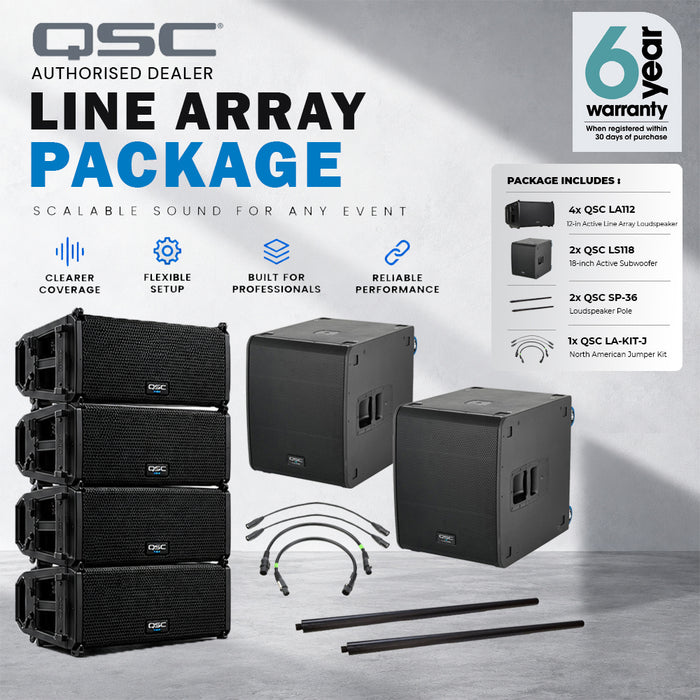

QSC Dual LA112 2400W 12" Active Line Array Speakers and LS118 4000W 18" Powered Subwoofer Pole Mount System

FEATURES

• 4x QSC LA112 2400W 12-inch Active Line Array Speaker
• 2x QSC LS118 4,000-watt 18-inch Active Subwoofer
• 2x QSC SP-36 Threaded loudspeaker Pole
• 1x QSC LA-KIT-J International Jumper Kit

QSC LA112 2400W 12-inch Active Line Array Speaker

• Premium Audio Performance:
  Lightweight neodymium 12-inch woofer and dual 1.75-inch HF drivers deliver up to 136 dB peak SPL with exceptional clarity and minimal distortion across a 58 Hz – 20 kHz range.


• Innovative System Intelligence:
  QSC LEAF waveguide ensures uniform 90° x 15° coverage, while AWARE system intelligence and SysNav App simplify setup, control, and array optimisation.


• Versatile Deployment Options:
  Flown (up to 6 units), ground-stacked, or pole-mounted with RapidDeploy rigging for tool-free adjustment and seamless integration into networked audio systems with Dante compatibility.


QSC LS118 4,000-watt 18-inch Active Subwoofer

• Driven by an efficient, 4,000W Class D amplifier with Power Factor Correction and low AC consumption

• 18-inch long-excursion, direct-radiating LF driver yields impressive low-frequency performance down to 41Hz

• Delivers a high, undistorted 138dB maximum peak SPL

• Selectable omnidirectional and cardioid radiation modes supply precise control over the sub's projection

• Deep mode gives you an extra low-frequency extension for bass-heavy applications

• ALP (Acoustic Linear Phase) design delivers outstanding coherence between QSC speakers deployed in the same audio system

• Dante networking supplies lock-tight interoperability with Dante-compatible equipment, including integration into the Q-Sys ecosystem

• Rugged wooden enclosure with a polyurea coating for long-lasting durability

• 4 low-noise, heavy-duty castors for easy transport

• Works in vertical or horizontal deployments

• M20 threaded pole receivers can be used alongside array frame and ground-stack adapters or loudspeaker poles for flexible installation

SPECIFICATIONS

QSC LA112 2400W 12-inch Active Line Array Speaker

• Configuration: Two-way active line array loudspeaker

• LF Transducer: 12-inch (305 mm) woofer

• HF Transducers: 2x 1.75-inch (44 mm) compression drivers

• Frequency Response (-6 dB): 58 Hz – 20 kHz

• Frequency Range (-10 dB): 53 Hz – 20 kHz

• Coverage: 90° horizontal x 15° vertical

• Maximum SPL: 136 dB peak @ 1m

• Amplifier Power: 2400 W peak (1600 W LF / 800 W HF)

• Controls: Rotary encoder, Menu/ID buttons, full-colour display

• Connectors: XLR (In/Thru), 2x RJ45 EtherCON (Dante), PowerCON TRUE1 (AC In/Out)

• Power Input: 100–240 VAC, 50–60 Hz

• Enclosure: Impact-resistant ABS with powder-coated steel grille

• Dimensions (H × W × D): 392 x 630 x 417 mm

• Weight: 21.4 kg (47.2 lb)

• Supplied Accessories: PowerCON TRUE1 power cable

QSC LS118 4,000-watt 18-inch Active Subwoofer

• Powered : Yes

• LF Driver Size : 18" subwoofer

• Total Power : 4000W Peak

• Inputs : 1 x XLR

• Outputs : 1 x XLR (thru)

• Data I/O : 2 x EtherCON (Dante, QSC SysNavTM In/Thru))

• Frequency Range : 35Hz-111hz (-10dB)

• Frequency Response : 41Hz-98Hz (-6dB)

• Maximum Peak SPL : 138dB SPL @ 1m

• Signal Processing : DEEP Mode, QSC SysNav App

• Features : Dante Network, Q-SYS Ecosystem

• Mounting Options : Floor, Fly: 8 x M10, 2 x M20

• Power Source : PowerCON TRUE1 In/Out

• Enclosure Material : 15mm plywood with Polyurea coating

• Height : 25.2"

• Width : 20.5"

• Depth : 31.1"

• Weight : 110 lbs.
