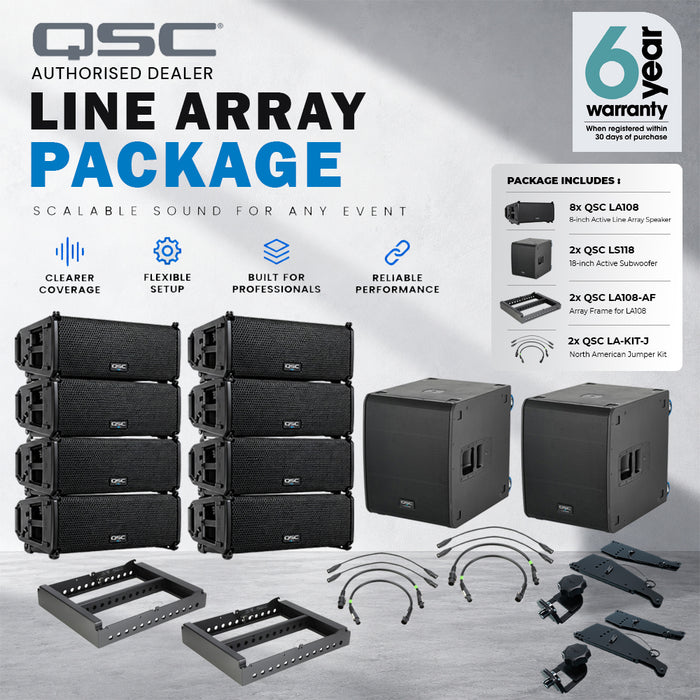

QSC LA108 1300W 8" Active Line Array Speaker and LS118 4000W 18" Subwoofer Pole Mount System

FEATURES

• 8x QSC LA108 1300W 8-inch Active Line Array Speaker
• 2x QSC LS118 4,000-watt 18-inch Active Subwoofer
• 2x Array Frame for LA108 Loudspeaker
• 2x Stack Adapter Kit to combine with LA108-AF
• 2x QSC LA-KIT-J International Jumper Kit

LA108 1300W 8-inch Active Line Array Speaker

• Driven by an efficient, 1,300W Class D amplifier with Power Factor Correction and low AC consumption
• 8-inch neodymium LF driver and 1.75-inch HF compression driver yield an impressive 62Hz–20kHz frequency response
• Delivers a high, undistorted 134dB maximum peak SPL
• LEAF (Length Equalized Acoustic Flare) waveguide ensures uniform 100° x 15° coverage with exceptional throw
• ALP (Acoustic Linear Phase) design delivers outstanding coherence between QSC speakers deployed in the same audio system
• Dante networking supplies lock-tight interoperability with compatible equipment, including integration into the Q-Sys ecosystem
• RapidDeploy rigging technology guarantees fast, easy deployment — no additional tools or hardware required
• Conforms to OSHA guidelines for single-operator installation
• AWARE (Automatic Wireless Array Recognition) system negates the need for complicated line-array tuning and adjustments
• Fly up to 6 LA108s with an array frame, ground stack up to 4 LA108s over an LS118 sub, or mount up to 3 LA108s on a stand or pole
• SysNav app enables you to design, configure, control, and monitor your entire array
• Universal power supply, 100–240 VAC, 50–60Hz
• Ideal for portable applications, rental companies, and small- to medium-sized installations

LS118 4,000-watt 18-inch Active Subwoofer

• Driven by an efficient, 4,000W Class D amplifier with Power Factor Correction and low AC consumption

• 18-inch long-excursion, direct-radiating LF driver yields impressive low-frequency performance down to 41Hz

• Delivers a high, undistorted 138dB maximum peak SPL

• Selectable omnidirectional and cardioid radiation modes supply precise control over the sub's projection

• Deep mode gives you an extra low-frequency extension for bass-heavy applications

• ALP (Acoustic Linear Phase) design delivers outstanding coherence between QSC speakers deployed in the same audio system

• Dante networking supplies lock-tight interoperability with Dante-compatible equipment, including integration into the Q-Sys ecosystem

• Rugged wooden enclosure with a polyurea coating for long-lasting durability

• 4 low-noise, heavy-duty castors for easy transport

• Works in vertical or horizontal deployments

• M20 threaded pole receivers can be used alongside array frame and ground-stack adapters or loudspeaker poles for flexible installation

SPECIFICATIONS

LA108 1300W 8-inch Active Line Array Speaker

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:8" woofer
• HF Driver Size:1.75" compression driver
• LF Driver Power Amp:1000W Class D
• HF Driver Power Amp:300W Class D
• Total Power:1300W Peak
• Inputs:1 x XLR"
• Outputs:1 x XLR" (thru)
• Data I/O:2 x EtherCON (Dante, QSC SysNavTM In/Thru))
• Frequency Range:57Hz-20khz (-10 dB)
• Frequency Response:62Hz-20kHz (-6dB)
• Maximum Peak SPL:134 dB SPL @ 1m
• Horizontal Coverage Angle:100 Degrees
• Vertical Coverage Angle:15 Degrees
• Enclosure Material:Impact resistant ABS
• Mounting Options:Pole, Floor, Fly
• Power Source:PowerCON TRUE1 In/Out
• Height:10.7"
• Width:20.4"
• Depth:14.7"
• Weight:30.1 lbs.

LS118 4,000-watt 18-inch Active Subwoofer

• Powered : Yes

• LF Driver Size : 18" subwoofer

• Total Power : 4000W Peak

• Inputs : 1 x XLR

• Outputs : 1 x XLR (thru)

• Data I/O : 2 x EtherCON (Dante, QSC SysNavTM In/Thru))

• Frequency Range : 35Hz-111hz (-10dB)

• Frequency Response : 41Hz-98Hz (-6dB)

• Maximum Peak SPL : 138dB SPL @ 1m

• Signal Processing : DEEP Mode, QSC SysNav App

• Features : Dante Network, Q-SYS Ecosystem

• Mounting Options : Floor, Fly: 8 x M10, 2 x M20

• Power Source : PowerCON TRUE1 In/Out

• Enclosure Material : 15mm plywood with Polyurea coating

• Height : 25.2"

• Width : 20.5"

• Depth : 31.1"

• Weight : 110 lbs.
