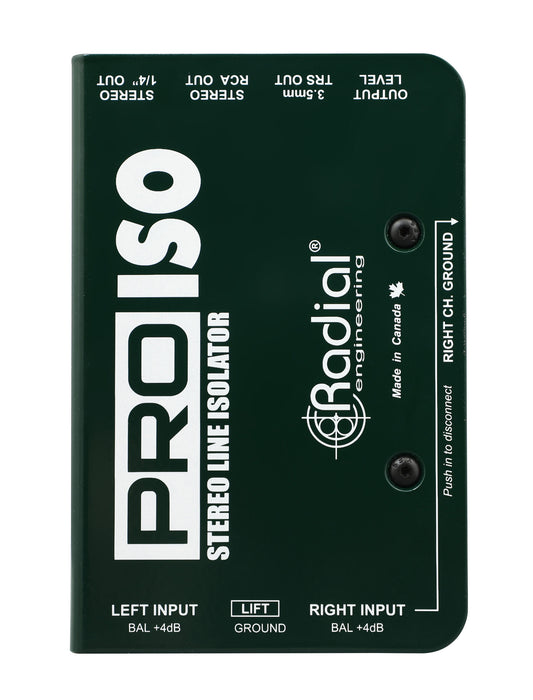

Radial Engineering Pro-Iso +4dB To -10dB Converter

The Radial Pro-Iso is one of those “problem-solving” items that Music Bliss sound engineers suggest always having on hand. It converts pro level +4dB balanced signals via XLR inputs into consumer level -10dB unbalanced signals via RCA, 1/8-inch, or 1/4-inch outputs. This functionality gives the Pro-Iso some beneficial applications. It can act as a recording interface for laptops and MP3 players, record direct from mixers and preamps, and more. Its variable output level control makes it easy to set and forget perfect levels, and its completely isolated high-performance transformer plus full bottom pad won’t allow any distortion or ground loop hum into your signals. Of course, being made by Radial, the Pro-Iso is akin to a tank. Its 100% electrically isolated XLR connectors are glass-filled nylon, plus it features a heavy-duty 14 gauge steel welded I-beam enclosure and a military-grade PC board. Finally, the Pro-Iso’s passive design doesn’t require an external power source, and it’s even rackmountable via the optional Radial J-Rak or J-Clamp

FEATURES

• Converts pro level +4dB balanced line level signals to consumer level -10dB unbalanced line level signals

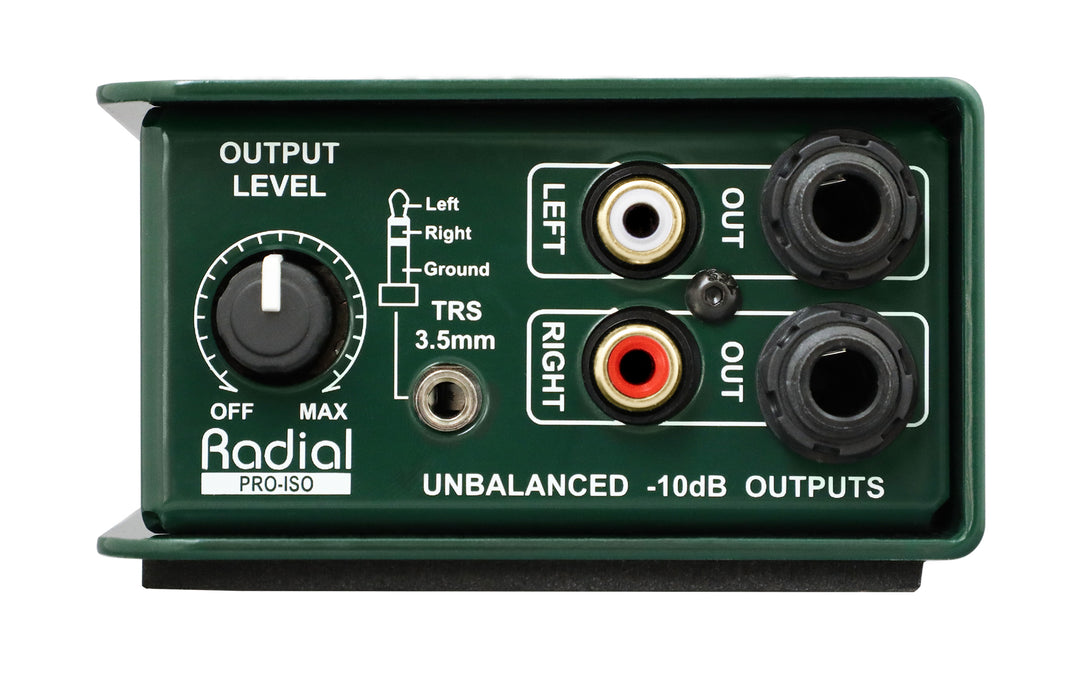

• XLR inputs to 1/4-inch, 1/8-inch, and RCA outputs
• Isolated transformer gets rid of buzz and hum
• Variable output level control for setting and forgetting ideal output levels
• Passive: doesn’t need an external power supply
• Radial’s legendary solid and rugged construction
• Rackmountable via optional J-Rak or J-Clamp (sold separately)

SPECIFICATIONS

• Type: Passive Direct Box
• Channels: 2
• Ground Lift: Yes
• Inputs: 2 x XLR
• Outputs: 2 x 1/4" (headphones), 2 x RCA
• Height: 2"
• Width: 3.3"
• Depth: 5"
• Weight: 1.92 lbs.
