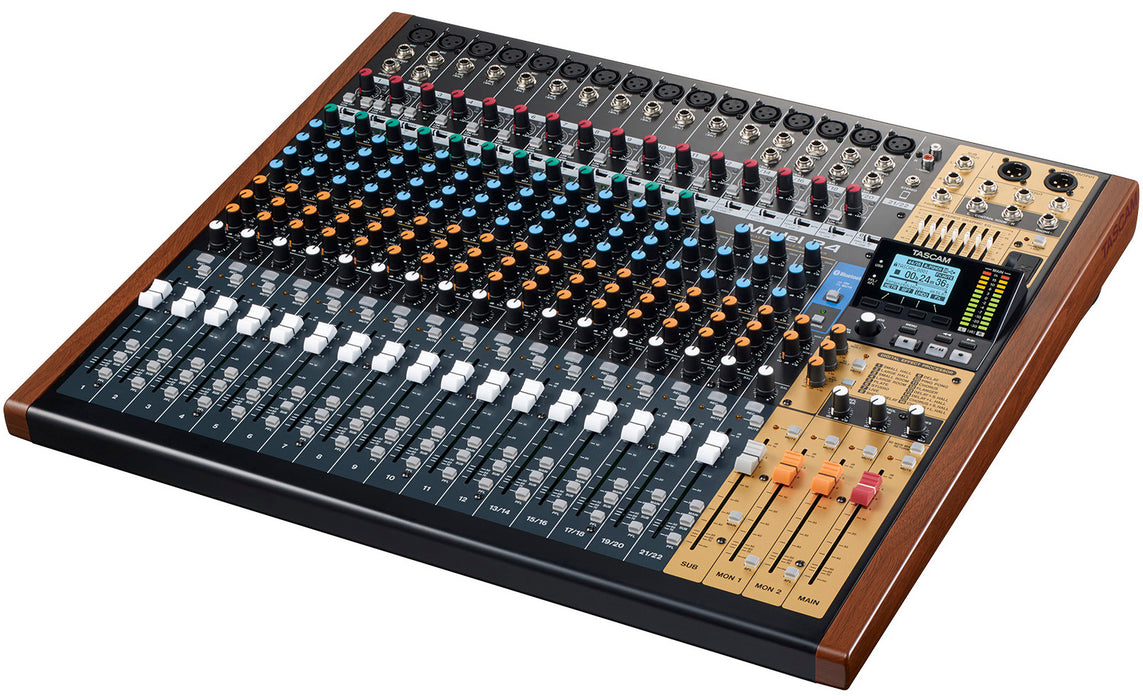

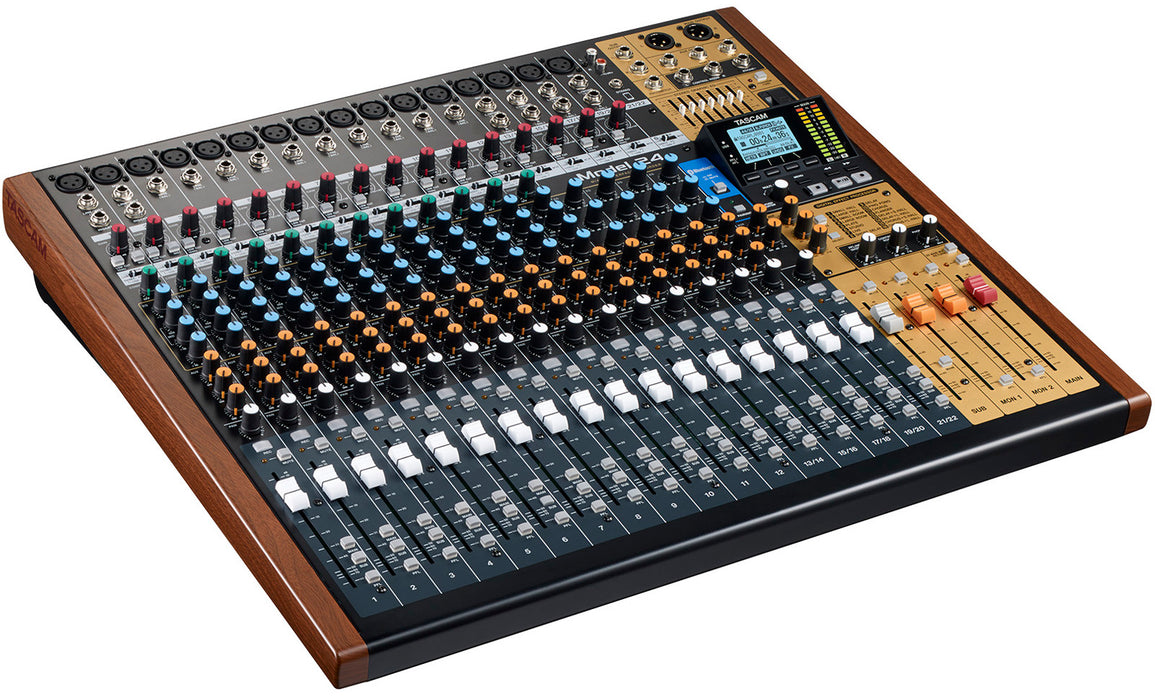

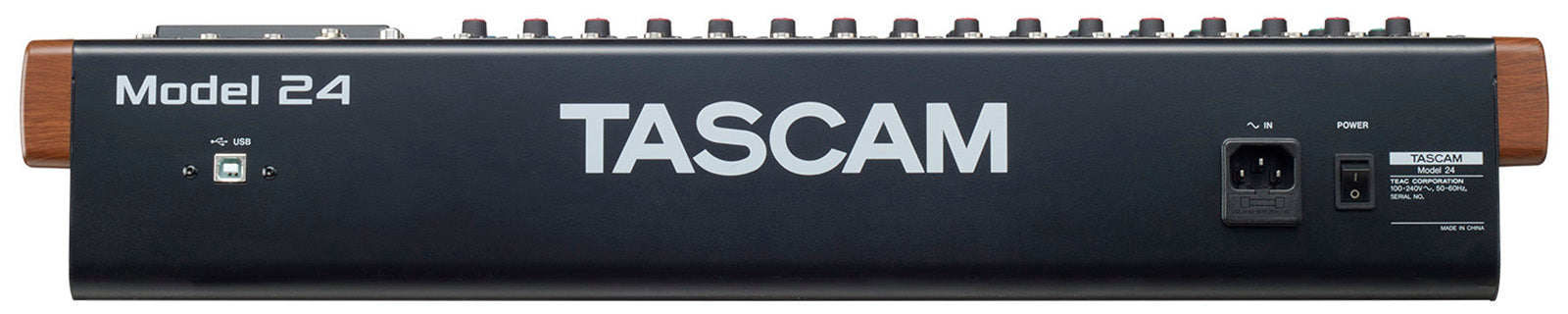

TASCAM Model 24 24-Track Live Recorder & Mixing Console With Audio Interface

Whether you use it for rehearsal, live shows, or studio production, the TASCAM Model 24 is a great-sounding, easy-to-use multitrack recording solution. The Model 24 boasts a classic analog mixer-style design that's both intuitive and immediate. Achieve precise control with 100mm faders, while tweaking your tracks with familiar EQ and Aux controls. High-grade preamps ensure top-notch sound that's easily captured on an internal SD card at 24-bit/48kHz resolution. You also get a generous complement of I/O. Beyond that, DAW integration is a piece of cake, thanks to the Model 24's built-in 24-in/22-out audio interface. The Model 24 is lightweight yet rugged, and can be transported from studio to stage with confidence, thanks to TASCAM's legendary reliability.

FEATURES

• Great-sounding, easy-to-use 24-track multitrack recording solution
• Boasts a classic analog mixer-style design that's both intuitive and immediate
• 100mm faders provide precise control
• Familiar EQ and Aux controls for tweaking your tracks
• Generous complement of I/O including 16 high-grade mic preamps
• Internal recording to SD card at 24-bit/48kHz resolution
• Flexible routing and onboard effects
• Built-in 24-in/22-out audio interface for easy DAW integration
• Lightweight yet rugged design

SPECIFICATIONS

• Type : Analog Mixer with USB Interface/Recorder

• Channels :  22 input channels, 24-track

• Computer Connectivity :  USB (24 x 22)

• A/D Resolution : 24-bit/48kHz

• Faders :  21 x 100mm Long Throw

• Inputs - Mic Preamps : 16 x XLR

• Phantom Power:   16 channels

• Inputs - Line :   12 x 1/4" (mono), 8 x 1/4" (4 stereo), 2 x 1/4" (line/Hi-Z), 1 x 1/8" (stereo), 1 x Dual RCA Stereo

• Outputs - Main : 2 x XLR (main), 2 x 1/4"

• Outputs - Other : 2 x 1/4" (L/R subgroup)

• Aux Sends : 2 x Monitor, 1 x FX

• Send/Return I/O : 2 x 1/4" (monitor send), 1 x 1/4" (FX send)

• Busses/Groups : 1 x Subgroup

• Inserts :    2 x 1/4" (channel)

• Headphones:    1 x 1/4"

• USB:    1 x Type B

• Bluetooth:    v4.0

• Other I/O:    1 x 1/4" (footswitch)

• EQ Bands:    3-band EQ with Sweepable Mid Frequency, 100Hz Low-cut, 7-band Graphic EQ

• Signal Processing:    12 x Channel Compressor

• Effects:    Reverbs, Delays, Chorus, Flanger

• Storage:    SD Card Slot, SDHC (4GB-32GB), SDXC (64GB-512GB)

• OS Requirements - Mac:    Dual Core 2GHz Processor or higher, OS X 10.11 or later

• OS Requirements - PC:    Dual Core 2GHz Processor or higher, Windows 7 SP1, 8.1,
• 10 1803 update or later

• Power Source:    Standard IEC AC cable

• Height:    4.43"

• Width:    22.67" (with panels), 20.26" (without)

• Depth:    20.20"

• Weight:    22 lbs.
