TC Electronic Monitor Pilot Multi-Monitor Switching Control Station with Elegant Desktop Controller and Calibrated Listening

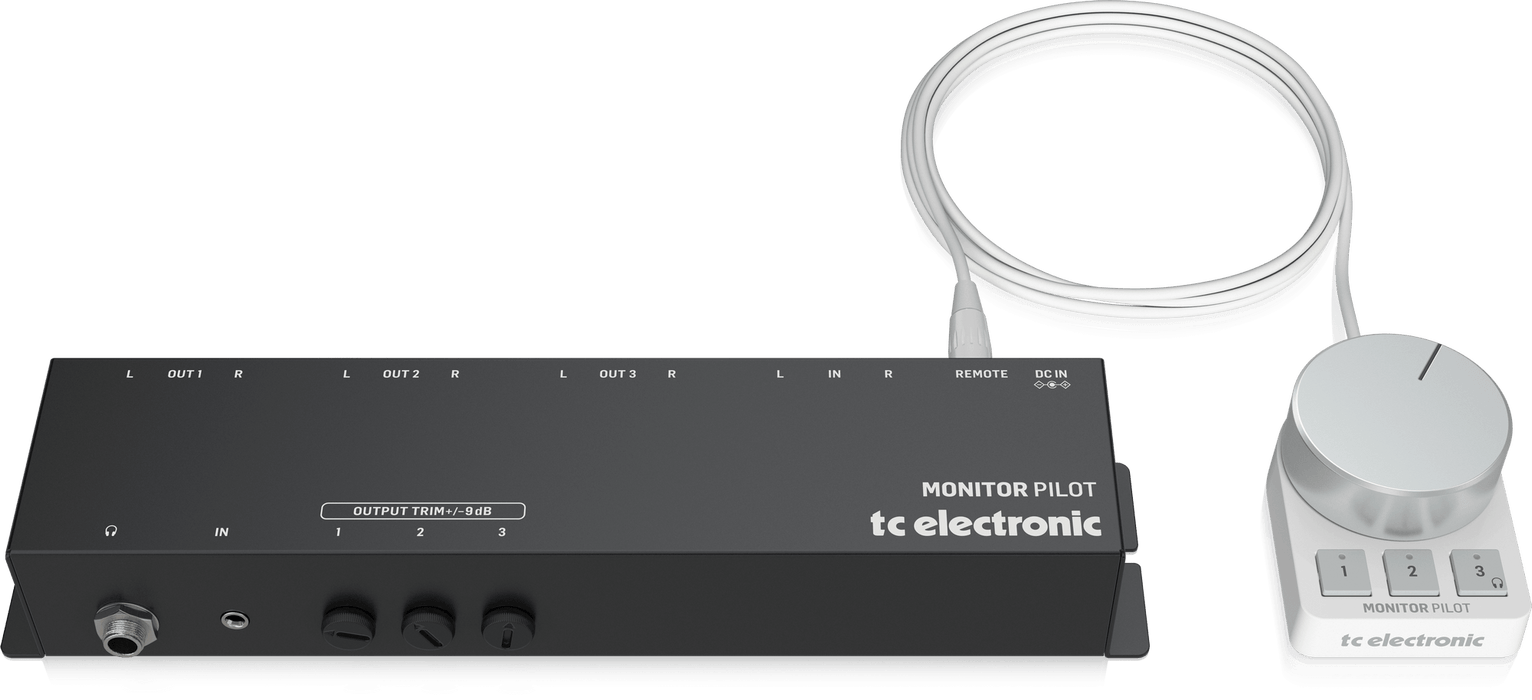

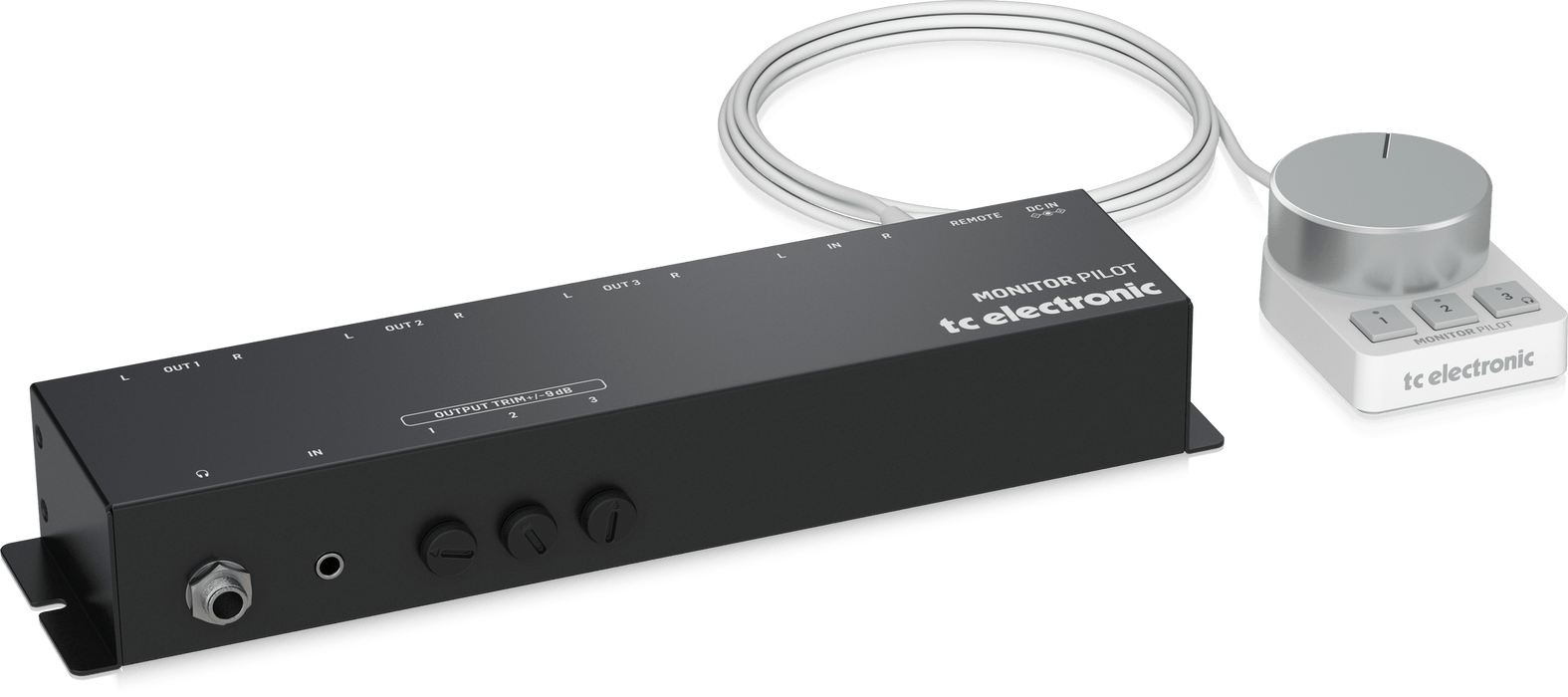

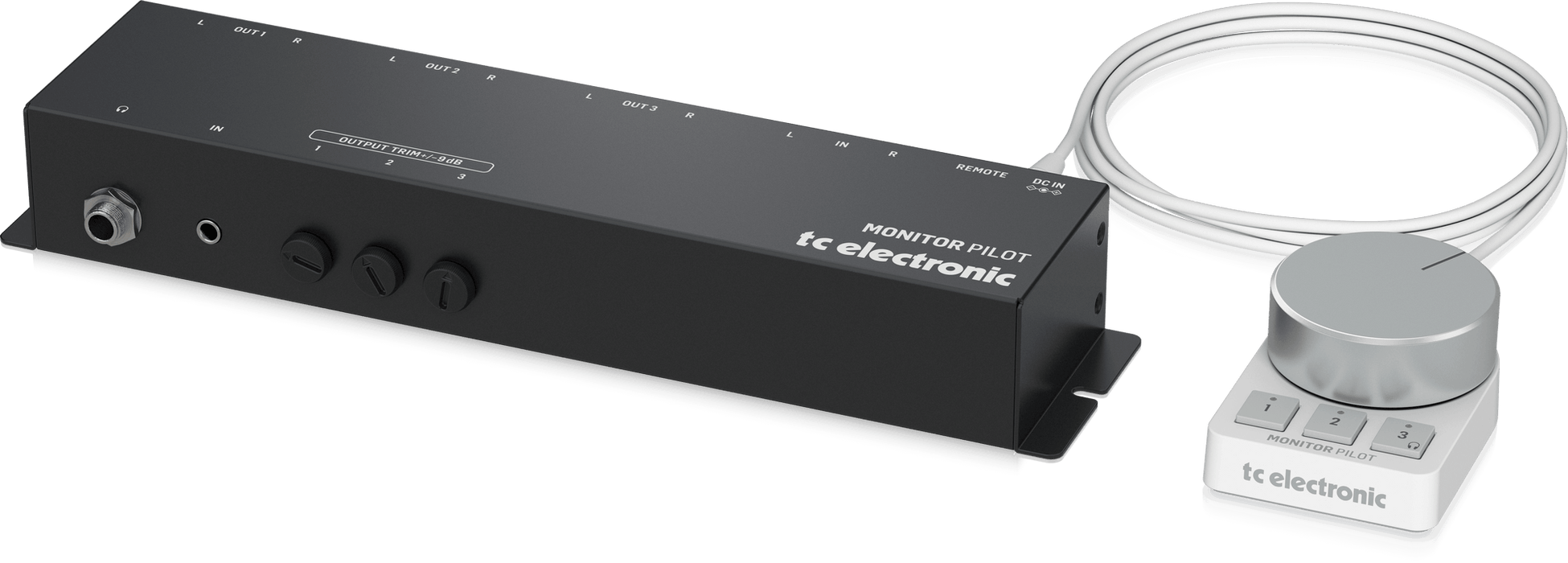

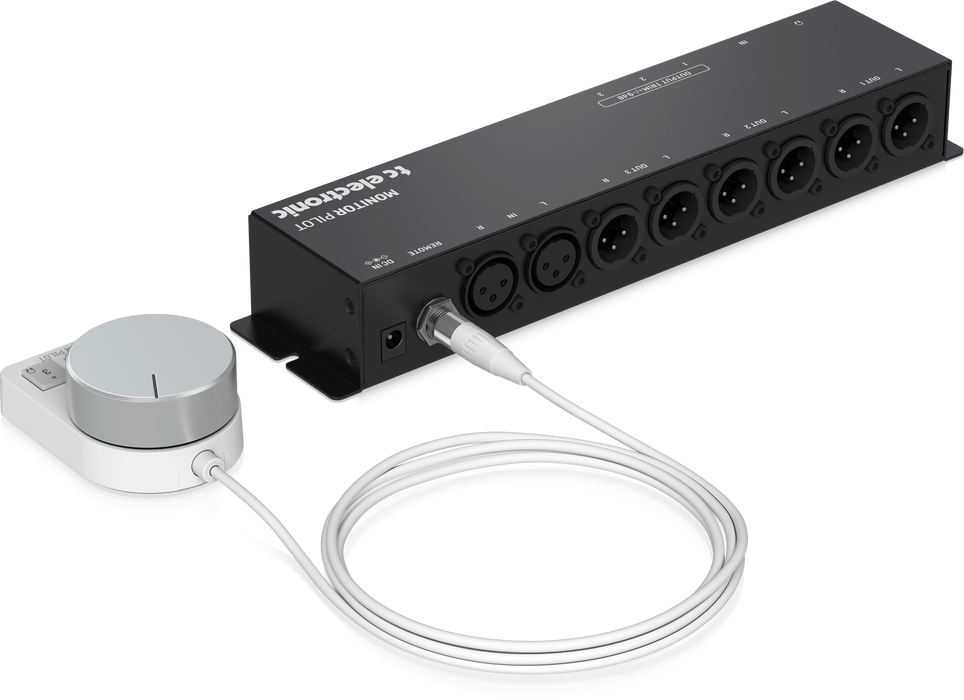

Designed for seamless monitor switching with the utmost sound quality, the TC Electronic Monitor Pilot monitor control station is sure to elevate the sound in your studio. On the input side, you have fully balanced stereo inputs for your main mix, plus an 1/8-inch aux input for easy monitoring from portable devices. On the output side, you have three fully balanced stereo outputs for three sets of monitors, plus a high-quality 1/4-inch headphone output for premium headphone monitoring. Complete with a remote control for your desktop, true analog volume control, and the ability to mount directly underneath your mixing desk for easy access, the TC Electronic Monitor Pilot delivers a superior monitoring experience for music and broadcast studios.

FEATURES

• Studio monitor speaker controller with desktop remote control
• Analog volume control ensures you're hearing your mix's full dynamic range at any volume level

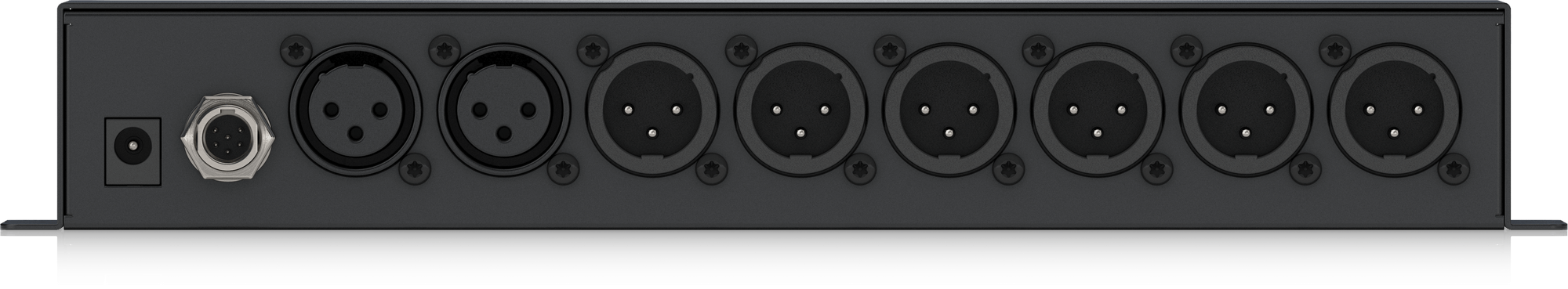

• 3 balanced monitor speaker outputs on XLR connectors, 1 balanced stereo input for your mix
• 1/8-inch stereo aux input and 1/4-inch headphone output for convenience
• Trim pots allow you to calibrate each set of monitors for equal volume output
• Can be installed on your desktop or beneath your studio desk for convenience

SPECIFICATIONS

• Type:Monitor Controller
• Input Channels:1 x stereo source
• Output Channels:3 x stereo monitors
• Analog Inputs:2 x XLR, 1 x 1/8" (stereo aux)
• Analog Outputs:6 x XLR
• Headphones:1 x 1/4"
• Data I/O:1 x 6-pin (remote)
• Form Factor:Desktop
• Power Supply:12V DC 1000mA power supply (included)
• Height:1.5" (main unit), 1.5" (remote)
• Width:10.3" (main unit), 2.1" (remote)
• Depth:2.8" (main unit), 3.1" (remote)
• Weight:1.2 lbs. (main unit), 0.4 lbs. (remote)
