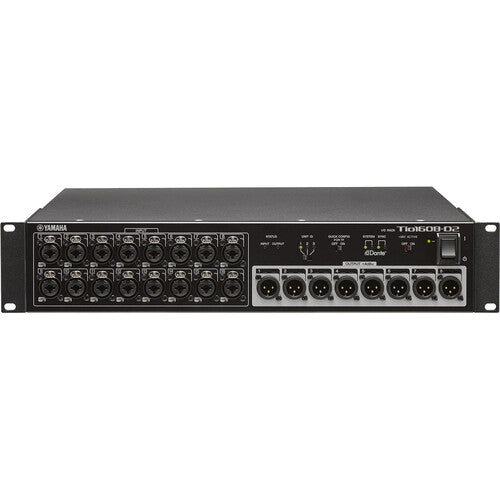

Yamaha Tio1608-D2 Digital Stage Box with Dante

The Yamaha Tio1608-D2 is a top-quality I/O rack for the company's digital consoles. This digital stage box boasts 16 analog inputs with Yamaha's outstanding D-Pre microphone preamps, plus eight analog outputs. The Dante network protocol equips the Tio1608-D2 with incredible scalability and flexibility. This I/O box supports Quick Config Mode with DM3- and TF-series mixers, along with automatic digital-stage compensation for analog gain changes on CL- and QL-series units. Here at Music Bliss, we're also impressed with the Tio1608-D2's convenient recallable preamps. Outstanding 96kHz converters, low-latency operation, and a time-saving Auto Setup feature round out the Tio1608-D2. Want a streamlined digital I/O rack with zero sacrifices or compromises? If so, the solution is a no-brainer: the Yamaha Tio1608-D2.

FEATURES

• A top-quality I/O rack for Yamaha digital consoles

• 16 analog inputs with Yamaha's outstanding D-Pre preamps; 8 analog outputs

• Dante network protocol supplies incredible scalability and flexibility

• Supports Quick Config Mode with DM3- and TF-series mixers

• Automatic digital-stage compensation for analog gain changes on CL- and QL-series units

• Convenient recallable microphone preamps

• Outstanding 96kHz converters with low-latency operation

• Time-saving Auto Setup feature

SPECIFICATIONS

• Type:    Digital Stage Box

• Compatibility:    Yamaha TF Mixers with Dante Cards

• Channels:    16 x 8

• Inputs - Mic Preamps:    16 x XLR-1/4" combo (mic/line)

• Outputs - Main:    8 x XLR

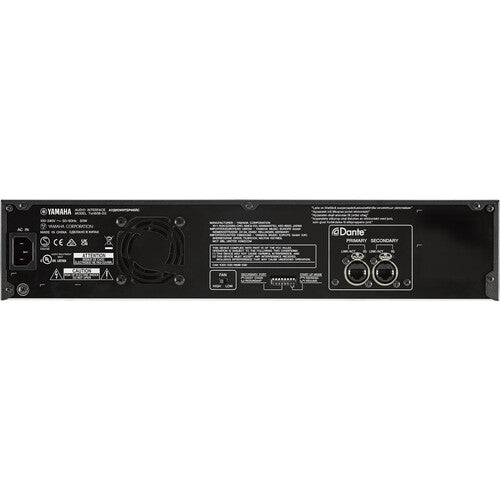

• Data I/O:    2 x EtherCon (primary, secondary)

• Computer Connectivity:    Ethernet (Dante)

• Rackmountable:    Yes

• Power Source:    Standard IEC AC cable

• Height:    3.5"

• Depth:    14.37"

• Width:    18.87"

• Weight:    12.6 lbs.
