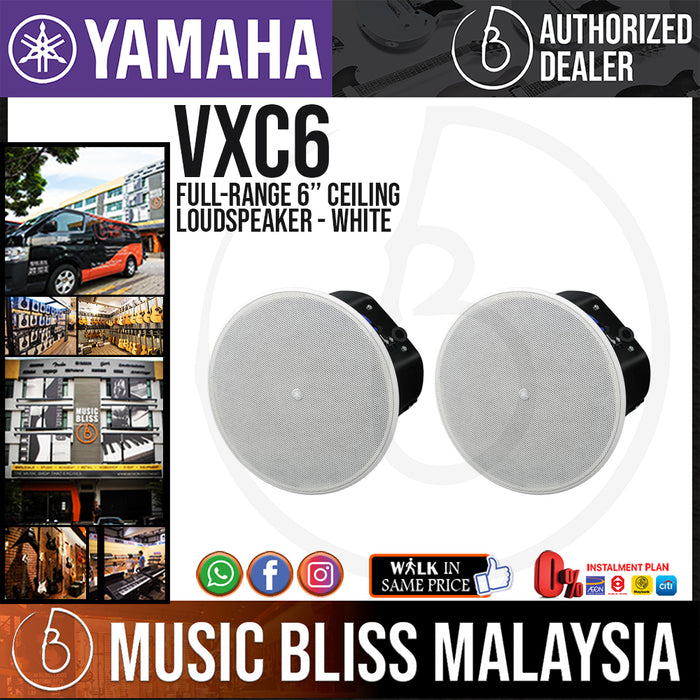

Yamaha VXC6 VXC Series Full Range 6 Inch Ceiling Loudspeaker - White (Pair)
A versatile lineup for clear consistent sound
Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.
FEATURES
- Internal Transformer that allows both High and Low-Impedance Drive with a single speaker.
- Easily Adapts to any changes with Tap Switch on Baffle.
- Anti-Drop tab allows for SafeSeamless Installation by Freeing your hands. O-Rings and Tile Rails included.
- Speaker Design built for a strong emphasis on functionality while also being aesthetic. Hexagonal Design featured on the grille improves sound clarity by raising the aperture ratio. The Innovative Design of the VXC Tweeter improves Sound Clarity by providing unrestricted woofer movement.
- VXC Series comes with paintable speaker grilles to allow for the best matching color to your decor.
SPECIFICATIONS
Speaker type | 2-wayAcoustic suspension | |
---|---|---|
Frequency range (-10dB) | 56Hz - 20kHz (Half-space:2) | |
Nominal coverage | 110° conical (Half-space:2) | |
Components | LF | 6.5" Cone |
HF | 0.75" Soft dome | |
Power rating | NOISE | 75W |
PGM | 150W | |
PEAK | 300W | |
Nominal impedance | 8 | |
Transformer taps | 100V | 60W (170)30W (330)15W (670) |
70V | 60W (83)30W (170)15W (330)7.5W (670) | |
SPL | Sensitivity (1W; 1m on axis) | 86dB SPL (Half-space:2) |
Peak (Calculated) | 111dB SPL (1mCalculated based on power rating and sensitivityexclusive of power compression) | |
I/O connectors | 1 x Euroblock (4P) : (Input: + / -Loop Thru: + / -) | |
Finish | VXC6: Black / VXC6W: White | |
Dimensions | Diameter | 286mm (11.3") |
D | 205mm (8.1") | |
Net weight | 4.4kg (9.7lbs) | |
Cutout size | 247 mm (9-3/4") | |
Required ceiling board thickness | 5 mm - 35 mm | |
Accessories | O-ringTile RailCutout Template | |
Packaging | Packaged in pairs | |
Certificate | UL1480UL2043NFPA70CEEACRoHS | |
EN54-24 compliance | - |
