Zoom MS-90LP+ MultiStomp Looper Pedal (MS90LP+)

VIDEO

FEATURES

• Five Dedicated Footswitches
  - Simplify your looping with UNDO and STOP buttons—no double taps or holds needed. Access essential controls with the LOOP FX and RHYTHM switches.


• Technology You Can Hear
  - Loop with clear, high quality sound thanks to the flat phase response of the advanced analog circuitry. With dual AD converters and 32-bit float technology, you can add endless layers without losing sound quality.


• Long Loops For Endless Ideas
  - The MS-90LP+ provides 90 minutes of recording per loop, 13 hours total capacity, and storage for up to 100 loops.


• Add Depth and Drama with Effects
  - Add some flavor to your loops with eight LOOP FX, including REVERSE, HALF SPEED, HOLD, and TAPE STOP.


• Stay in the Loop
  - The LCD display’s real-time waveform lets you know where you are in your loop. Screen colors indicate recording, playback, or using Loop FX.


• Good Timing
  - The quantize feature keeps loops and rhythm patterns perfectly in time by automatically aligning their start and end points, ensuring everything is in sync.


• All Together Now
  - The MS-90LP+ offers 68 rhythm patterns in a variety of styles. Use the RHYTHM SYNC function to start and stop your rhythm and loops all at the same time.

SPECIFICATIONS

• Number of memories : 100

• Sampling frequency : 44.1 kHz

• Signal processing : 32-bit float

• Number of recording and playback tracks : 1

• Data format : WAV (44.1 kHz, stereo, 32-bit floating point)

• Maximum recording times : 90 minutes (1 loop) / 13 hours or more (total for all memories)

• Frequency response : 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)

• Display : 160x128 dot-matrix LCD with color backlight

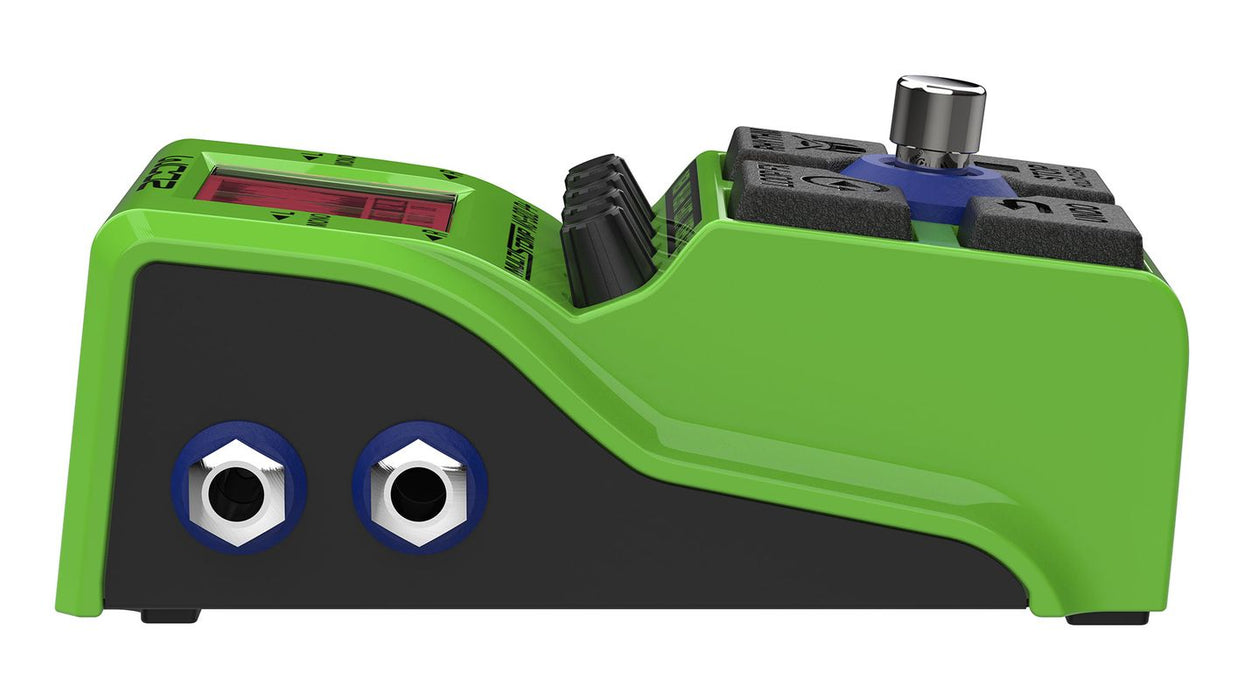

• Inputs    L/R : Standard mono phone jacks | Rated input level: -20 dBu | Input
• impedance (line): 470 kΩ

• Outputs    L/R : Standard mono phone jacks | Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)

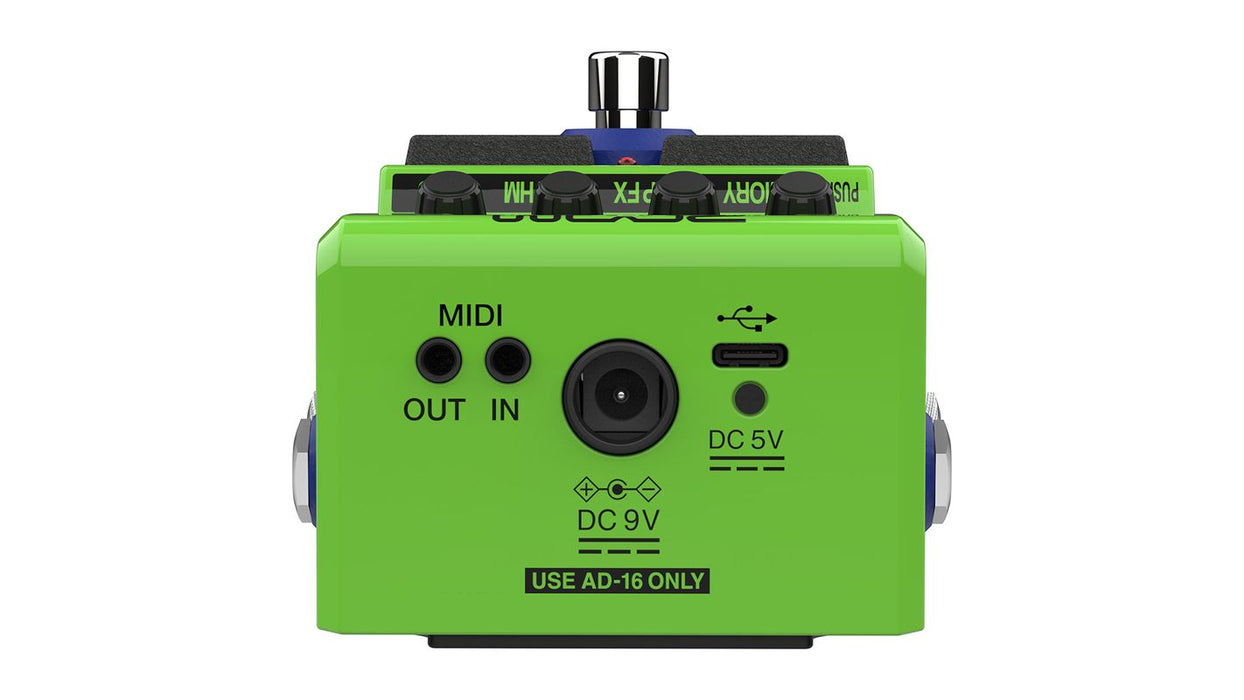

• MIDI IN/OUT jacks : Stereo mini jack

• Input S/N : 122 dB

• Noise floor (residual noise) : -100 dBu

• Power AC adapter : 9V DC 500mA center negative (ZOOM AD-16) | 2 AA batterie : Alkaline, Lithium or Rechargeable NiMH batteries | USB bus power is supported.

• USB Port : USB 2.0 Type-C | Supported cable type : Type-C | USB MIDI : USB1.1 Full Speed | File transfer : USB 2.0 High Speed/Use a USB cable that supports data transfer.

• Dimensions : 133 mm (D) x 79 mm (W) x 61 mm (H)

• Weight : 367 g
