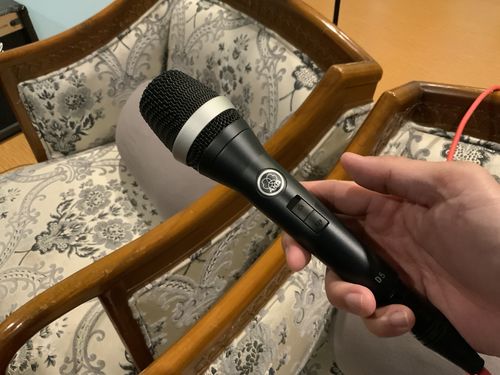

AKG D5 S Supercardioid Dynamic Vocal Microphone with On/Off Switch (D5S)

The D5S has the same mechanical, electrical, and acoustic characteristics as the D 5 and features a noiseless on/off switch. The D5S dynamic vocal microphone delivers a powerful sound even on the noisiest stage. A superb mic for lead and backing vocals. Its supercardioid polar pattern ensures maximum gain before feedback. The mic stands for a crisp sound that cuts through every mix.

The thickness of the microphone's diaphragm varies across its diameter. The Laminated Varimotion diaphragm deep-drawing process allows the diaphragm itself to be fine-tuned with no extra tuning resonators, leading to a quantum leap in audio performance.

The dual shock mount eliminates any kind of mechanical noise for trouble-free live use. The audience will hear nothing but the pristine sound of your voice!

FEATURES

• Frequency response optimized for vocal use
• Integrated wind and pop screen for effective suppression of pop and breath noise
• Frequency independent supercardioid polar pattern for high gain before feedback
• Patented AKG Laminated Varimotion diaphragm
• Shock mounted transducer element reduces handling and cable noise
• Extremely resilient, spring-steel wire-mesh cap for extra impact resistance
• Noiseless on/off switch

SPECIFICATIONS

• Polar pattern: supercardioid
• Frequency response: 70-20,000 Hz
• Sensitivity: 2.6 mV/pa (-52 dbV re 1 V/Pa)
• Maximum sound pressure level: 147/156 dB SPL, (for 1%/3% THD)
• Equivalent noise level: 18 dB-A
• Signal/noise ratio (A-weighted): 76 db
• Impedance: <=600 ohms
  Recommended load impedence: >=2000 ohms
• Connector: 3-pin XLR
• Finish: matte grayish blue
• Dimensions (length x diameter): 7.3" x 2.0", (179.1 mm x 51 mm)
• Net weight: 8.2 oz, (340 g)
• Patent(s): Varimotion ” multiple-thickness diaphragm for dynamic transducer (Patent no. AT 403.751, US 6,185,809, EP 814.637) (DE, DK, FI, FR, GB, IT, NL)
• Standard furnished: microphone bag, SA 45 stand adaptor
