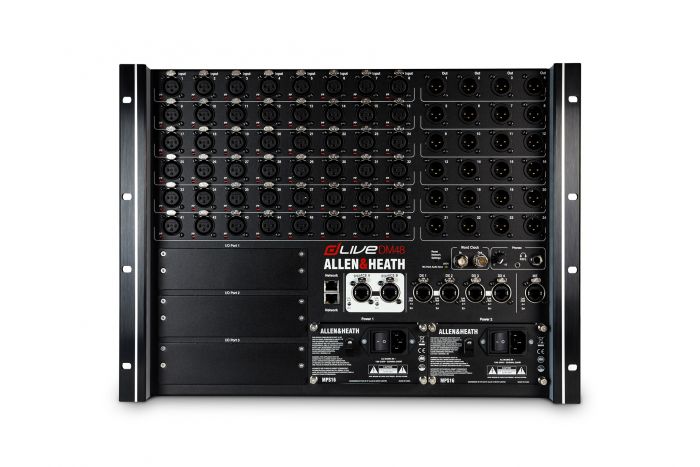

Allen & Heath dLive DM48 MixRack (DM-48)

The Allen & Heath dLive DM48 MixRack is tailor-made for mixing in large live venues, thanks to staggering levels of I/O and an extensive array of processing tools. The DM48's tremendously powerful XCVI Core features six parallel mix engines, providing you with enough horsepower for 160 x 64 channels of processing at 96kHz, consisting of 128 live inputs, a configurable 64-bus architecture, and 16 stereo effects returns. Speaking of effects - the DM48 incorporates Allen & Heath's DEEP technology, giving you a vast assortment of EQs, compressors, and FX emulations to liven up your mixes. As the brain of an Allen & Heath dLive digital mixing system, the DM48 MixRack delivers the power and performance you need!

FEATURES

• 48 mic/line inputs, 24 line outputs
• XCVI 160×64 FPGA core96kHz sample rate
• Variable bit-depth for ultimate precision and noise performance
• Virtually infinite mix headroom thanks to 96bit accumulator
• Class leading, ultra-low latency < 0.7ms
• 128 Input Channels with full processing
• 64 Mix Outputs with full processing
• Configurable 64 bus architecture (group, FX, aux, matrix, mains)LR, LCR and up to 5.1 mains mode
• Multiple PFLs
• 16 RackExtra FX with dedicated stereo returns
• 16 DCAs
• Built-in signal generator and RTA
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones

SPECIFICATIONS

• Type:Digital Stage Box Mixer
• Compatibility:dLive Surface
• Channels:128 total input channels (48 x 24 immediate I/O)
• Inputs - Mic Preamps:48 x XLR (mic/line)
• Phantom Power:48 channels
• Data I/O:2 x EtherCon (GigaACE links), 4 x EtherCon (DX redundant), 2 x Ethernet RJ-45 (network), 1 x EtherCon (ME-1)
• Busses/Groups:64 bus
• Computer Connectivity:Ethernet
• Word Clock:In/Out
• I/O Expansion Slots:3 x slots (MADI, Dante, Waves, ACE, SoundGrid)
• Headphones:1 x 1/4", 1 x 1/8"
• EQ Bands:Parametric, Graphic
• Effects:16 RackExtra FX library
• Signal Processing:Dynamics
• Software:dLive Editor
• Rackmountable:Yes
• Power Source:Dual redundant, hot swappable power supply
• Height:14.5" (including foot risers)
• Depth:12.3"
• Width:19"
• Weight:39 lbs.
