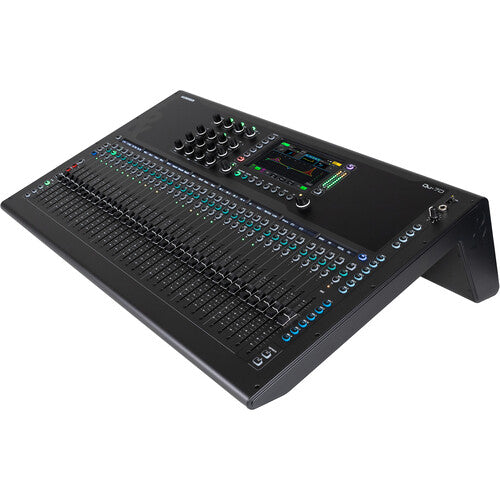

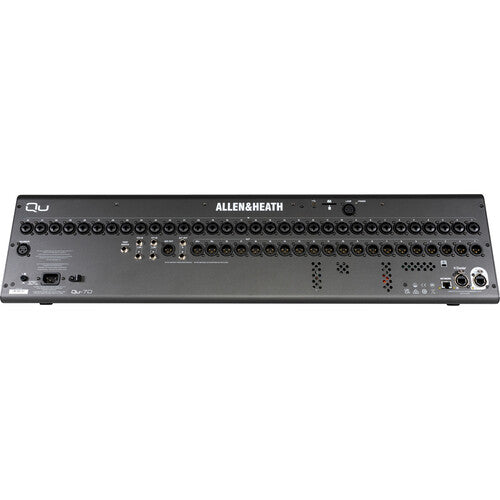

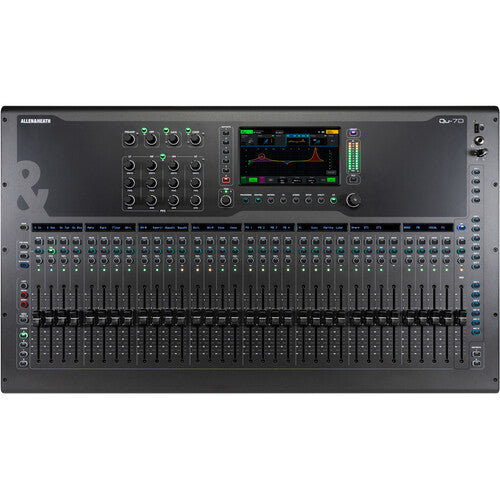

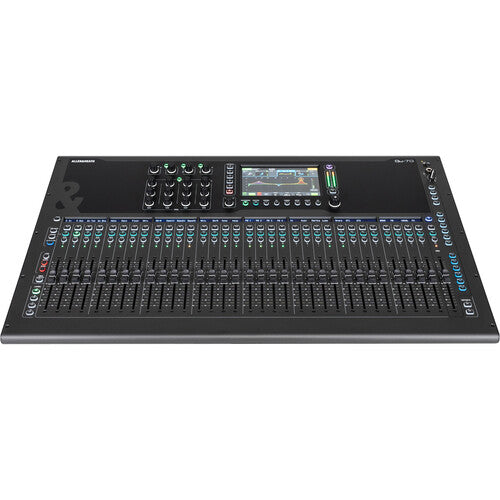

Allen & Heath Qu-7D 38-channel Digital Mixer with Dante

Blending the svelte form factor of the Qu-32 with the power of Allen & Heath's advanced XCVI processing, the Qu-7D redefines what's possible in a compact digital mixer. This cutting-edge, 38-in/24-out, 96kHz console delivers exceptional performance with six studio-grade Multi-FX engines, each with dedicated returns, and versatile Everything I/O connectivity. At the heart of the Qu-7D is a vibrant 7-inch capacitive touchscreen, enhanced by vivid channel strip displays, four user-definable layers, and eight programmable SoftKeys, offering intuitive control at your fingertips. Additionally, this mixer houses 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth that elevates any live mix. Hands-on control abounds, thanks to 33 smooth 100mm motorized faders and a thoughtfully designed interface. Moreover, the Qu-7D's USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback, with or without a computer. You also get a 16-in/16-out Dante interface for seamless integration into AoIP networks. Built to handle the demands of modern live sound production, the Allen & Heath Qu-7D empowers you to unlock the full potential of digital mixing, setting a new benchmark in its class.

FEATURES

• Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32's svelte form factor with advanced XCVI processing
• 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
• Versatile Everything I/O connectivity ensures maximum flexibility and expandability
• Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
• Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
• 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
• 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
• 33 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
• USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
• 16-in/16-out Dante interface gives you seamless integration into AoIP networks
• Built to handle the demands of modern live sound production

SPECIFICATIONS

• Type:Digital Mixer
• Channels:38
• Inputs - Mic Preamps:32 x XLR (mic/line)
• Mic Inputs:32
• Phantom Power:32 Channels
• Inputs - Other:4 x 1/4" (2 Stereo In)
• Outputs - Main:2 x XLR (left, right)
• Outputs - Direct:18 x XLR
• Outputs - Other:2 x 1/4" (alt)
• Outputs - Digital:1 x XLR (AES/EBU)
• Talkback:1 x XLR
• Data I/O:1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
• Headphones:1 x 1/4"
• USB:1 x USB-A, 1 x USB-C
• Computer Connectivity:USB-C (32x32)
• Remote:1 x Footswitch
• Faders:33 x 100m Motorized Faders
• A/D Resolution:96kHz
• EQ Bands:4-band parametric
• Features:96kHz FPGA Core
• Screen:7" Capacitive Touchscreen
• Storage:SD card slot
• Software:Remote control via free apps - Windows/MacOS/iOS/Android
• Power Source:IEC Main Connection w/Worldwide PSU
• Height:8.3"
• Depth:18.7"
• Width:31.5"
• Weight:36.8 lbs.
