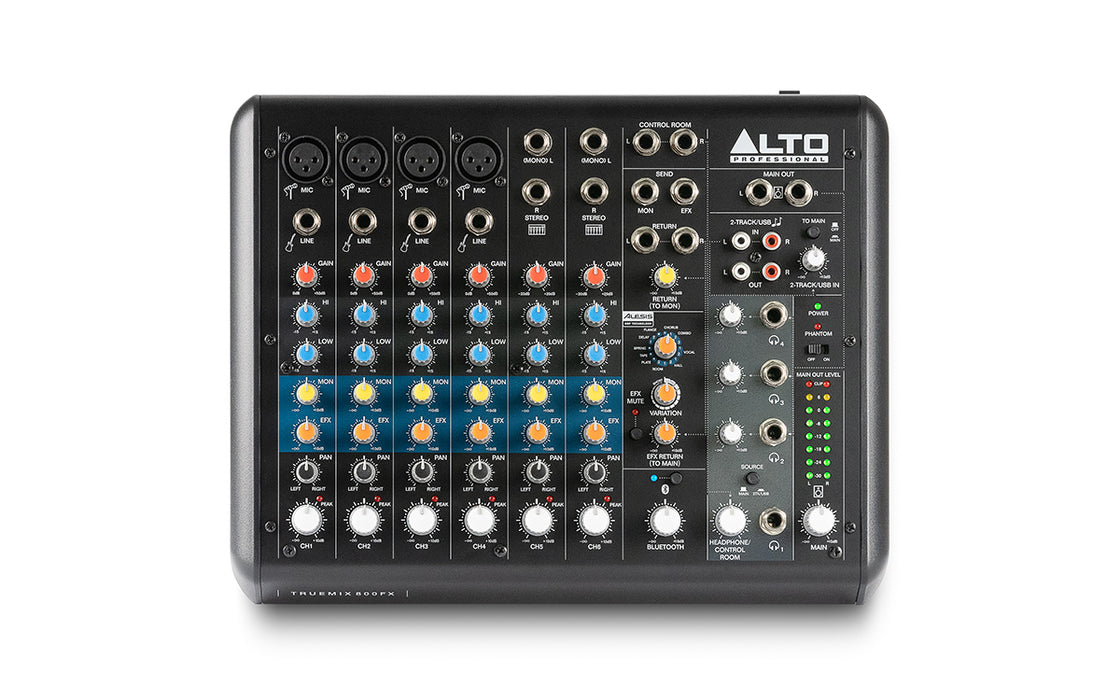

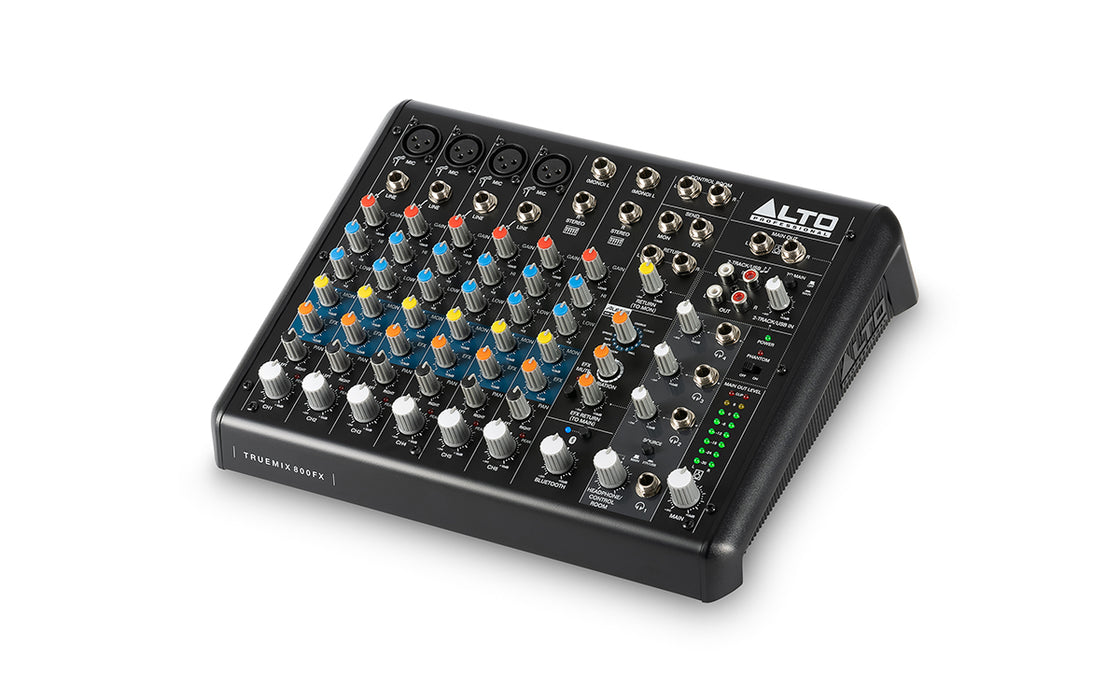

Alto Professional TrueMix 800FX 8-channel Analog Mixer with Multi-FX

The Alto Professional TrueMix 800FX 8-channel analog mixer delivers simple and effective audio mixing to your workspace with built-in effects and audio shaping tools. Given its USB I/O interface, four microphone inputs with 48V phantom power, two stereo input channels, and 2-track inputs, you’ll enjoy versatile and simplistic mix control among a wealth of instruments, vocals, and more. Each of the eight channels is loaded with a 2-band EQ, gain, and panning control. Additionally, Main, Tape, and auxiliary outputs are available to facilitate your volume based on your specific gear. Found yourself at a darker venue? No worries: the Power, Peak, Phantom, Bluetooth, and Main Out meter LEDs will ensure you’ve still got a gauge on your audio. Likewise, the onboard eight-segment LED VU meter will ensure you’re given sight of your output in even the toughest working environments. Topped off with a portable 305mm by 238.5mm construction, it’s no wonder so many audio professionals choose to keep a TrueMix 800FX in their go bag.

FEATURES

• High-performance 8-channel tabletop mixer — perfect for home studios and mobile projects
• Intuitive USB I/O provides simplistic connections and expansive application options
• 48V phantom power mic input channels
• Dual stereo input with balanced 1/4-inch TRS jacks
• Individual 2-band EQ control on every channel
• Assignable routing on 2-track inputs provides enhanced flexibility — Main Mix or Headphone Out
• Power, Peak, and Main Out meter LED indicators
• 16 built-in Alesis effects, including chorus, delay, reverb, flange, and more
• Onboard LED VU meter for consistent output monitoring
• Main, Tape, and Headphone 1/4-inch outputs
• Rugged build provides solid, portable performance

SPECIFICATIONS

• Type: Analog Mixer with USB Interface
• Channels: 8
• Computer Connectivity: USB
• A/D Resolution: 16-bit/48kHz
• Faders: 6 x Channel Level Knob, 1 x BT Level Knob, 1 x Headphone Level Knob, 1 x Master Level Knob
• Inputs - Mic Preamps: 4 x XLR
• Phantom Power: Yes
• Inputs - Line: 8 x 1/4" TRS
• Inputs - Other: 1 x Dual RCA Stereo
• Outputs - Main: 2 x 1/4" TRS (main), 2 x 1/4" TRS (control room)
• Outputs - Direct: 2 x 1/4" TRS (aux return)
• Outputs - Other: 1 x Dual RCA Stereo
• Aux Sends: 1 x 1/4" TRS (mon), 1 x 1/4" TRS (efx)
• Headphones: 4 x 1/4" TRS
• USB: 1 x Type B (2.0)
• Bluetooth: v5.0
• EQ Bands: 2-band
• Effects: Reverb, Delay, Chorus, Flanger
• OS Requirements - PC: Windows 10, 11

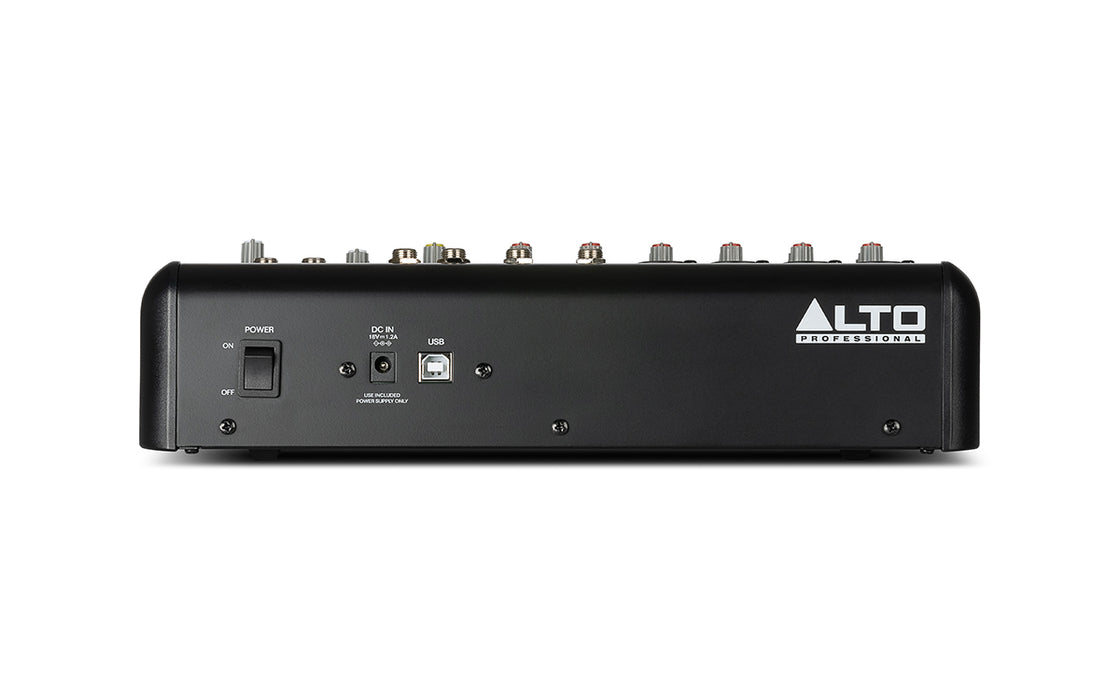

• Power Source: 18V DC Power Supply (included)
• Height: 3.1"
• Width: 12.0"
• Depth: 9.4"
• Weight: 4.5 lbs
