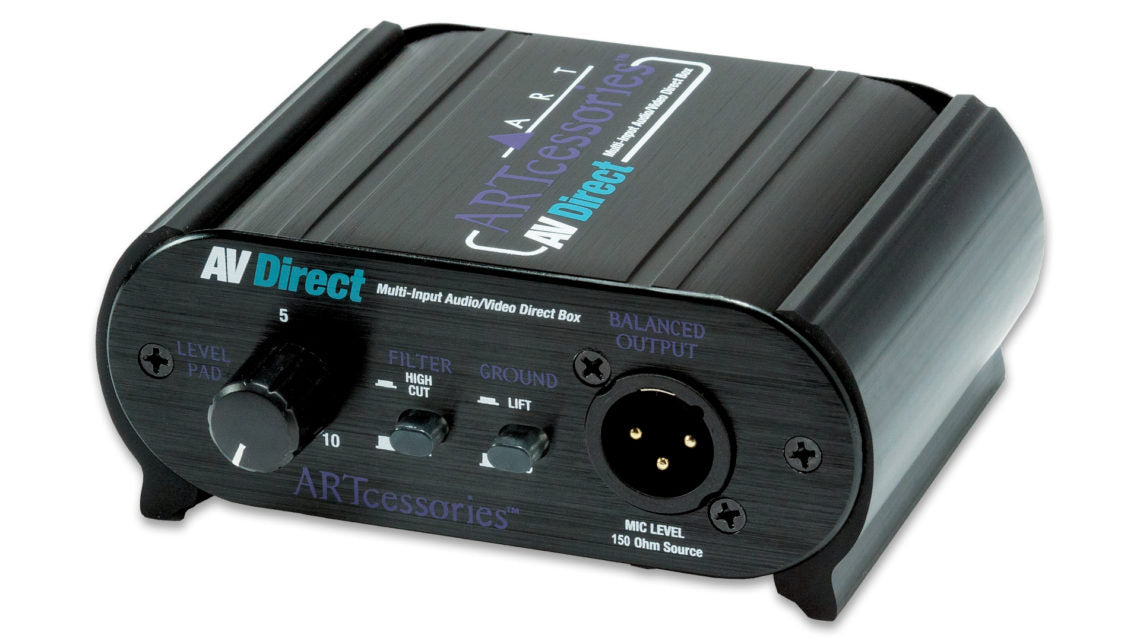

ART AVDirect 1-channel Passive, Multiple Input Direct Box

The AV Direct from ART is a multi-purpose tool that allows you to plug in virtually any sound source to an XLR input. The AV Direct is the ideal input solution for any application where stereo iPods, Laptop computers, consumer DVD players, consumer HiFi equipment, or video machines have to be connected to a single XLR microphone level input. Unlike standard gender bender cables or DI boxes, the AV Direct can accept virtually any input connection and output level (including amplified speaker outputs) and offers remote level control, ideal for setting the volume of your component at the source. Since you never know what might get thrown your way, every engineer needs an AV Direct in their toolbox!

FEATURES

• Transformer isolated XLR microphone level output
• 20 to 20,000Hz Frequency Response
• Stereo RCA, 1/8th-inch & 1/4-inch TRS line level inputs
• 1/4-inch & Pressure Clip Speaker level inputs
• Variable Level Control
• Switchable 4.8kHz high-cut (lowpass) filter
• Ground Lift
• Balanced 150 ohm output

SPECIFICATIONS

• Type:DI
• Channels:1
• Pads:-5dB, -10dB
• Ground Lift:Yes
• Inputs:2 x RCA, 1 x TRS, 1 x 1/8" stereo, 1 x TS speaker level, 2 x binding post speaker level
• Outputs:1 x XLR
• Height:1.85"
• Width:4.6"
• Depth:3.9"
• Weight:0.84 lbs.
