ART MX524 Stereo Zone Mixer (MX-524)

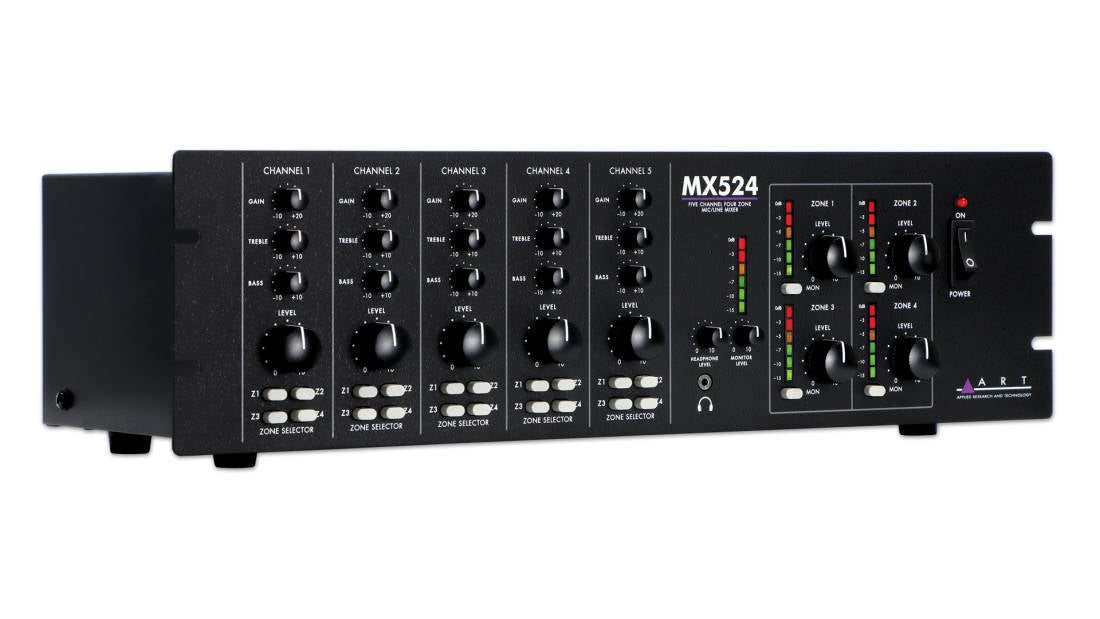

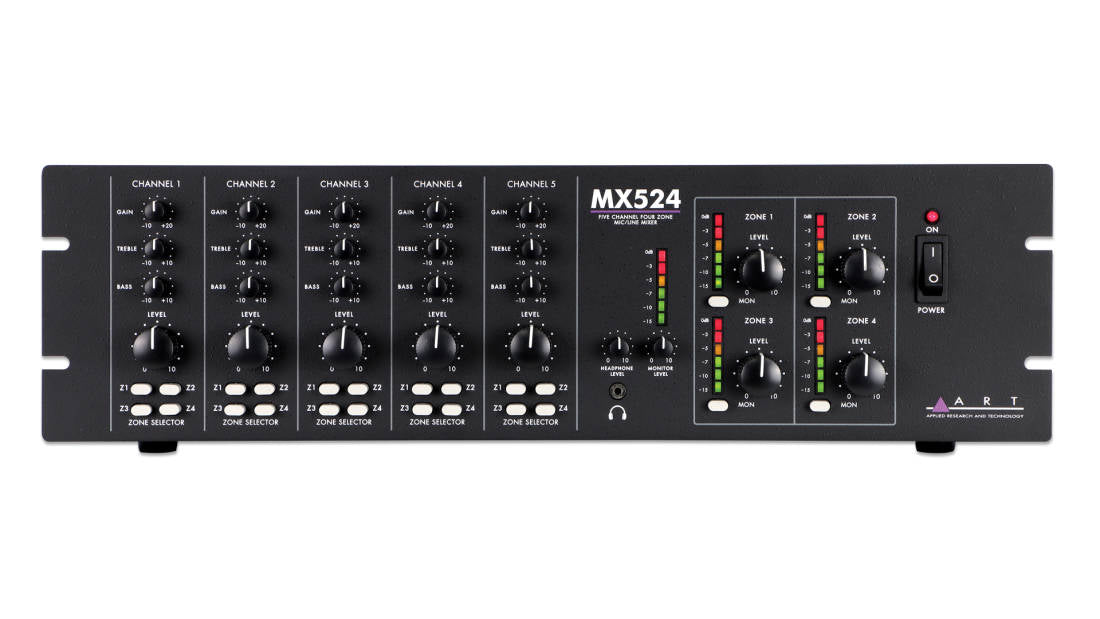

With five input channels and four output zones, the MX524 is our most fully-featured zone mixer. Four channels feature combo inputs for XLR or 1/4” connections, and switchable phantom power for condenser microphones. The fifth channel offers RCA line inputs. All channels have controls for input gain and output level as well as two-band EQ, and can be assigned to any or all of the zones. Each zone has an independent level control, and any combination of zones can be monitored by headphones or the line out terminals.

When a signal is detected on the first input, the other channels will automatically lower in volume so that announcements can be clearly heard throughout a venue. Rear terminal connections also allow the connection of an auxiliary telephone signal for paging. Flexible and easy to use, the MX524 is an ideal solution for distributed audio in restaurants, conference rooms, houses of worship, and more.

FEATURES

• Five input channels with individual level controls using XLR/Phono jacks with master level, bass and treble controls

• Balanced Mic/Line XLR inputs for channels one thru four

• Full +48V low-noise phantom power for channels one thru four mic inputs

• Front panel 1/8-inch stereo (TRS) mini-phone plug for Headphone monitoring

• Four sets of Euro Bloc connectors for the Zone outputs

• Telephone paging function

• DC power back up

• Separate monitor outputs

• LED VU meter on all outputs

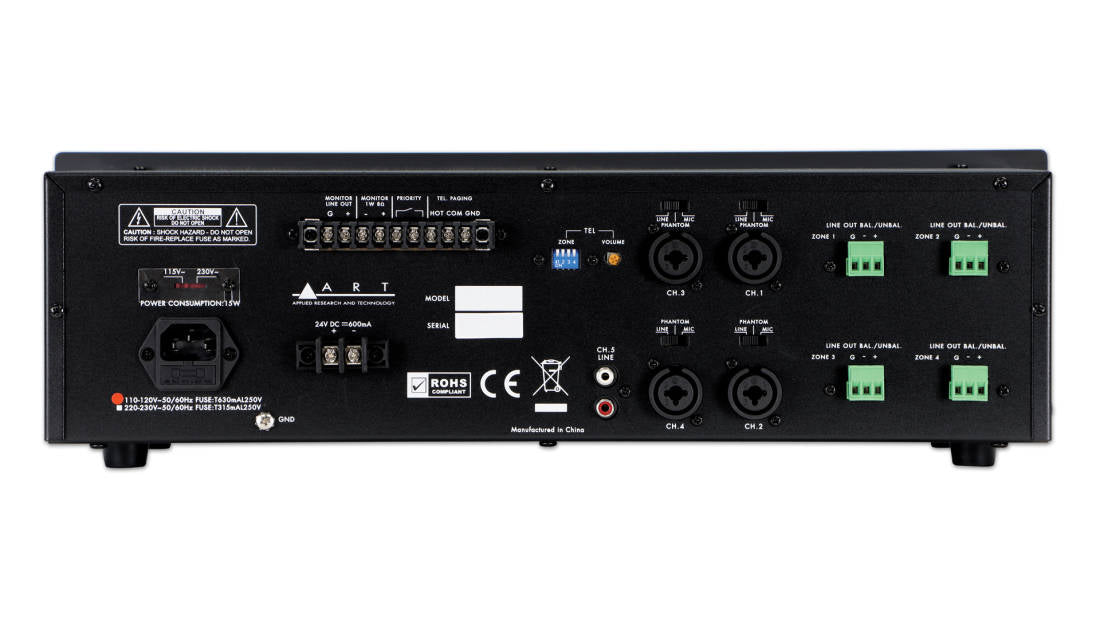

• Rear mount RCA Line inputs for additional audio inputs

• Rugged 3U rack-mount steel chassis with built-in power supply

• Perfect for stage, studio and permanent installations

SPECIFICATIONS

• Inputs : XLR / 1/4 Combo Jacks, RCA

• Outputs : Euroblock, Screw terminals

• Input Impedance    Microphone input: 1.4k Ω | All other inputs 10k Ω or greater

• Output Impedance : Zone outputs 120 Ω | Monitor Speaker output 8 Ω | Monitor Line output 120 Ω

• Maximum Gain : 60 dB CH MIC. Input Main out (XLR, balanced) | 50 dB CH MIC. Input & REC. out (unbalanced) | 60 dB CH MIC. Input Mono out (unbalanced)

• Frequency Response : 20 Hz – 22 kHz (± 2 dBu)

• Total Harmonic Distortion : <0.03% @1 kHz

• Phantom Power : 15 VDC

• Power Requirements : 110~120 VAC 50/60 Hz or 24 VDC

• Dimensions (HWD) : 5.1" x 19" x 7.5" (13.0 cm x 48.3 cm x 19.1 cm)

• Weight : 6.63 lbs. / 3.0 kg

• Note : 0 dBu = 0.775Vrms
