Audient EVO Start Recording Bundle - 2x2 USB/iOS Recording System (EVO4/EVO 4)

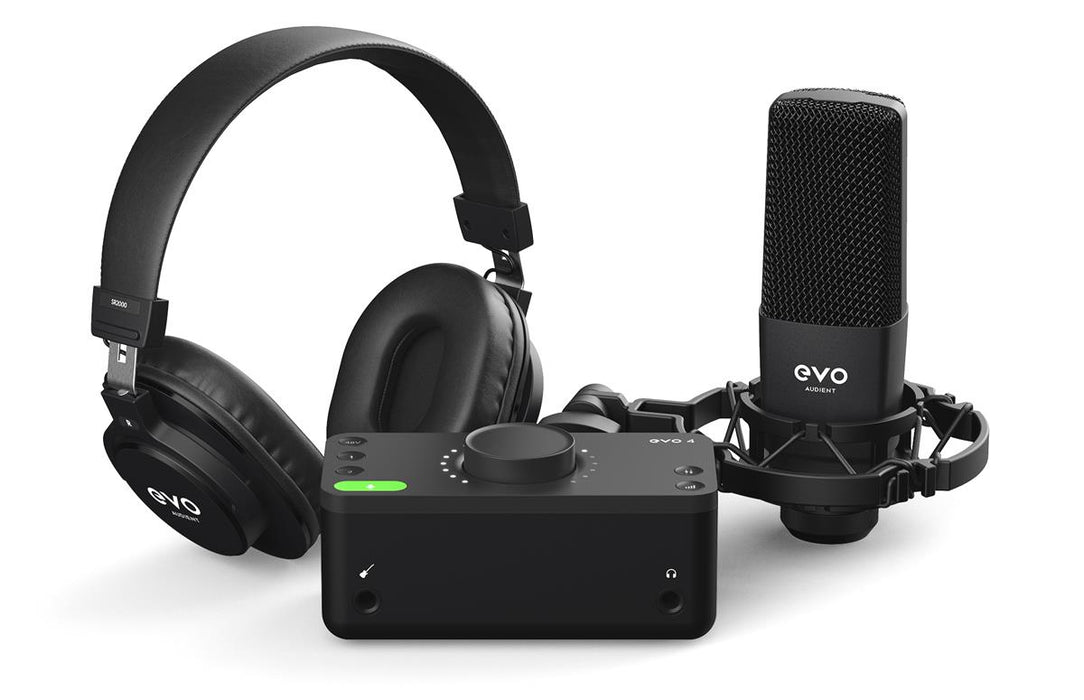

Arguably, we’re living in a new Golden Age of recording, with unprecedented access to great-sounding recording gear at affordable prices like never before. Audient has embraced this sea change, challenging what artists should expect from their gear through constant innovation and superior quality. The Audient EVO Start Recording Bundle is a value-packed entry into the world of audio production, arming you with the outstanding EVO 4 audio interface, a detailed SRI condenser microphone, and a set of excellent SR2000 headphones. You also get a shockmount, cables, and a well-rounded software package to get you up and running fast. If you're ready to plunge into home recording, there isn't a better first purchase than the Audient EVO bundle.

VIDEO

FEATURES

• 2 x EVO Mic Pres
• Designed to sound clean, detailed and accurate
• Class Leading Converters
• Hear your audio more accurately
• Smartgain
• Dial in your channels automatically
• Smart Touchpoints
• Intuitive and fast control at your fingertips
• JFET Instrument Input
• Plug in guitars, basses, keyboards and more
• Speaker Outputs
• Plug in your speakers
• Headphone Output
• High performance headphone output
• Platform Compatible
• Compatible with Mac, Windows and iOS
• 1 x SR1 Condenser Microphone
• Capture every detail and nuance of your performance
• 1 x SR2000 Monitoring Headphones
• Make the right sonic decisions when recording and mixing.
• Monitor Mix
• Ultra-low latency when recording
• Monitor Pan
• Create better headphone mixes
• Audio Loop-back
• Record your computer audio simultaneously
• USB2.0 Bus Powered
• Power from your computer
• Phantom Power
• True Bus Powered +48v
• DAW Controlled Mic Pres
• Set levels using compatible software
• 24bit / 96kHz
• Stunning audio quality
• Free Software + Plugins
• All you need to start
• 1 x EVO Shockmount
• Reduce unwanted low frequencies and rumbles
• 1 x XLR Cable
• Minimise noise with a fully balanced XLR cable

SPECIFICATIONS

Microphone Preamplifier

• Mic Gain Range:
• 58dB
• Line Gain Range:
• 58dB (-10dB pad)
• Phantom Power:
• 48v +/-4v @ 10mA/Channel
• Mic EIN:
• CMRR:
• >85dB @ 1kHz
• Maximum Input Level:
• +16dBu
• Input Impedance (Mic):
• >3kΩ Balanced
• Input Impedance (Line):
• >10kΩ Balanced
• Frequency Response:
• +/-0.5dB 10Hz to 40kHz
• Crosstalk:
• THD+N @ 0dBu (1kHz):
• <0.0015%
• SNR:
• 100dB
• XLR:
• Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
• 1/4” Jack:
• TIP (Hot), RING (Cold) & SLEEVE (Shield)

• D.I Gain Range:
• 58 dB
• Maximum Input Level:
• +10dBu
• Input Impedance:
• 1MegΩ Unbalanced
• Frequency Response
• +/-0.5dB 10Hz to 20kHz
• THD+N @ 0dBu (1kHz):
• <0.3%
• SNR:
• 100dB
• 1/4” Jack:
• TIP (Hot) & SLEEVE (Shield)

ADC INPUTS

• Digital Reference Level:
• 0dBFS = +8dBu
• Frequency Response:
• +/-0.5dB 10Hz to Fs/2
• Crosstalk:
• -105dBu @ 1kHz & 10kHz
• THD+N @ -1dBFS (1kHz):
• <0.001%
• Dynamic Range:
• 113dB A-weighted

DAC OUTPUTS

• Maximum Output Level:
• +11dBu
• Digital Reference Level:
• 0dBFS = +11dBu
• Output Impedance:
• <100Ω Balanced
• Frequency Response:
• +/-0.5dB 10Hz to Fs/2
• Crosstalk:
• THD+N @ -1dBFS (1kHz):
• <0.0015%
• Dynamic Range:
• 113dB A-weighted
• 1/4” Jack:
• TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

• Output Impedance:
• <50Ω
• Frequency Response:
• +/-0.5dB 10Hz to Fs/2
• Crosstalk:
• -110dBu @ 1kHz
• THD+N @ -1dBFS (1kHz):
• <0.0015%
• Dynamic Range:
• 113dB A-weighted
• Max Level Into 30ohms:
• +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
• Max Level Into 60ohms:
• +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
• Max Level Into 600ohms:
• +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
• 1/4” Jack:
• TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:

(in to out)

DAW Playback Latency

@ 32 Sample Buffer for Software Instrument Playback

USB 2.0 High Speed

• No. Of Input Channels
• 2 Analogue
• No. Of Output Channels
• 2 Digital
• Connector:
• USB Type-C
• Included Cables:
• 1m USB 2.0 Type-C to USB Type-A

EVO SR1 Condenser Microphone :

• Element
• 14mm back electronic condenser capsule
• Polar Pattern
• Uni-directional(Super-cardioid)
• Frequency Response
• 20Hz-18kHz
• Sensitivity
• 30dB±3dB (0dB=1V/Pa at 1kHz)
• Output Impedance
• 150Ω±30% (at 1kHz)
• Load Impedance
• ≥1000Ω
• Self Noise
• 16dB A
• Max. Input SPL
• 134dB (at 1kHz ≤1% T.H.D)
• S/N Ratio
• 78dB
• Phantom Power Requirement
• 5V or 48V
• Electrical Current
• 3mA

EVO SR2000 Monitoring Heaphones :

• Operating Principle
• Closed
• Fashion
• Supra-aural
• Transducer Type
• Dynamic
• Loudhailer
• 40MM
• Impedance
• 32ohm
• Sensitivity/ Max. SPL
• 95±3dB/105±3dB
• THD
• <0.3%
• Frequency Response
• 15HZ-22KHZ
• Max. Power
• 400MW
• Rating Power
• 250MW
• Cable Type
• Straight
• Cable Length
• About 3M (straight)
• Plug
• 3.5MM+6.3MM
• Net Weight
• 233g(with cable)
• Norminal Headband Pressure
• Approx.2.8N
