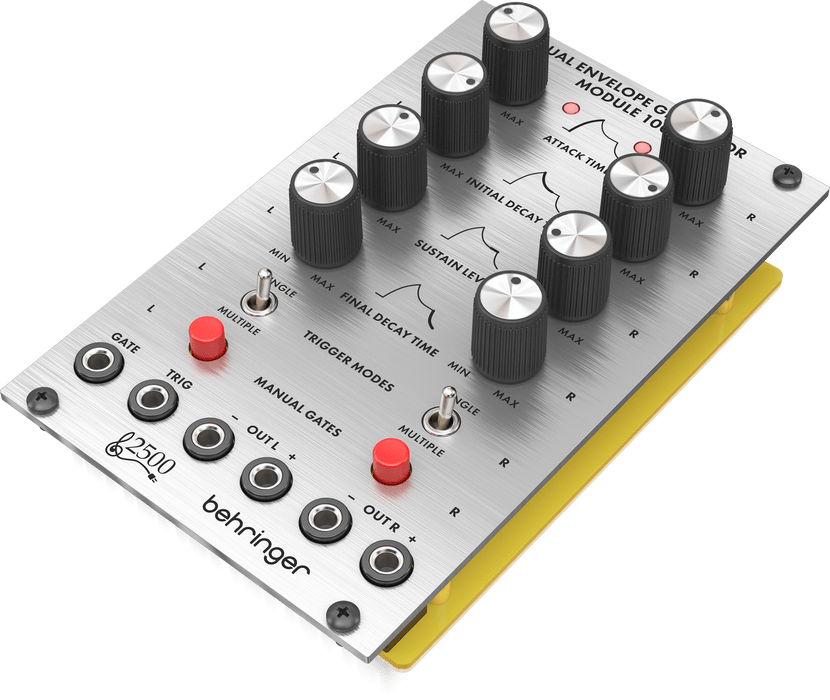

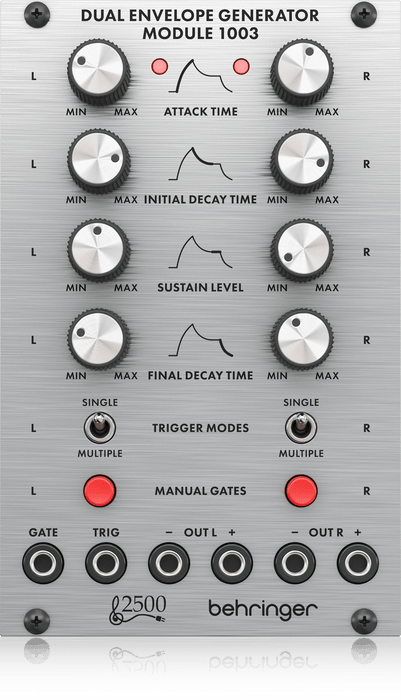

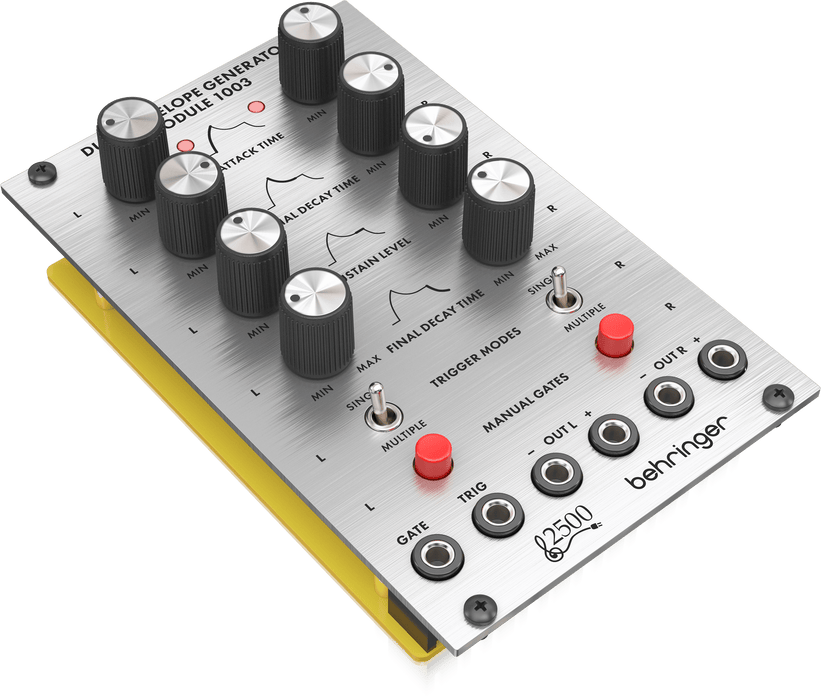

Behringer 1003 Dual Envelope Generator Eurorack Module

the Behringer 1003 Dual Envelope Generator offers a period-correct all-analog signal path for superior soundshaping. The 1003’s familiar four-section design includes attack time, initial decay time, sustain level, and final decay time – or release, in modern parlance. Yet, unlike the original, the 1003, along with all Behringer 2500 series modules, ditches the convoluted patch matrix for Eurorack patch points, allowing for more intuitive patch cable routing – an aspect synthesists at Music Bliss appreciate. The module features six patch points: gate and trigger inputs and four signal outputs, including two inverted outputs for added flexibility. Use the Behringer 1003 for crafting long amplitude or filter swells, snappy percussive hits, or impactful stabs, or use it to modulate pulse width, pitch, or numerous other parameters for advanced patch creation. With this well-priced Eurorack module, it’s easy and affordable to recreate one of the finest modular systems of all time, or integrate it along with any Eurorack devices for constructing an epic rig that combines vintage-style components with cutting-edge technology.

FEATURES

• Classic 1003 dual analog ADSR generator module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• Contains 2 identical envelope generators for creating control signals
• 4 adjustable parameters: Attack, initial Decay, Sustain, final Decay
• Each envelope is initiated by Gate and Trigger signals
• Switchable between 2 operating modes for added flexibility
• Single trigger mode uses only the gate signal to control the envelope
• Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present
• Manual gate operation via front panel push button with LED for gate signal indication
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

SPECIFICATIONS

• Inputs (Gate)
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : >35 kΩ
  - Gate threshold : +4 V
  - Max input level : +12 V


• Trig
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : >20 kΩ
  - Trigger threshold : +4 V
  - Max input level : +12 V


• Outputs (Out A)
  - Type : 2 x 3.5 mm TS jacks, DC coupled
  - Impedance : 1 kΩ
  - Max output level : -10 V or +10 V


• Out B
  - Type : 2 x 3.5 mm TS jacks, DC coupled
  - Impedance : 1 kΩ
  - Max output level : -10 V or +10 V


• Controls
  - Attack : 1 ms to 2 s
  - Initial decay : 5 ms to 7 s
  - Sustain : 0 to 10 V
  - Final decay : 6 ms to 8 s
  - Trigger modes : Single - gate controls envelope Multiple - trigger pulse + gate controls envelope
  - Manual gate : Envelope cycle start


• Power
  - Power supply : Eurorack
  - Current draw :40 mA (+12 V), 20 mA (-12 V)
