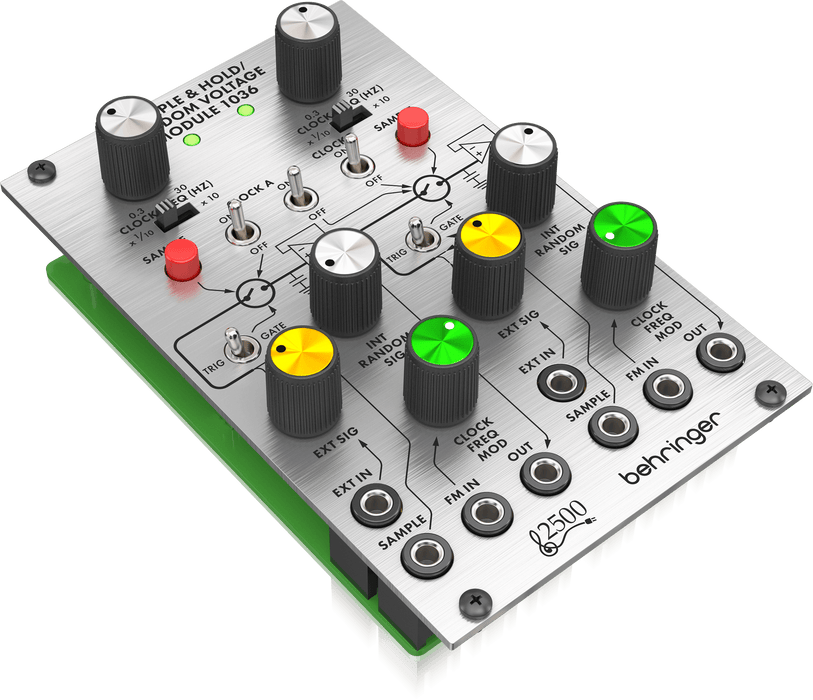

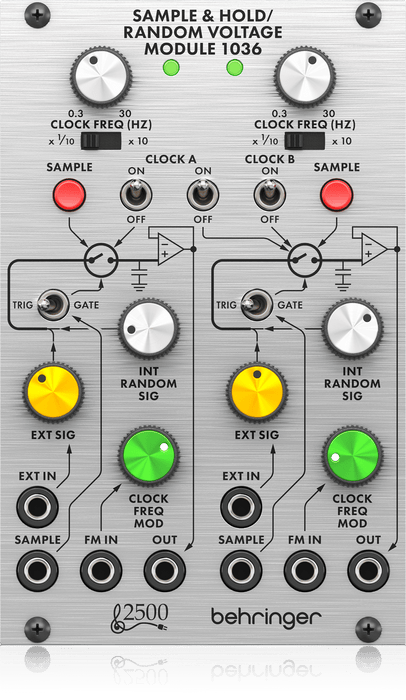

Behringer 1036 Sample & Hold / Random Voltage Module Eurorack Module

The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

FEATURES

• Classic 1036 analog dual sample and hold module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks
• Produces random tone sequences, scales and arpeggios
• Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources
• Clock Frequency control adjusts the frequency of each clock and the sampling rate
• Manual sample control is available using momentary push buttons
• Sampling can also be controlled externally via a trigger or gate signal using the external input connection
• An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

SPECIFICATIONS

• INPUT
  - FM in (Type) :2 x 3.5 mm TS jacks
  - Impedance : 50 kΩ, unbalanced
  - CV range : 0-10 V
  - Sample (Type) : 2 x 3.5 mm TS jacks
  - Impedance : 10 kΩ, unbalanced
  - Max input level : 5 V
  - Ext in (Type) : 2 x 3.5 mm TS jacks
  - Impedance : 25 kΩ, unbalanced
  - Max input level : 10 V


• OUTPUTS
  - Out (Type) : 2 x 3.5 mm TS jacks
  - Impedance : 1 kΩ, unbalanced
  - Max output level : 10 V


• CONTROL
  - Clock freq : 0.3-30 Hz
  - Clock range : Clock value factor of x0.1 or x10
  - Clock on/of : Engage pulse generators
  - Sample : Generate sample command
  - Trig/gate : Selects sample (trig) or continues sample (gate)
  - Int random sig : 0 to ±7 V


• Power
  - Power supply : Eurorack
  - Current draw : 40 mA (+12 V), 40 mA (-12 V)


• PHYSICAL
  - Dimensions : 43 x 81 x 129 mm (1.7 x 3.2 x 5.1")
  - Rack units : 16 HP
  - Weight : 0.18 kg (0.4 lbs)
